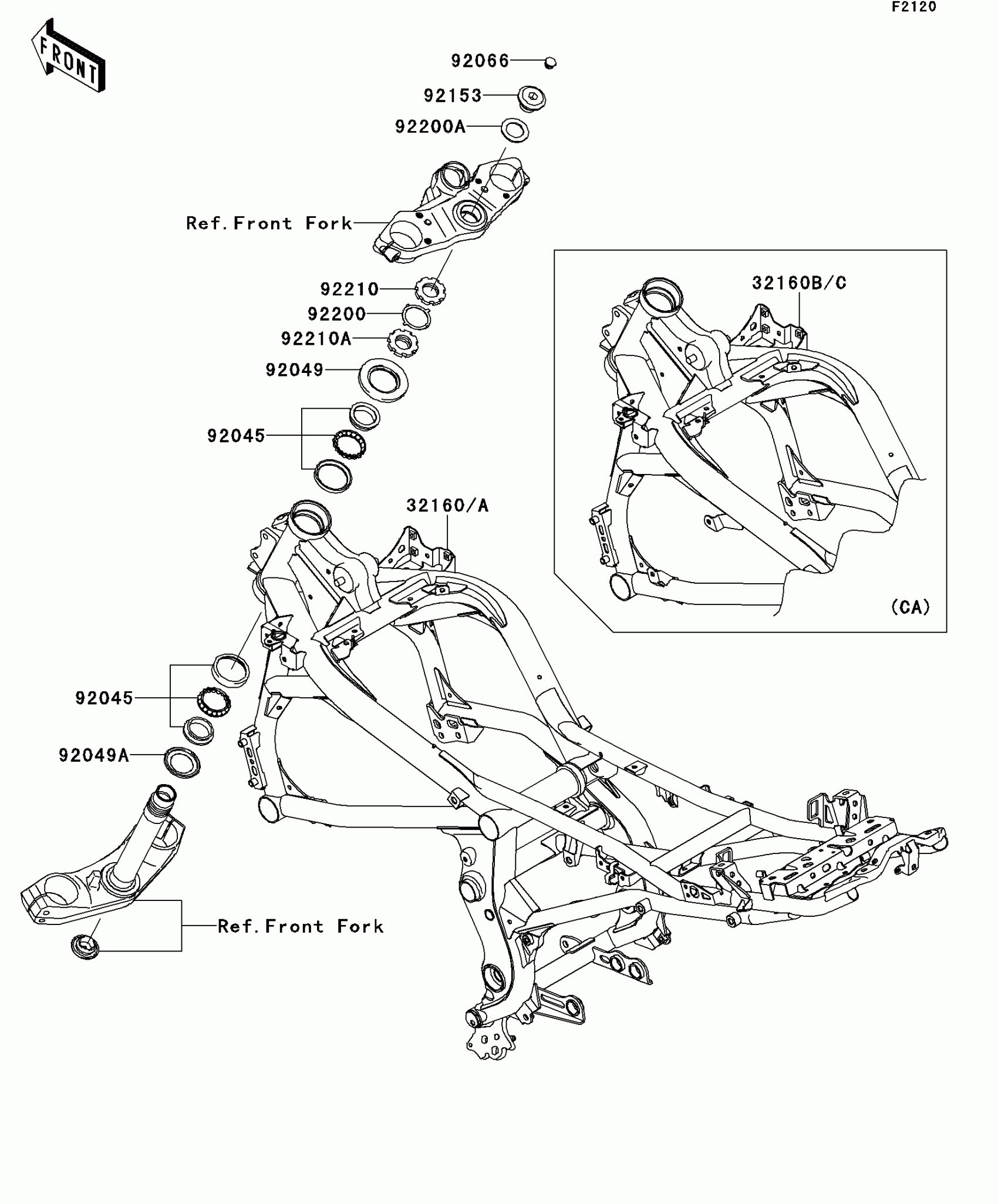

2010 Kawasaki Versys® Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

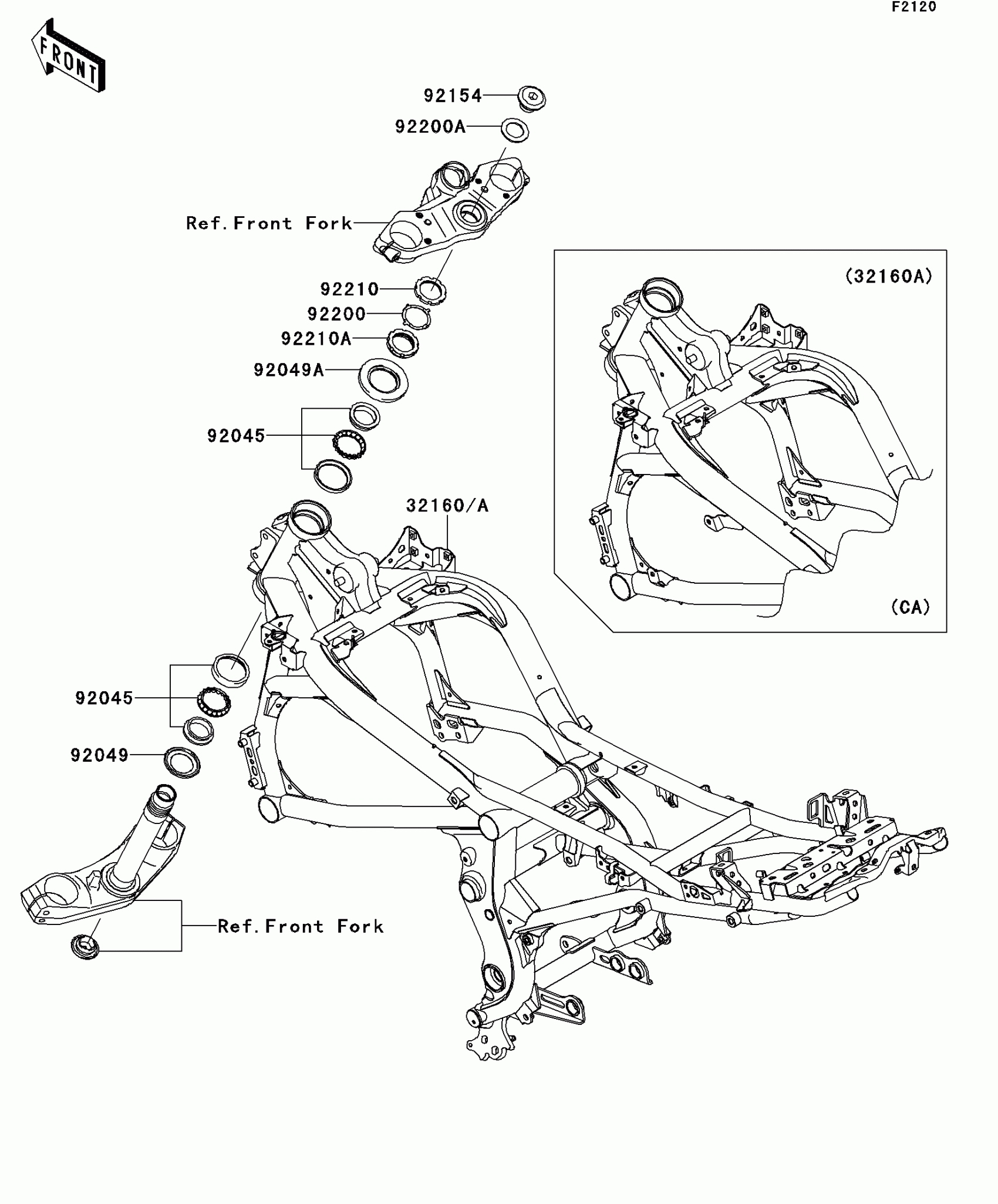

2010 Kawasaki Versys® Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.M.GRAY

32160-0435-26M

1

$1,890.52

In stock

32160A

FRAME-COMP,F.M.GRAY

32160-0437-26M

1

$1,832.98

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92154

BOLT,SOCKET,26X18

92154-0290

1

$35.36

In stock

92200

WASHER

92200-0281

1
Out of stock

92200A

WASHER,27X42X2.3

92200-0537

1
Out of stock

92210

NUT,STEERING STEM,35MM

92210-0578

1
Out of stock

92210A

NUT,STEERING STEM,35MM

92210-0579

1
Out of stock
