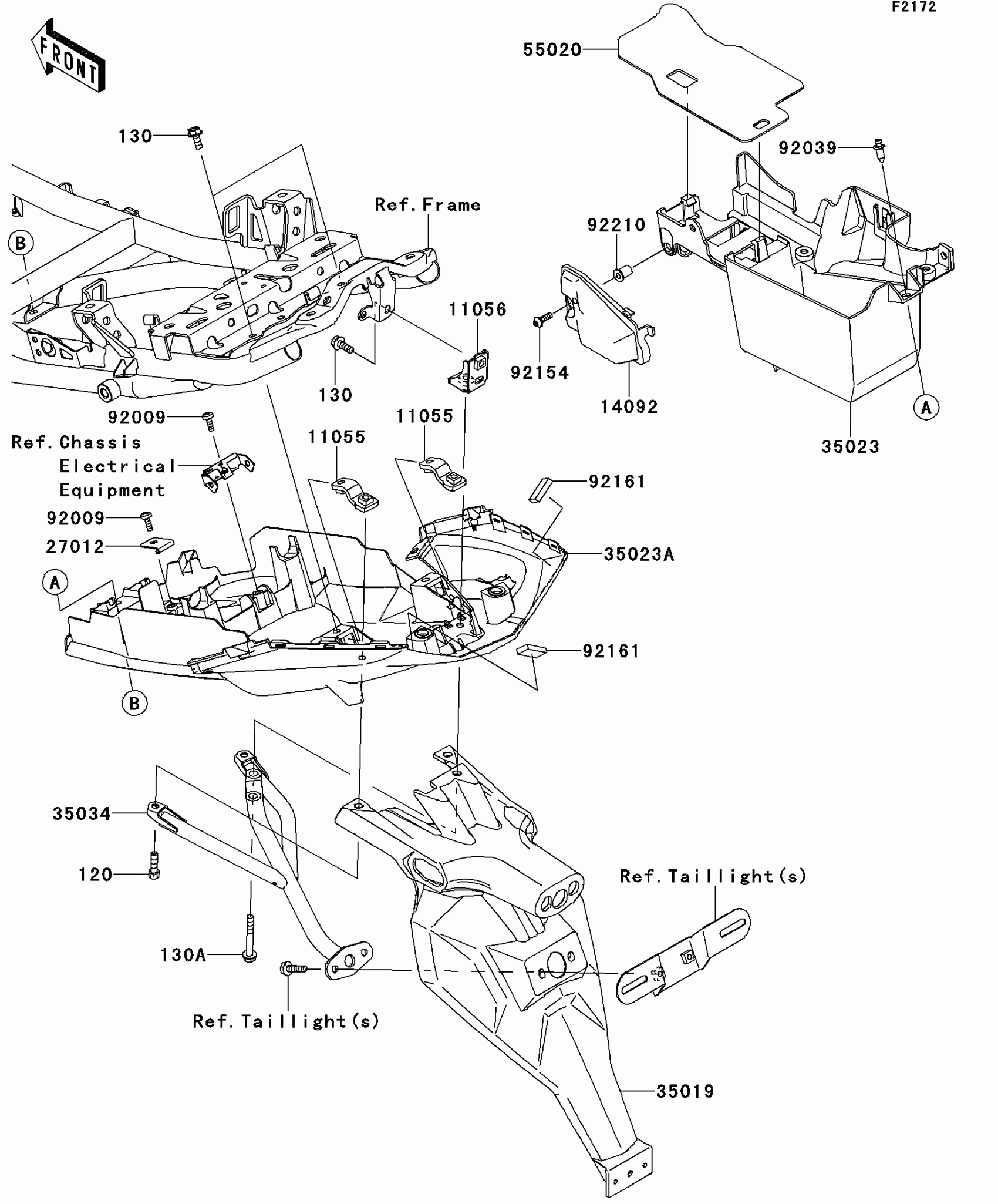

Find the part on the Rear Fender diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Versys® Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,FLAP,RR,L&R

11055-1873

1

$9.12

In stock

11056

BRACKET,FLAP,RR,CNT

11056-0236

1

$7.46

In stock

14091

1

$8.37

In stock

27012

HOOK,BATTERY CASE

27012-1316

1

$10.58

In stock

35019

FLAP,RR FENDER

35019-0102

1

$80.20

In stock

35023

FENDER-REAR,FR

35023-0163

1

$33.43

In stock

35023A

FENDER-REAR,RR

35023-0196

1

$72.45

In stock

35034

REINFORCE

35034-0116

1
Out of stock

55020

GUARD,HEAT

55020-0555

1

$22.36

In stock

92009

SCREW,6X14

92009-3845

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-1283

1

$2.29

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92161

DAMPER

92161-0717

1

$0.86

In stock

120

BOLT-SOCKET,6X22

120CA0622

1

$1.73

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X45

130BB0645

1

$4.15

In stock
