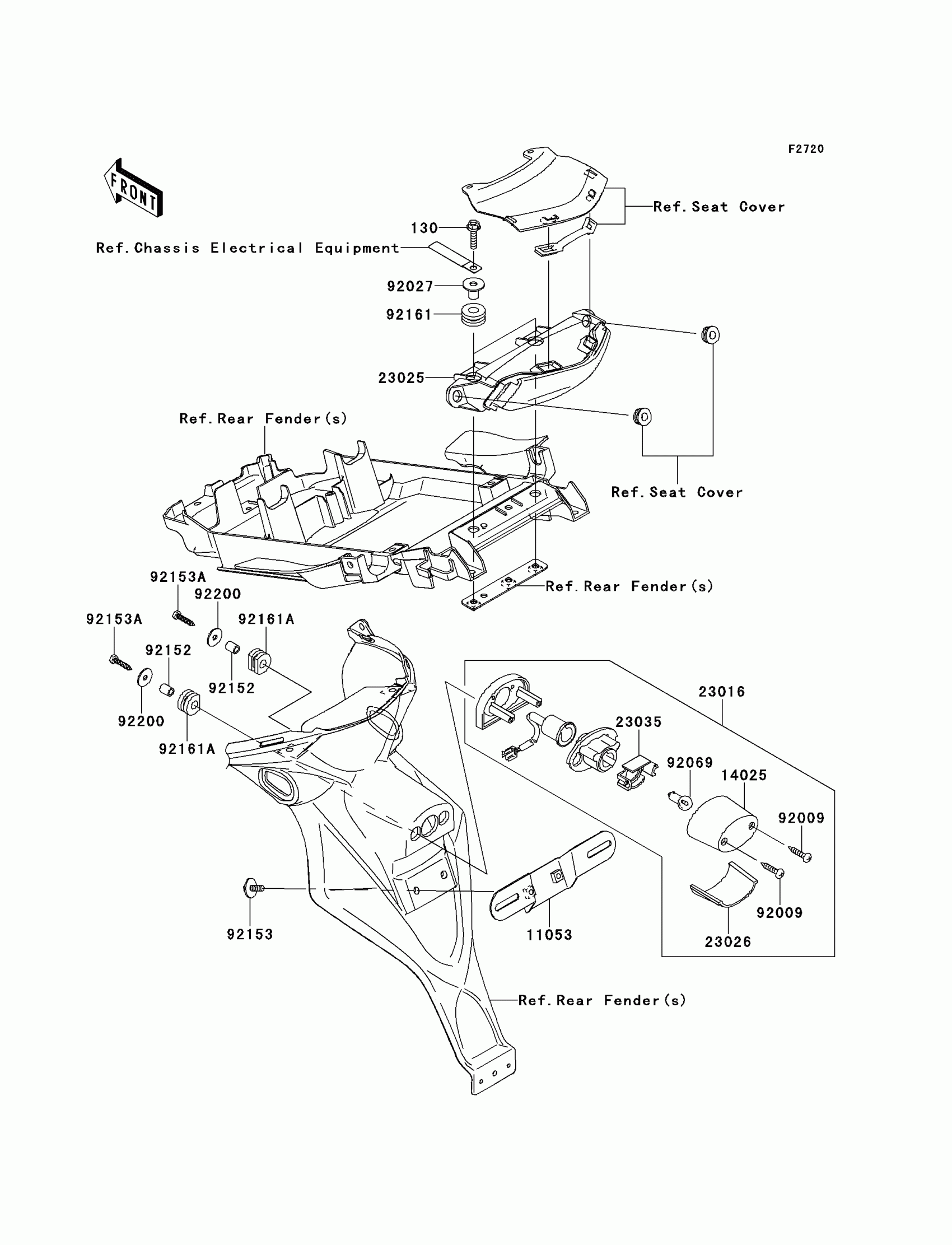

Kawasaki VERSYS® (European) Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$1.84

11053

BRACKET,LICENSE

11053-0400

$12.55

14025

COVER,LICENSE LAMP

14025-1725

$17.20

23016

LAMP-ASSY,LICENSE

23016-0003

$70.19

23025

LAMP-TAIL

23025-0048

$238.85

23026

LENS,LICENSE LAMP

23026-1064

Unavailable

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$17.92

92009

SCREW,TAPPING,4X20

92009-1378

$3.68

92027

COLLAR,L=16.1

92027-1847

$4.67

92069

BULB,12V 5W

92069-1055

$3.95

92152

COLLAR,6X9X11.5

92152-0372

$2.15

92153

BOLT,6X16

92153-0684

$3.42

92153A

BOLT,TAPPING,5X25

92153-1424

$0.97

92161

DAMPER

92161-0163

$4.39

92161A

DAMPER

92161-1313

Unavailable

92200

WASHER,5.5X20X1.2

92200-0284

$1.57
