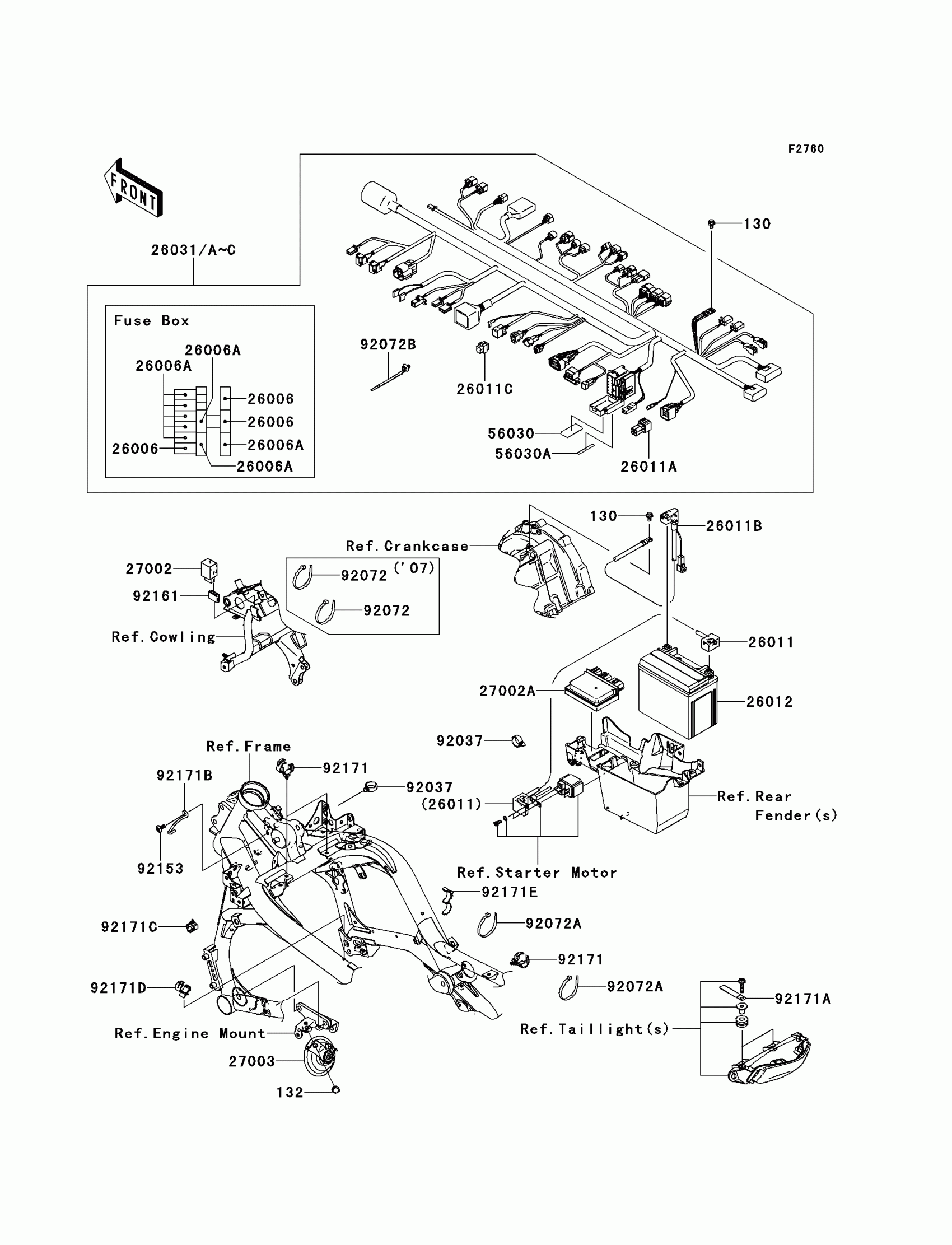

Kawasaki VERSYS® (European) Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$0.97

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.54

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,BATTERY(+)

26011-0073

$39.65

26011A

WIRE-LEAD

26011-0082

$23.49

26011B

WIRE-LEAD,BATTERY(-)

26011-0099

$31.36

26011C

WIRE-LEAD,SENSOR CONNECTOR

26011-0101

$14.53

26012

BATTERY,YTX12-BS,12V 10AH

26012-0094

Unavailable

26031C

HARNESS,MAIN

26031-0707

$788.39

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$55.88

27002A

RELAY-ASSY

27002-0007

Unavailable

27003

HORN

27003-0051

Unavailable

56030

LABEL,FUSE BOX

56030-0046

$5.14

56030A

LABEL,FUSE BOX

56030-0098

$3.64

92037

CLAMP,HOSE

92037-1827

$5.69

92072A

BAND,L=365

92072-1197

$7.71

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92153

BOLT,SOCKET,6X14

92153-1446

$1.57

92161

DAMPER,SIGNAL RELAY

92161-0283

$2.42

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92171A

CLAMP,L=60

92171-0652

$1.85

92171B

CLAMP,HARNESS

92171-0657

$7.95

92171C

CLAMP,13MM DIA.

92171-1415

$1.69

92171D

CLAMP,DIA=15

92171-1424

$3.19

92171E

CLAMP,25MM DIA.

92171-1559

$5.39
