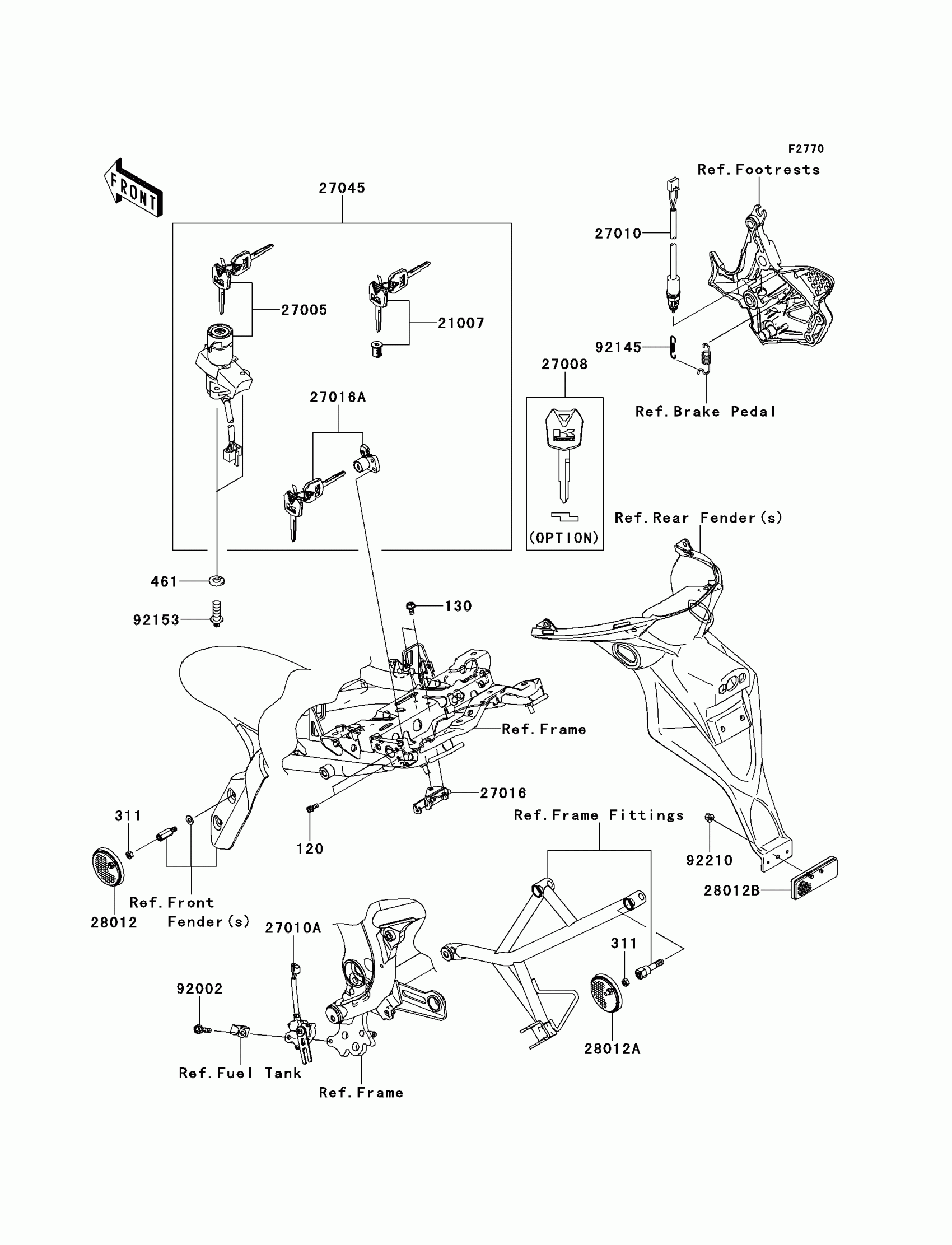

Find the part on the Ignition Switch diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Versys® (European) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5057

1

$86.34

In stock

27005

1

$186.99

In stock

27008

KEY-LOCK,BLANK

27008-0030

1

$14.66

In stock

27010

SWITCH,REAR BRAKE

27010-0072

1

$35.05

In stock

27010A

SWITCH,SIDE STAND

27010-1455

1

$120.30

In stock

27016

1

$29.14

In stock

27016A

LOCK-ASSY,SEAT

27016-5309

1

$88.67

In stock

27045

SWITCH-ASSY

27045-5360

1

$426.11

In stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92145

1

$2.93

In stock

92153

BOLT,TORX,6X16

92153-0967

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
