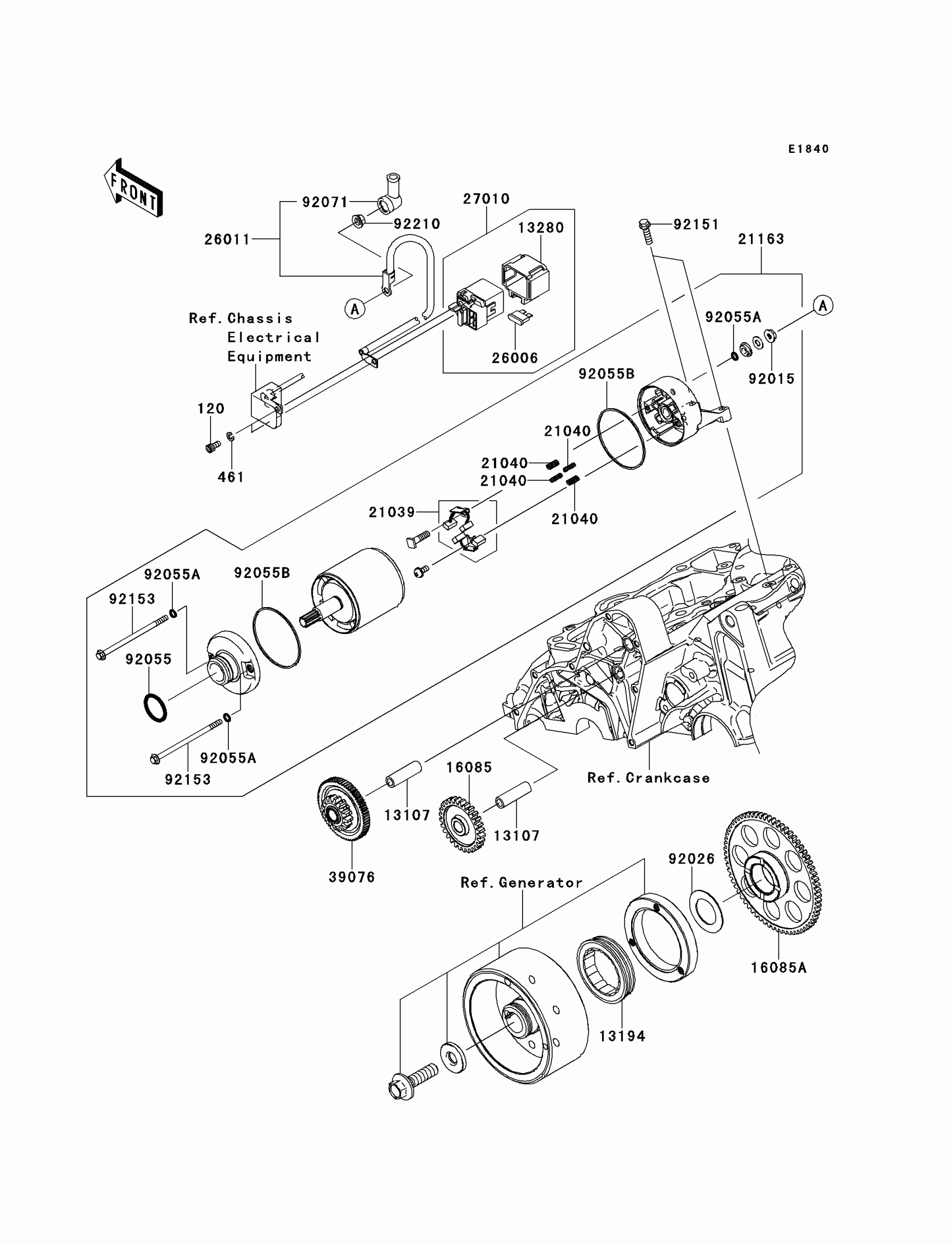

Find the part on the Starter Motor diagram for your 2009 Kawasaki Versys® (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Versys® (European) Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X10

120CB0510

1
Out of stock

461

WASHER-SPRING,5MM

461DB0500

1
Out of stock

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1083

1
Out of stock

13280

HOLDER

13280-1263

1
Out of stock

16085

GEAR,IDLE,28T

16085-0074

1
Out of stock

16085A

GEAR,67T

16085-0076

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0040

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD

26011-0161

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1446

1
Out of stock

39076

LIMITER,16T&66T

39076-0006

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92026

SPACER,29.1X47.5X1.2

92026-087

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92071

GROMMET

92071-0024

1
Out of stock

92151

BOLT,6X22

92151-1937

1
Out of stock

92153

BOLT

92153-1783

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
