2010 Kawasaki Versys® Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

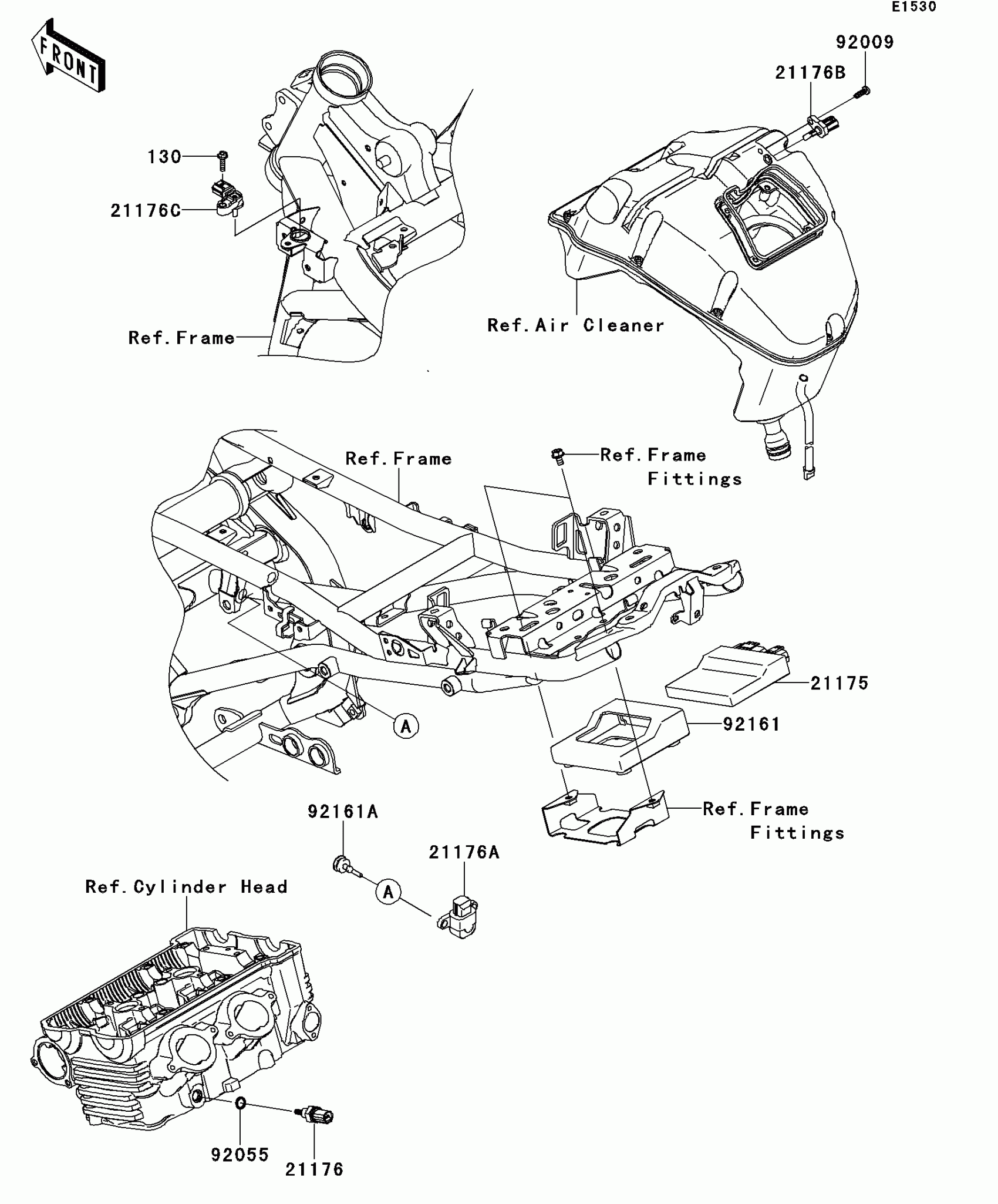

2010 Kawasaki Versys® Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$737.69

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1

$79.06

In stock

21176B

1

$24.07

In stock

21176C

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER,ECU

92161-0630

1

$26.02

In stock

92161A

DAMPER

92161-0839

1

$2.92

In stock

130

BOLT-FLANGED,5X18

130BA0518

1

$1.31

In stock
