2010 Kawasaki Versys® Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2010 Kawasaki Versys®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

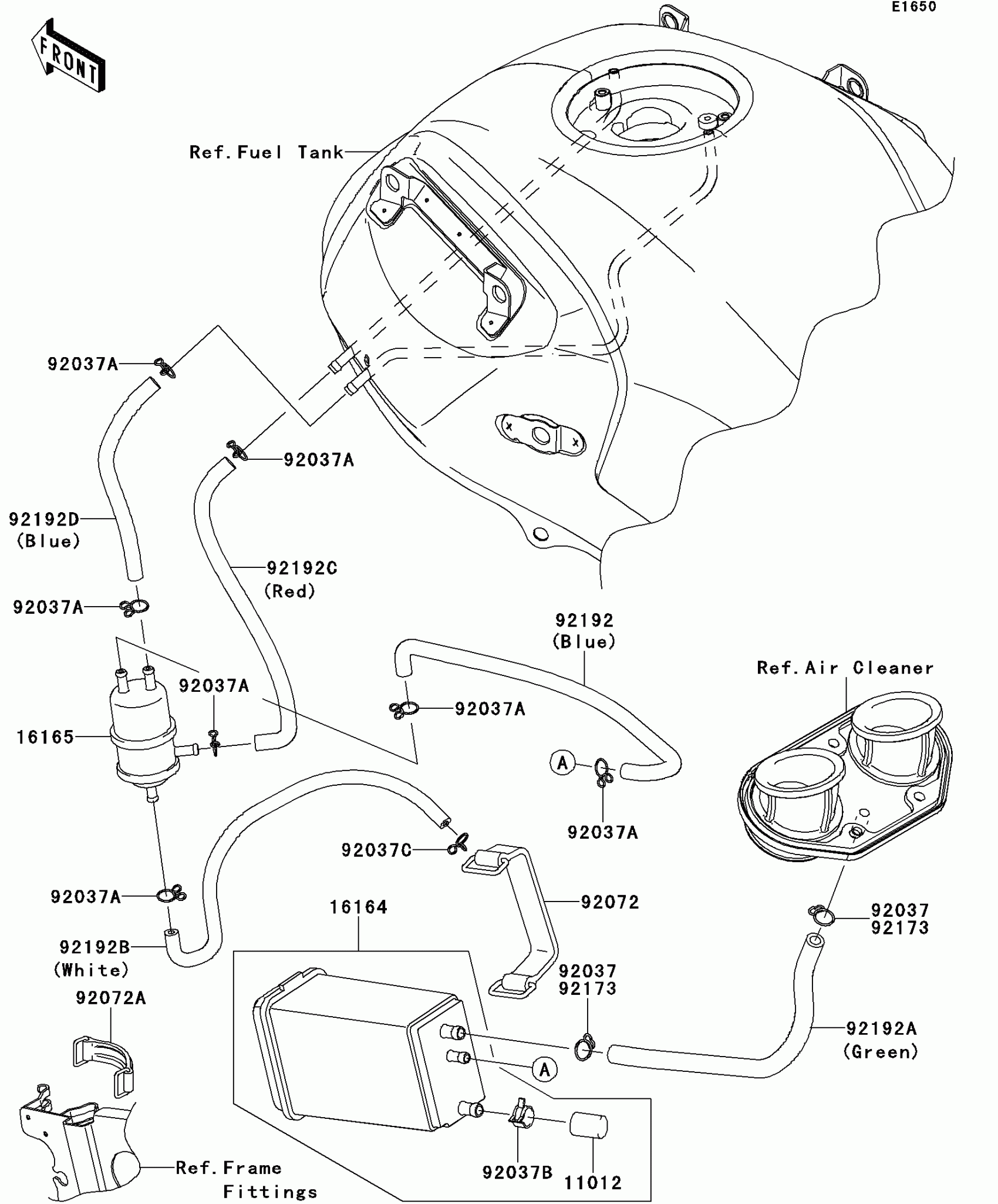

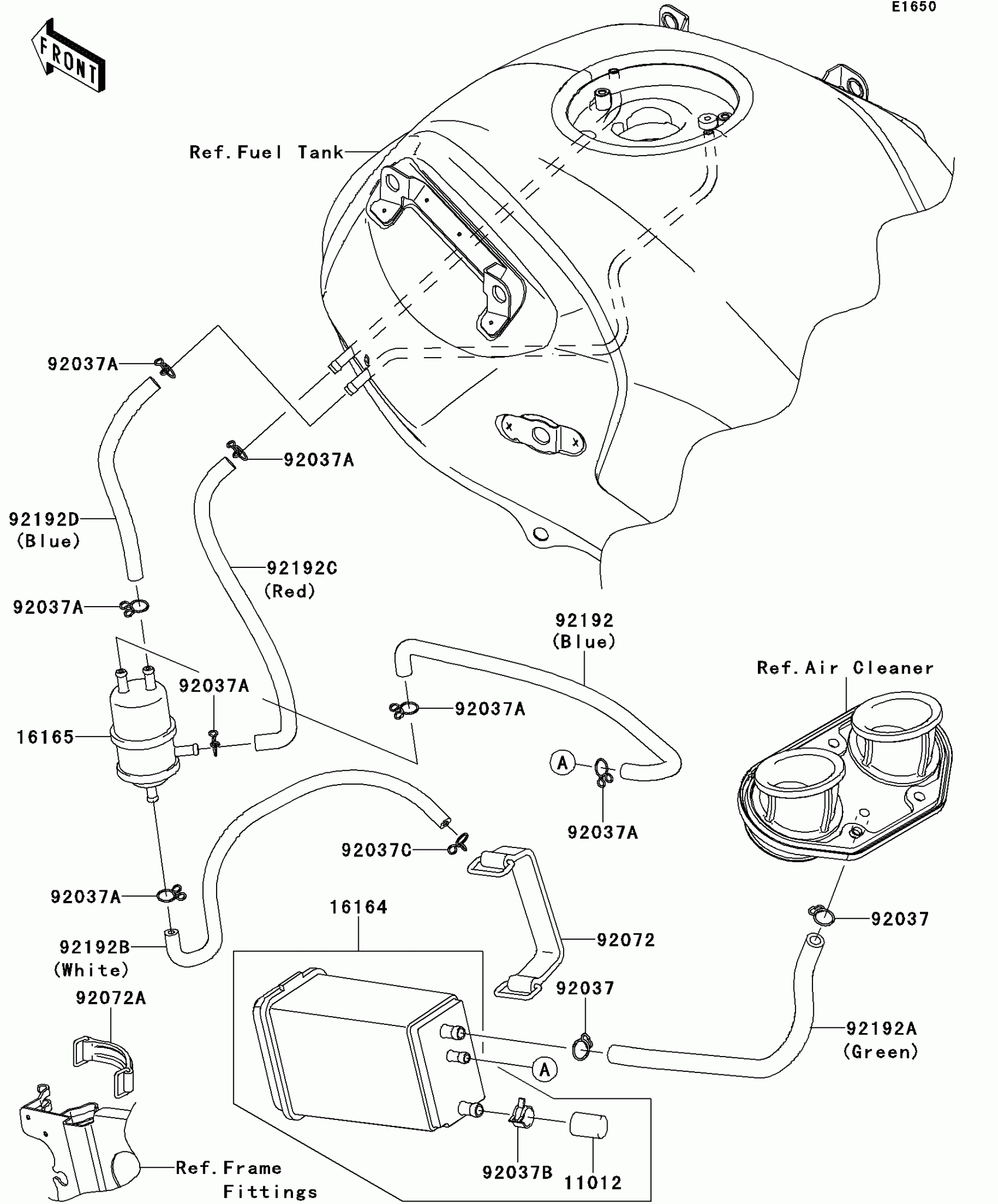

2010 Kawasaki Versys® Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

16164

CANISTER

16164-1054

1

$132.79

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037A

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037B

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92037C

CLAMP

92037-1712

1

$3.97

In stock

92072

BAND

92072-1384

1

$10.88

In stock

92072A

BAND,L=50

92072-1419

1

$12.72

In stock

92192

TUBE,CANISTER-SEPARATOR,BLUE

92192-0719

1
Out of stock

92192A

TUBE,A/C-CANISTER,GREEN

92192-0720

1
Out of stock

92192B

TUBE,SEPARATOR-THROBO,WHITE

92192-0721

1
Out of stock

92192C

TUBE,SEPARATOR-TANK,RED

92192-0871

1
Out of stock

92192D

TUBE,TANK-SEPARATOR,BLUE

92192-0872

1
Out of stock
