2024 Kawasaki Versys 650 Seat Cover Diagram

← All diagrams

Find the part on the Seat Cover diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

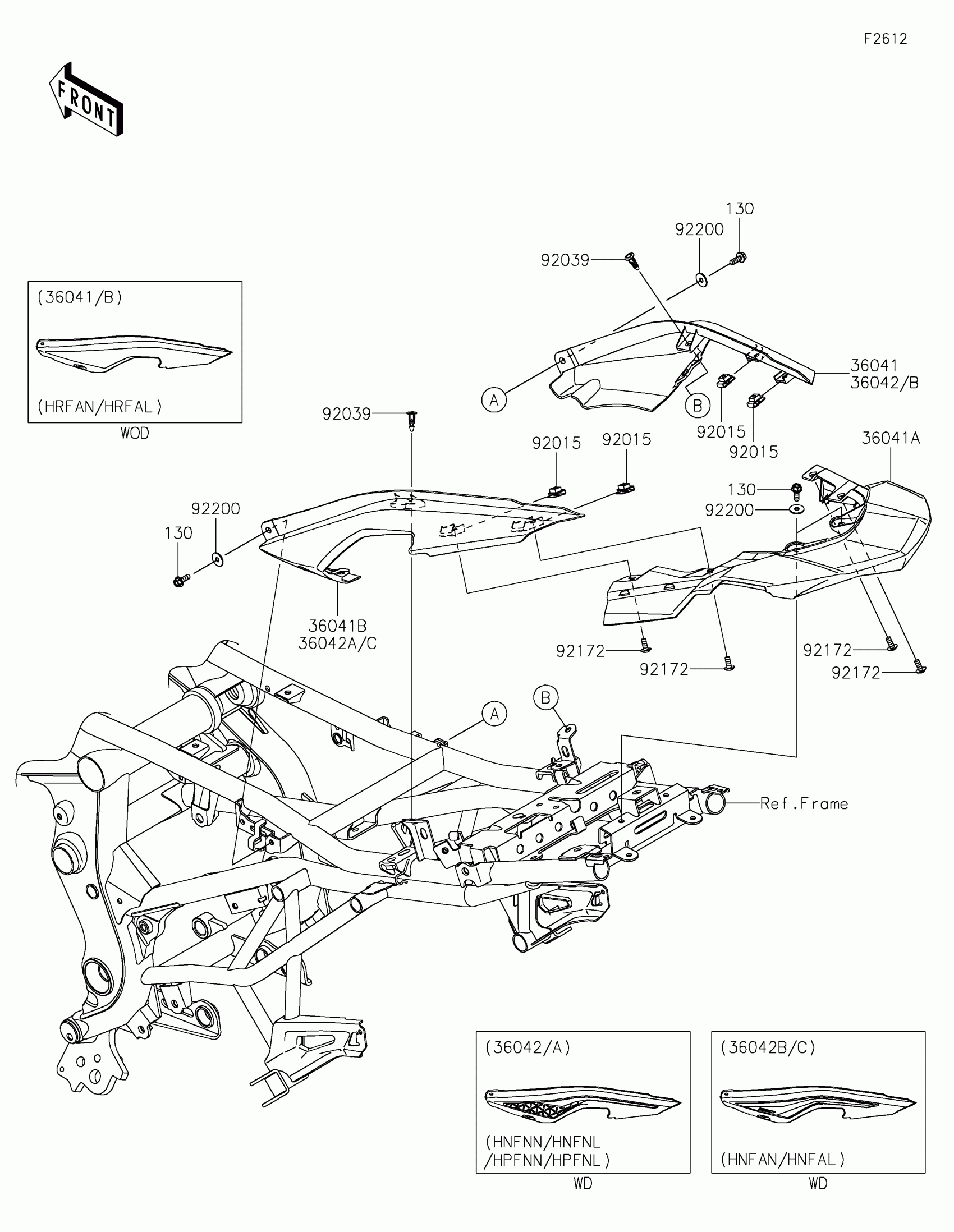

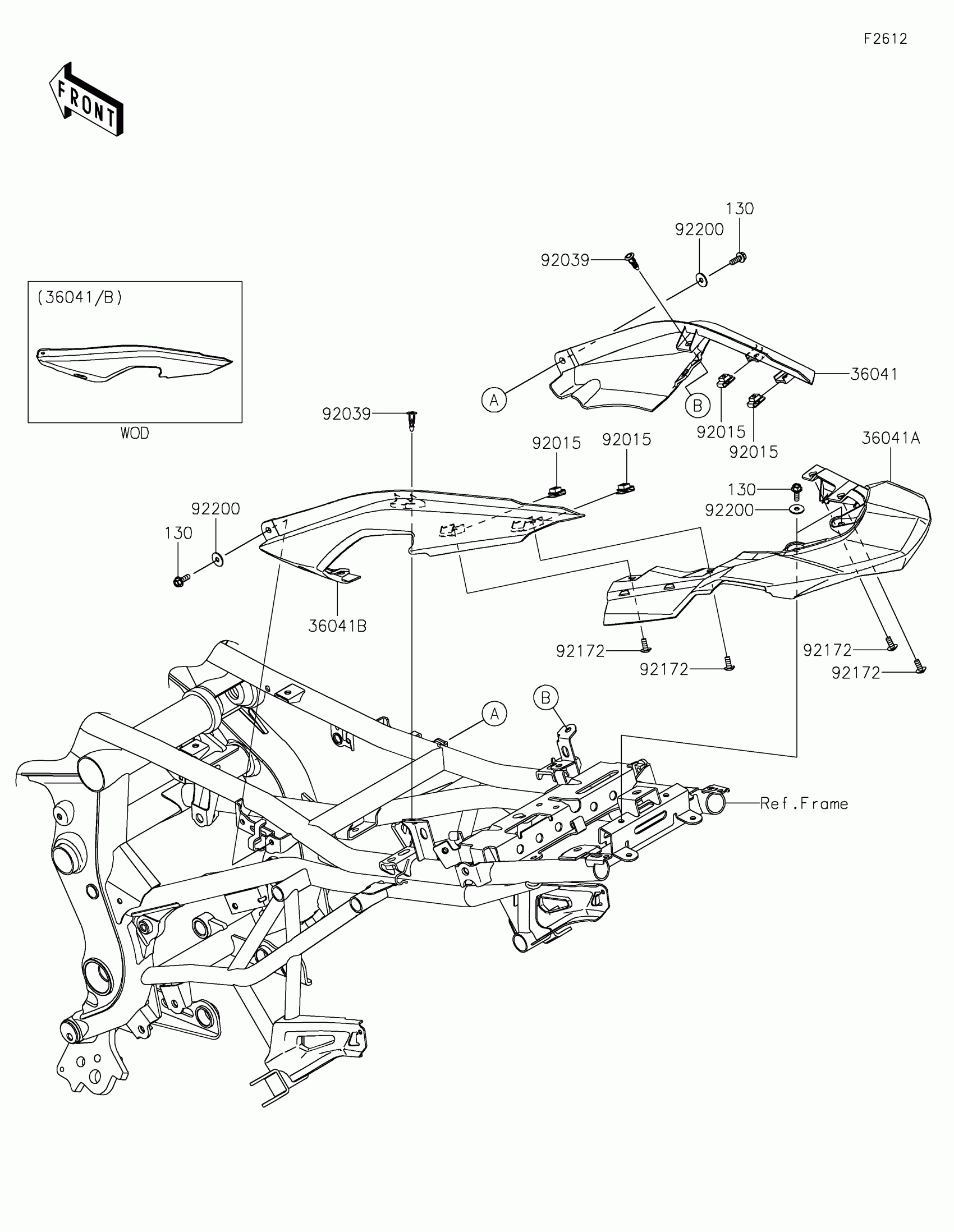

2024 Kawasaki Versys 650 Seat Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36041

COVER-TAIL,RH,M.M.D.GRAY

36041-0002-69P

1

$77.00

In stock

36041A

COVER-TAIL,CNT

36041-0003

1

$48.14

In stock

36041B

COVER-TAIL,LH,M.M.D.GRAY

36041-0025-69P

1

$77.00

In stock

36042

COVER-TAIL,RH,M.F.S.BLACK

36042-5357-739

1

$142.20

In stock

36042A

COVER-TAIL,LH,M.F.S.BLACK

36042-5358-739

1

$142.20

In stock

92015

NUT,5MM

92015-1627

1

$4.69

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92172

SCREW,5X12,WHITE

92172-1070

1

$0.76

In stock

92200

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
