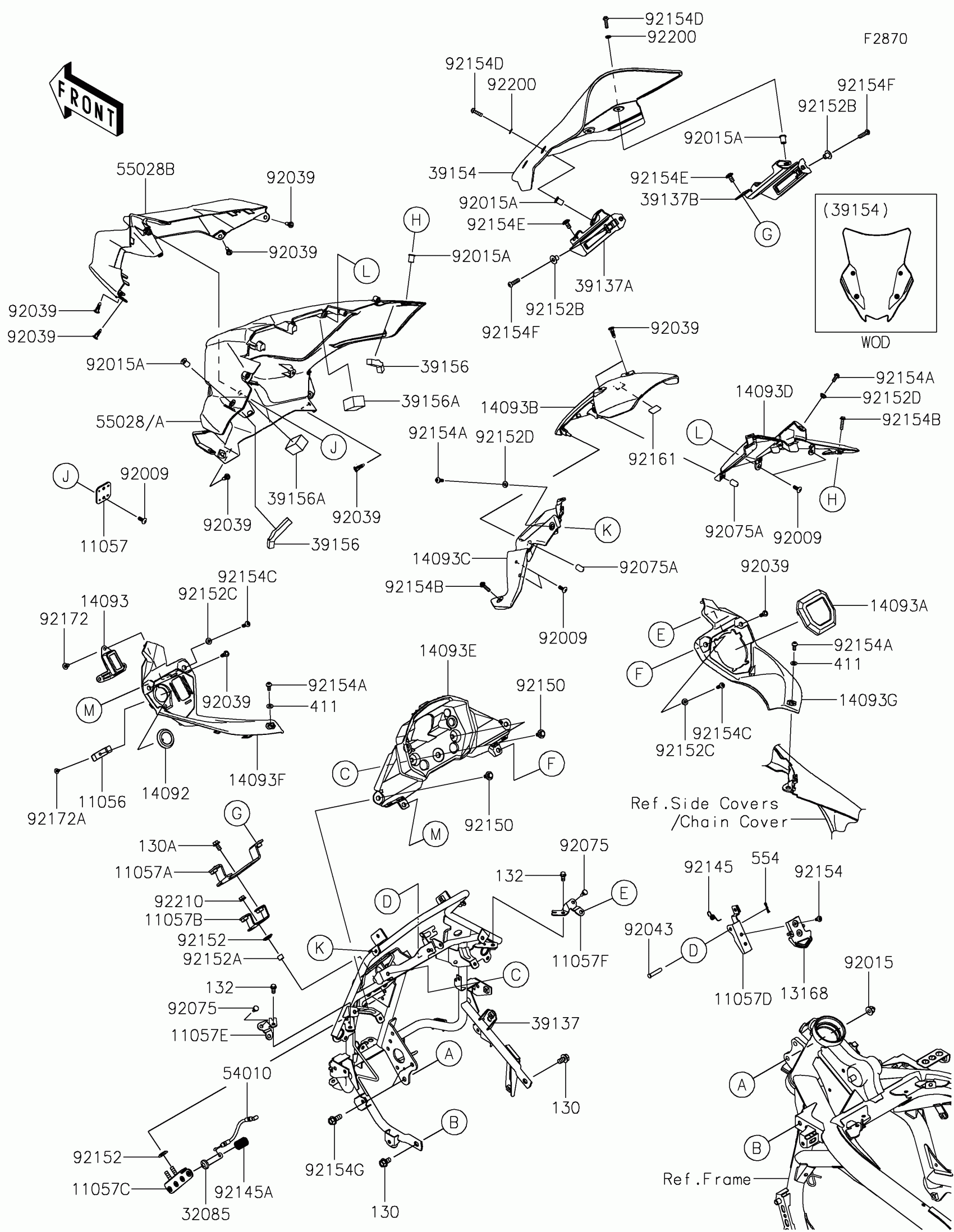

Kawasaki Versys 650 Cowling(Upper) Diagram

#

Description
Price

11056

BRACKET,CAP COVER

11056-4313

$1.10

11057

BRACKET,HEAD LAMP UNDER

11057-7426

$3.20

11057A

BRACKET,WINDSHIELD,CNT,UPP

11057-7436

$19.58

11057B

BRACKET,WINDSHIELD,CNT,MID

11057-7437

$12.81

11057C

BRACKET,WINDSHIELD,CNT,LWR

11057-7438

$8.46

11057D

BRACKET,WINDSHIELD,LEVER

11057-7439

$5.98

11057E

BRACKET,DASHBOARD,LH

11057-7953

$8.39

11057F

BRACKET,DASHBOARD,RH

11057-7954

$8.39

13168

LEVER,ADJUST

13168-0211

$11.85

14092

COVER,DC SOCKET

14092-0214

$5.71

14093

COVER,FOG SW.

14093-0565

$2.37

14093A

COVER,USB

14093-1077

$30.71

14093B

COVER,VISOR,CNT

14093-1191

$84.08

14093C

COVER,VISOR,LH

14093-1192

$88.16

14093D

COVER,VISOR,RH

14093-1193

$88.16

14093E

COVER,DASHBOARD,CNT

14093-1194

$87.01

14093F

COVER,DASHBOARD,LH

14093-1205

$81.27

14093G

COVER,DASHBOARD,RH

14093-1206

$66.60

32085

STOPPER

32085-0892

$5.93

39137

STAY-COMP,HEAD LAMP

39137-0716

$374.14

39137A

STAY-COMP,WINDSHIELD,LH

39137-0718

$33.86

39137B

STAY-COMP,WINDSHIELD,RH

39137-0719

$33.86

39154

WINDSHIELD

39154-0447

$142.67

39156

PAD,75X10X10

39156-2545

$1.68

39156A

PAD,37X25X20

39156-2825

$2.03

54010

CABLE,WINDSHIELD

54010-0649

$7.44

55028A

COWLING,UPP,M.F.S.BLACK

55028-0809-739

$381.08

55028B

COWLING,UPP,EBONY

55028-0809-H8

$381.08

55028C

COWLING,FR

55028-0810

$60.60

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92015

NUT,CAP,8MM

92015-1151

$3.81

92015A

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0709

$1.89

92043

PIN,6X28

92043-1464

$6.18

92075

DAMPER,6X10X15

92075-1808

$1.06

92075A

DAMPER

92075-1964

$3.81

92145

SPRING,LEVER

92145-2229

$1.20

92145A

SPRING,STOPPER

92145-2230

$1.20

92150

BOLT,FLANGED,6X14

92150-1689

$3.01

92152

COLLAR,10X20X3.75

92152-0913

$16.78

92152A

COLLAR

92152-2827

$4.76

92152B

COLLAR

92152-2828

$4.97

92152C

COLLAR

92152-2829

$2.12

92152D

COLLAR

92152-2899

$3.49

92154

BOLT,SOCKET,5X10

92154-0211

$1.54

92154A

BOLT,SOCKET,5X12

92154-0917

$3.59

92154B

BOLT,SOCKET,5X20

92154-0919

Unavailable

92154C

BOLT,SOCKET,5X16

92154-1701

$0.95

92154D

BOLT,SOCKET,5X18

92154-2107

$1.54

92154E

BOLT,SOCKET,6X12

92154-2706

$1.32

92154F

BOLT,SOCKET,6X22

92154-3777

$1.27

92154G

BOLT-FLANGED,8X20

92154-4211

$3.17

92161

DAMPER,12X23

92161-1367

$0.95

92172

SCREW,5X10

92172-0864

$1.04

92172A

SCREW,CROSS,4X8

92172-1227

$0.47

92200

WASHER,5.2X10X1

92200-2286

$0.43

92210

NUT,FLANGED,6MM

92210-1514

$3.59

130

BOLT-FLANGED,8X14

130BA0814

$1.54

130A

BOLT-FLANGED,6X12

130BB0612

$1.68

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

411

WASHER-PLAIN,5MM

411AB0500

$0.71

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79
