2024 Kawasaki Versys 650 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

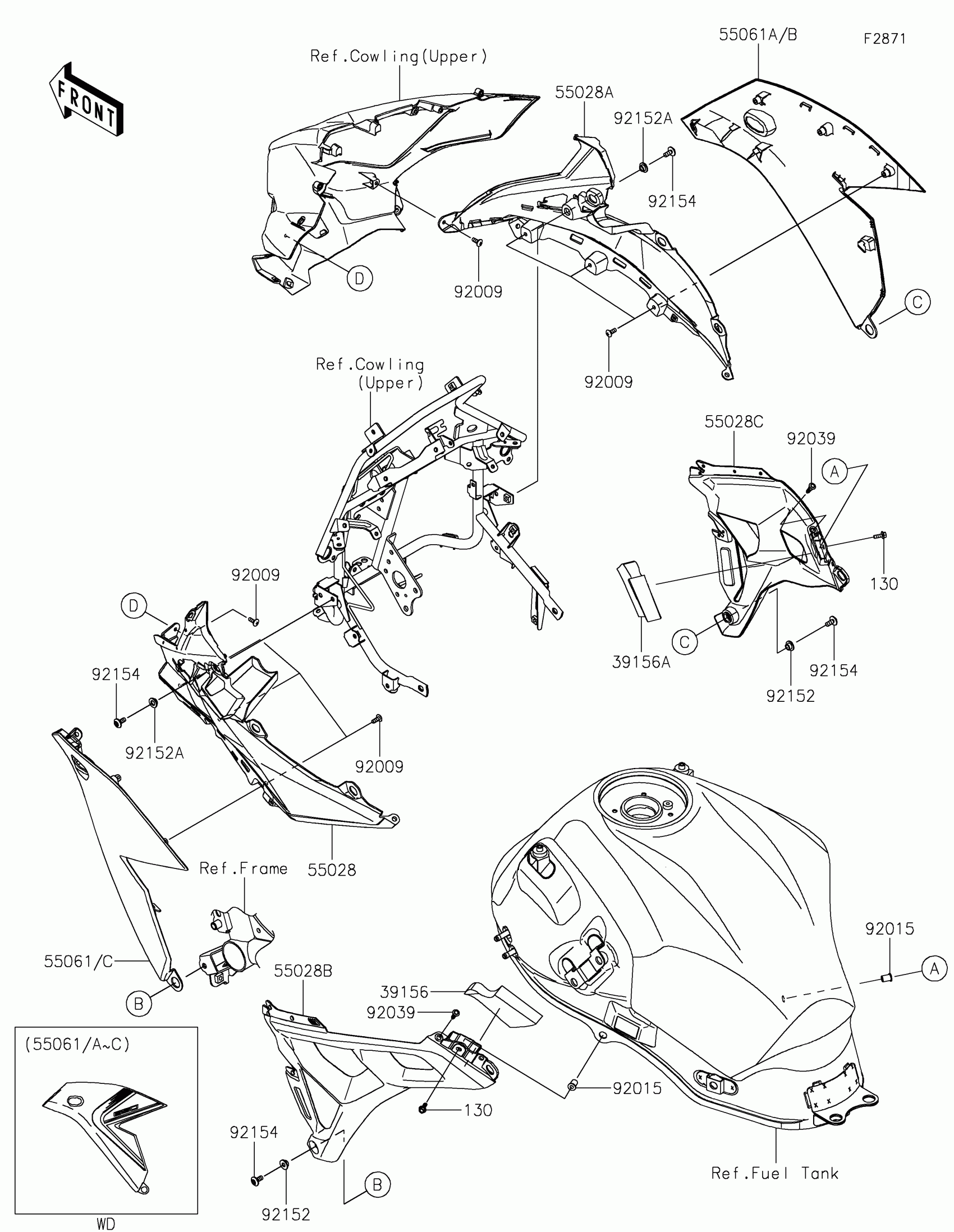

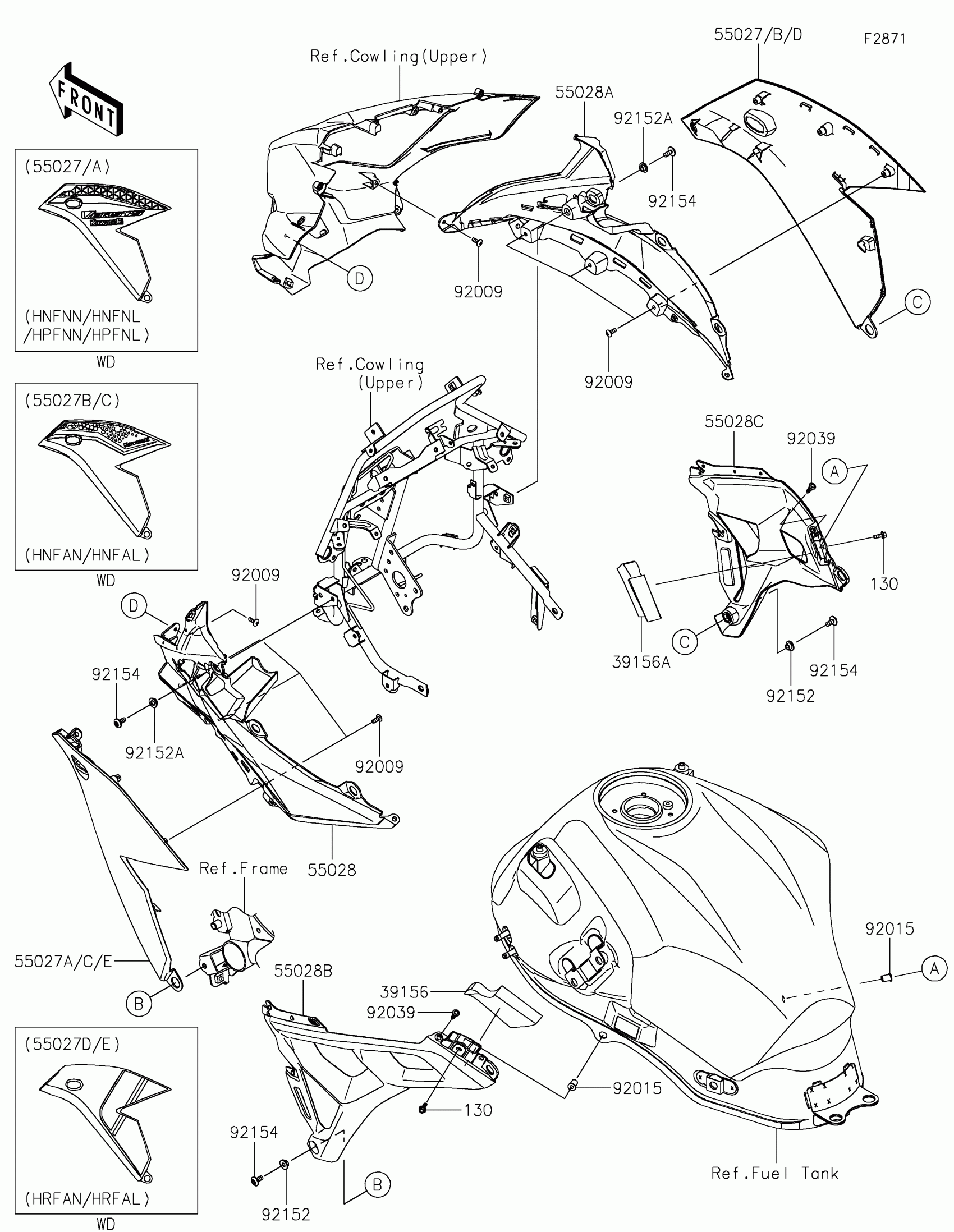

2024 Kawasaki Versys 650 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD,SIDE COWL.,LH

39156-2791

1

$17.19

In stock

39156A

PAD,SIDE COWL.,RH

39156-2792

1

$17.19

In stock

55027

1

$223.07

In stock

55027A

1

$238.71

In stock

55027D

COWLING,SIDE FR,RH,EBONY

55027-5352-H8

1

$240.59

In stock

55027E

COWLING,SIDE,FR,LH,EBONY

55027-5353-H8

1

$240.59

In stock

55028

COWLING,SIDE MID,LH

55028-0813

1

$60.60

In stock

55028A

COWLING,SIDE MID,RH

55028-0814

1

$60.60

In stock

55028B

COWLING,SIDE RR,LH

55028-0817

1

$50.02

In stock

55028C

COWLING,SIDE RR,RH

55028-0818

1

$50.72

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92152

COLLAR,6.5X10X6.4

92152-2287

1
Out of stock

92152A

COLLAR

92152-2296

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0932

1

$1.68

In stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
