2024 Kawasaki Versys 650 Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2024 Kawasaki Versys 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

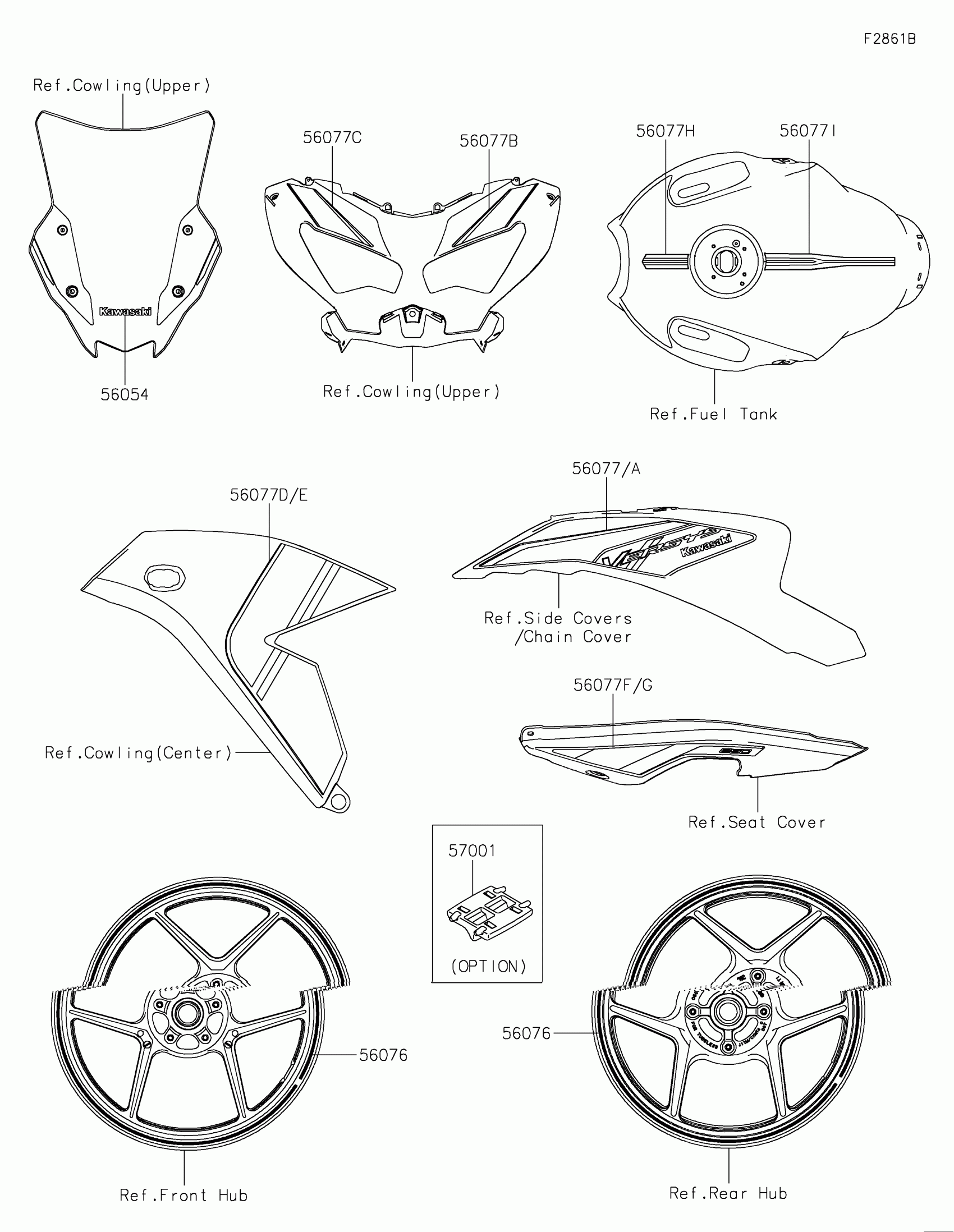

2024 Kawasaki Versys 650 Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56054

MARK,WINDSHIELD,KAWASAKI

56054-2177

1
Out of stock

56076

PATTERN,WHEEL,RED,4X1353

56076-2173

1
Out of stock

56077

PATTERN,TANK COWL.,LH

56077-0793

1
Out of stock

56077A

PATTERN,TANK COWL.,RH

56077-0794

1
Out of stock

56077B

PATTERN,UPP COWL.,LH

56077-0795

1
Out of stock

56077C

PATTERN,UPP COWL.,RH

56077-0796

1
Out of stock

56077D

PATTERN,SIDE COWL.,LH

56077-0797

1
Out of stock

56077E

PATTERN,SIDE COWL.,RH

56077-0798

1
Out of stock

56077F

PATTERN,TAIL COVER,LH

56077-0799

1
Out of stock

56077G

PATTERN,TAIL COVER,RH

56077-0800

1
Out of stock

56077H

PATTERN,FUEL TANK,FR

56077-1210

1
Out of stock

56077I

PATTERN,FUEL TANK,RR

56077-1211

1
Out of stock

57001

RIM STRIPE APPLICATOR

57001-1752

—
Out of stock
