1972 Yamaha U7E (U7E) Tail Lamp Diagram

← All diagrams

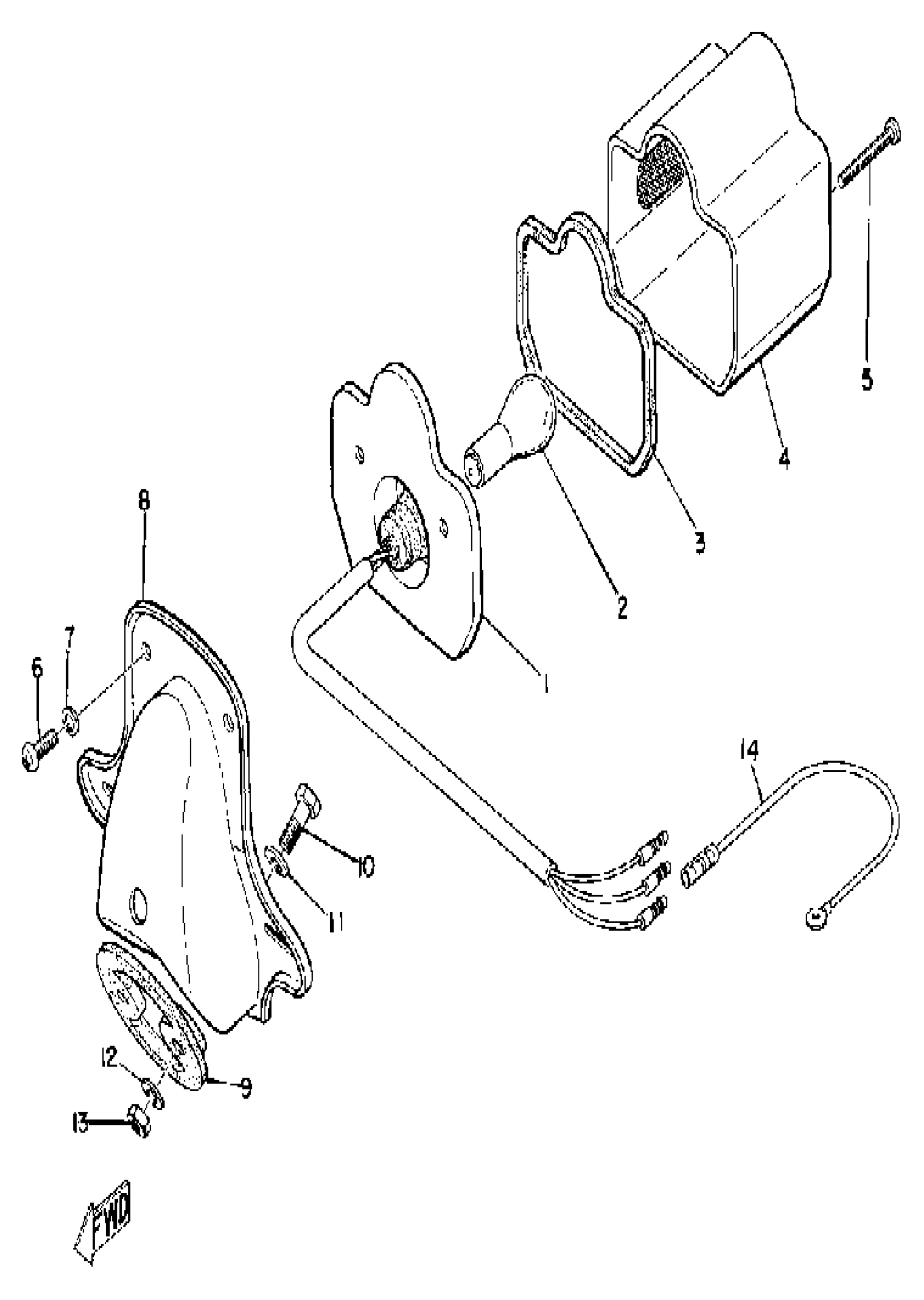

Find the part on the Tail Lamp diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(339-84710-60-00)

1
Out of stock

1

BASE, TAILLIGHT

(339-84711-60-00)

1
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

SEAT, BASE

(168-84712-60-00)

1
Out of stock

4

. LENS, TAILLIGHT

(168-84721-60-00)

1
Out of stock

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

1
Out of stock

6

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

GROMMET

(90480-13149-00)

1
Out of stock

10

BOLT 306258330000

90109-06018-00

1

$7.92

In stock

11

WASHER, SPECIAL

(132-84754-60-00)

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

WIRE, EARTH LEAD

(117-84556-60-00)

1
Out of stock
