1972 Yamaha U7E (U7E) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

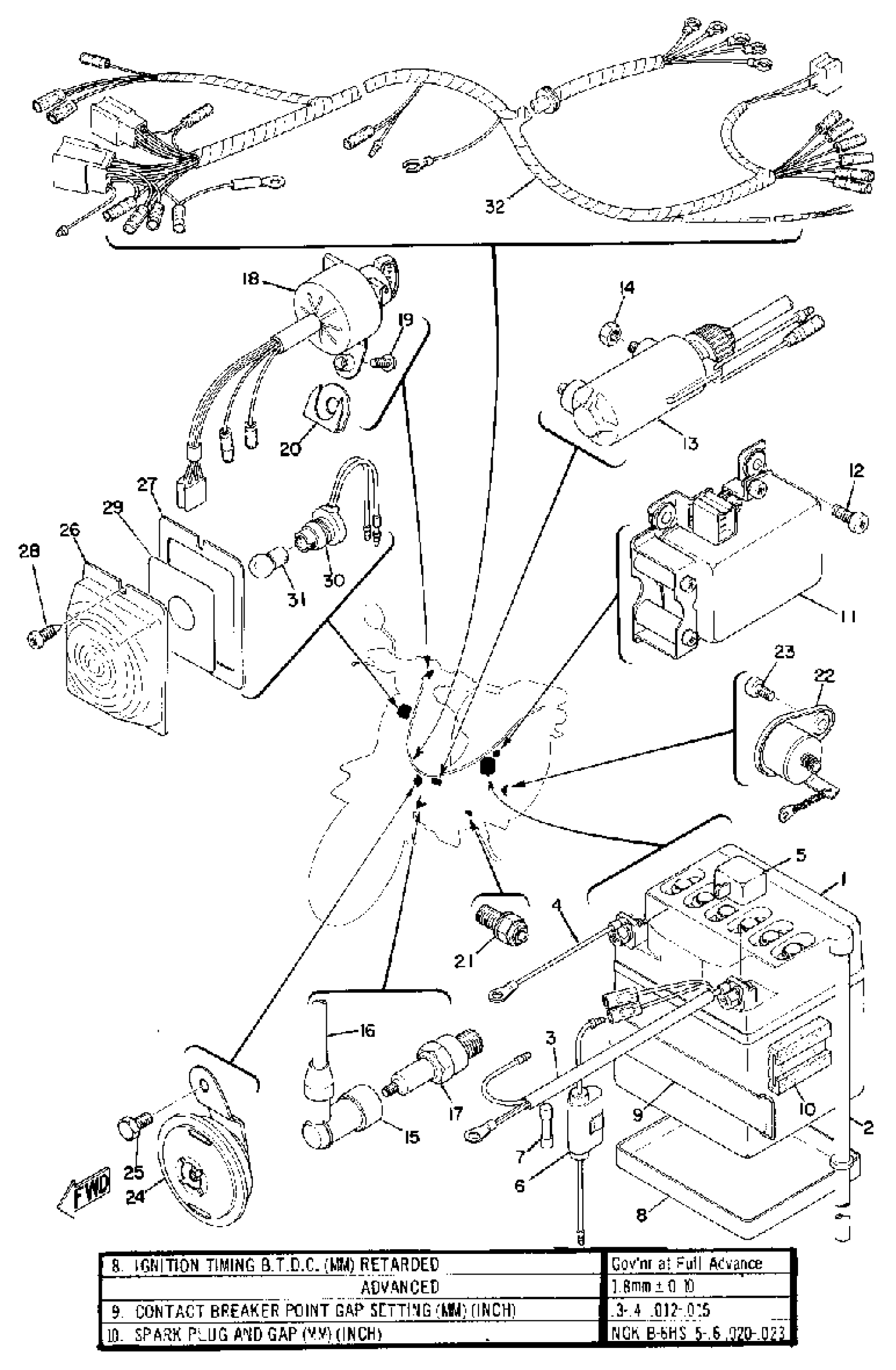

1972 Yamaha U7E (U7E) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

12N7C-3D

(121-82110-79-00)

1
Out of stock

1

12N7C-3D

(121-82110-79-00)

1
Out of stock

2

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

3

WIRE, PLUS LEAD

(118-82115-00-00)

1
Out of stock

4

WIRE, MINUS LEAD

(118-82116-00-00)

1
Out of stock

5

COVER, LEAD WIRE

(121-82119-00-00)

1
Out of stock

6

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

7

FUSE

1A0-82161-00-00

1
Out of stock

8

SEAT, BATTERY

(121-82122-00-00)

1
Out of stock

9

BAND, BATTERY

(121-82131-00-00)

1
Out of stock

10

PAD, BATTERY

(296-82121-00-00)

1
Out of stock

11

VOLTAGE REG ASSEMBLY

(118-81910-11-00)

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

IGNITION COIL ASSEMBLY

254-82310-60-00

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

16

CORD, HIGH TENS 1

(297-82341-00-00)

1
Out of stock

17

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

18

MAIN SWITCH ASSEMBLY

518-82508-10-00

1
Out of stock

19

SCREW(617)

98780-05012-00

—

$3.03

In stock

20

PLATE, EARTH

(266-82518-00-00)

1
Out of stock

21

NEUTRAL SWITCH ASSY

4GY-82540-10-00

—
Out of stock

22

STOPSWITCHASSY

122-82530-02-00

1
Out of stock

23

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

24

HORN

(297-83371-20-00)

1
Out of stock

25

BOLT (661)

97013-06012-00

—

$4.71

In stock

26

LENS, MARKER LIGHT

(296-85352-00-00)

1
Out of stock

27

GASKET, MRKR LIGHT

(296-85355-00-00)

1
Out of stock

28

SCREW, SPECIAL

(296-23396-00-00)

1
Out of stock

29

REFLECTOR, MRKR LT

(296-85356-00-00)

1
Out of stock

30

SOCKET, MRKR LIGHT

(297-85354-20-00)

1
Out of stock

31

BULB

(254-84347-00-00)

1
Out of stock

32

WIRE HARNESS ASSEMBLY

(297-82590-11-00)

1
Out of stock
