1972 Yamaha U7E (U7E) Starter Generator Diagram

← All diagrams

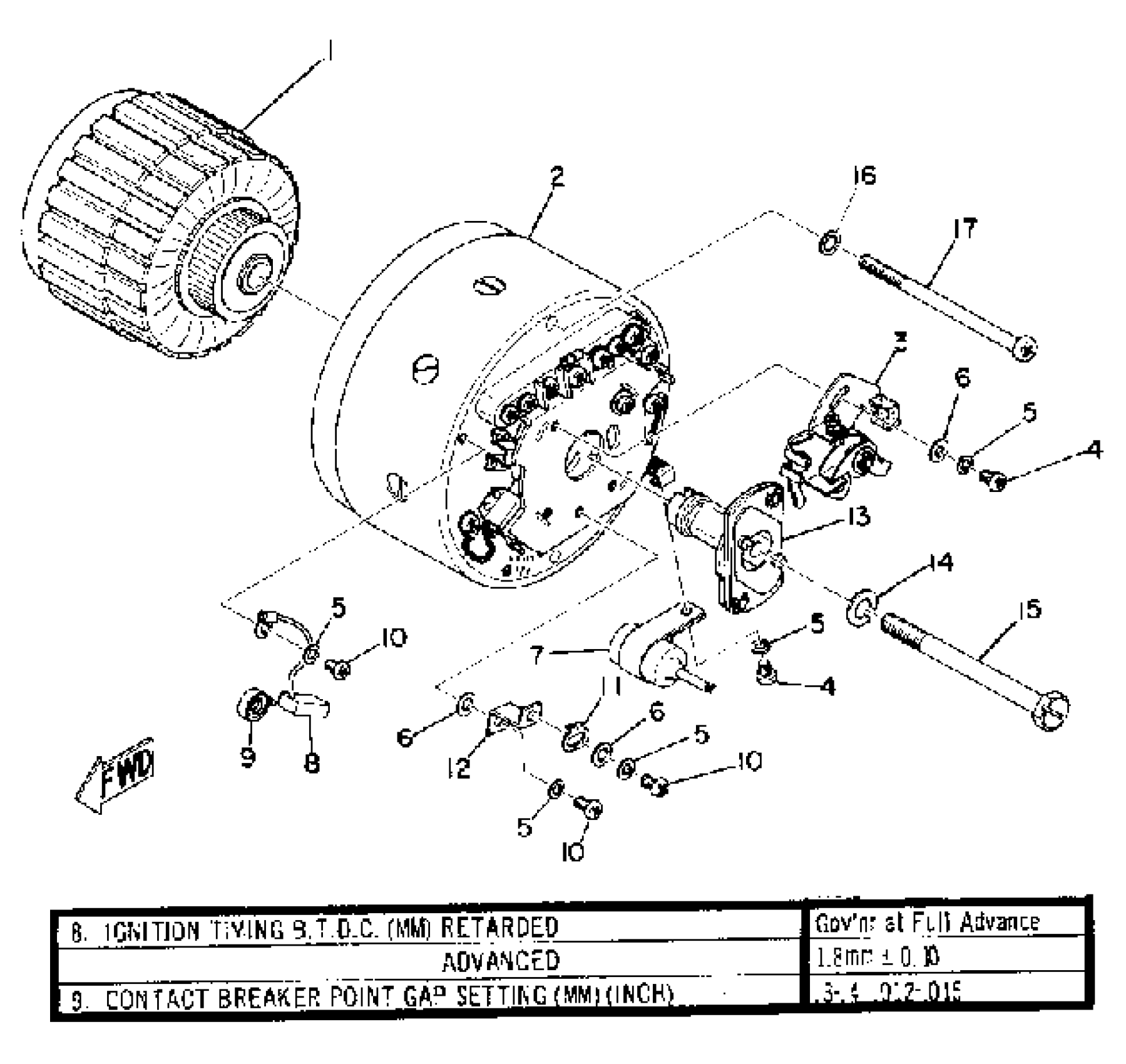

Find the part on the Starter Generator diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Starter Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER GEN ASSEMBLY

(299-81100-11-00)

1
Out of stock

1

ARMATURE ASSEMBLY

(299-81150-10-00)

1
Out of stock

2

STATOR ASSEMBLY

(299-81110-10-00)

1
Out of stock

3

CONTACT BREAKER ASSY

183-81421-19-00

—
Out of stock

4

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

7

CNDSR 2

278-81625-91-00

1
Out of stock

8

BRUSH

101-81111-10-00

1
Out of stock

9

. SPRING, BRUSH

141-81113-10-00

1
Out of stock

10

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

11

PLATE, TIMING

(133-81132-10-00)

1
Out of stock

12

FIXTURE, TMNG PLATE

(299-81133-10-00)

1
Out of stock

13

GOVERNOR ASSEMBLY

(299-81153-11-00)

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

SCREW, HEXAGON

(90143-07015-00)

1
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock
