1972 Yamaha U7E (U7E) Frame Side Cover Diagram

← All diagrams

Find the part on the Frame Side Cover diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

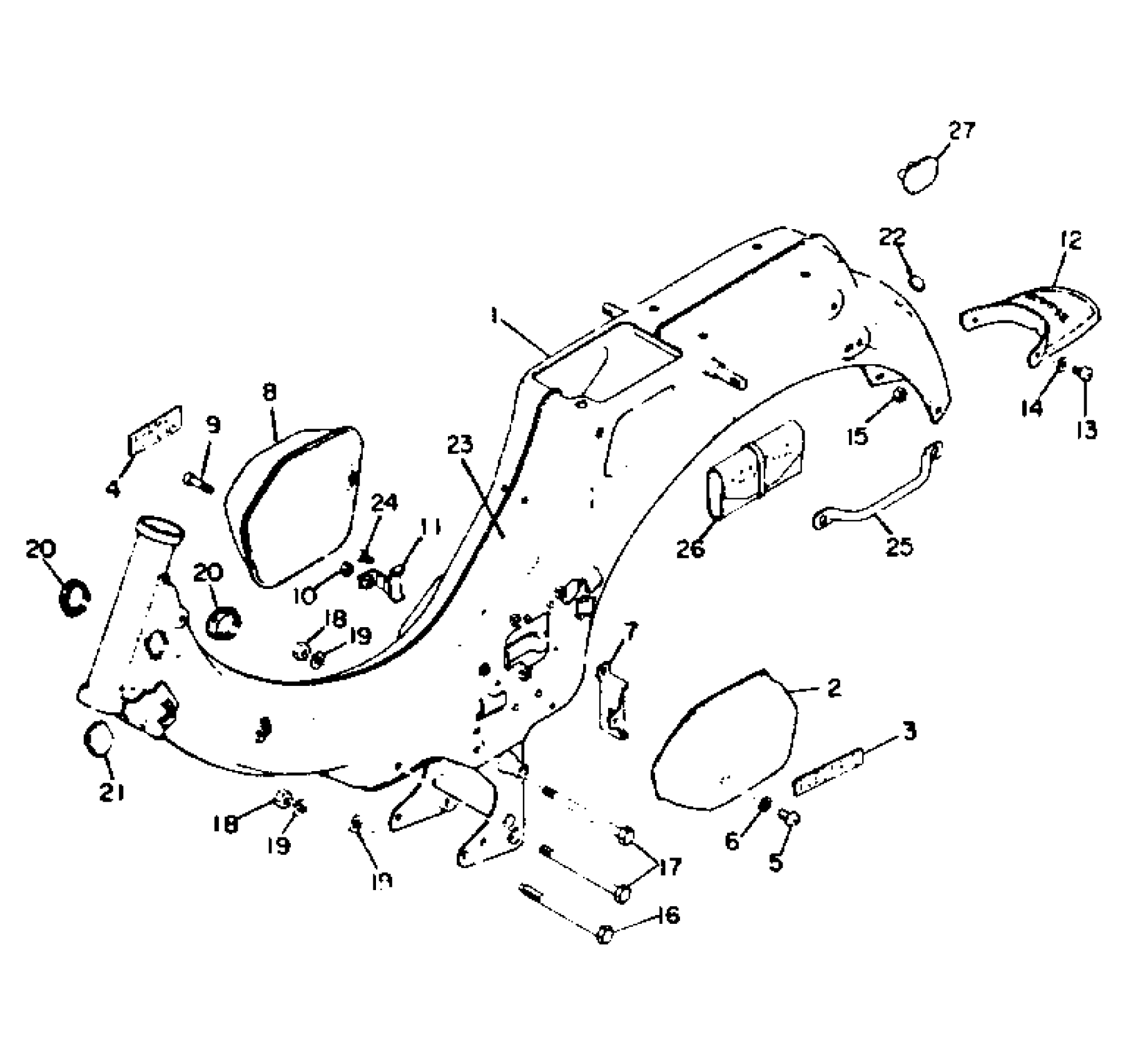

1972 Yamaha U7E (U7E) Frame Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(296-21110-02-71)

1
Out of stock

2

COVER, SIDE 1

(297-21711-01-71)

1
Out of stock

3

EMBLEM 2

(117-21782-00-00)

1
Out of stock

4

EMBLEM 7

(320-21787-00-00)

1
Out of stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

7

STAY, SIDE COVER 1

(297-21321-00-00)

1
Out of stock

8

COVER, SIDE 2

(297-21721-02-71)

1
Out of stock

9

BOLT, SIDE COVER

(266-21712-00-00)

1
Out of stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

STAY, SIDE COVER 2

(297-21322-00-00)

1
Out of stock

12

FLAP

(116-21621-00-00)

1
Out of stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock

14

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

BOLT, HEXAGON (582)

90101-08286-00

—
Out of stock

17

BOLT

90109-08386-00

—
Out of stock

18

NUT(6L2)

95333-08600-00

—

$3.20

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

GROMMET, CABLE

(296-26288-01-00)

1
Out of stock

21

GROMMET, CABLE

(296-26288-01-00)

1
Out of stock

22

GROMMET 152845180000

90480-12013-00

—
Out of stock

23

BRACKET, DAMPER

(296-21798-00-00)

1
Out of stock

24

SCREW, PAN

98507-06014-00

1

$6.18

In stock

25

HANDLE, STANDING

(298-21165-00-00)

1
Out of stock

26

TOOL KIT

(207-28100-10-00)

1
Out of stock

27

PLUG, BLIND

(164-83319-00-00)

1
Out of stock
