1972 Yamaha U7E (U7E) Handle Wire Diagram

← All diagrams

Find the part on the Handle Wire diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

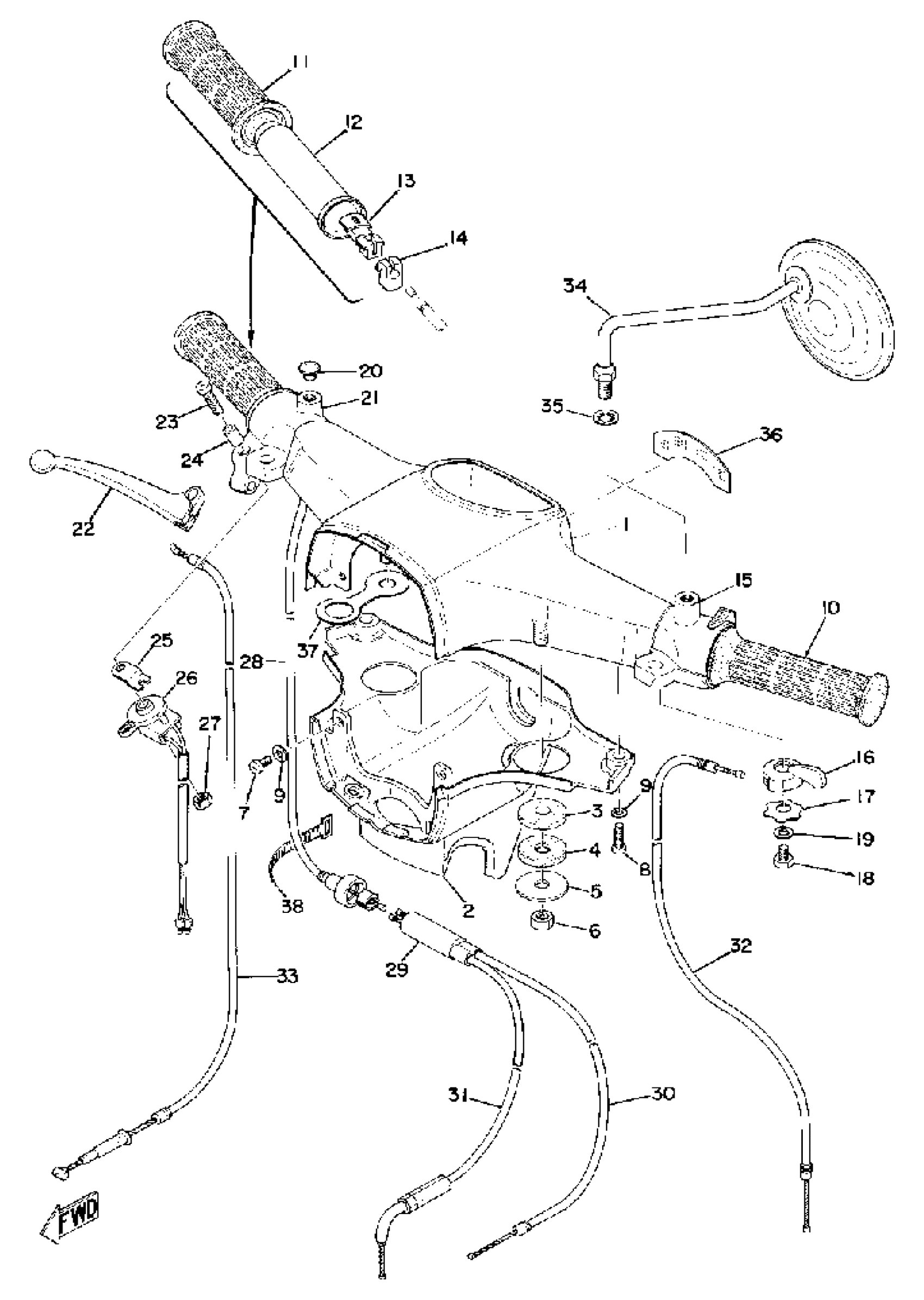

1972 Yamaha U7E (U7E) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

(296-26210-02-33)

1
Out of stock

2

COVER, LOWER

(296-26215-01-00)

1
Out of stock

3

DAMPER

(296-23445-00-00)

1
Out of stock

4

DAMPER

(296-23455-00-00)

1
Out of stock

5

WASHER 1902345600

90201-08310-00

1
Out of stock

6

. NUT

95380-08700-00

1

$3.07

In stock

7

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

8

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

GRIP LH

(116-26241-00-00)

1
Out of stock

11

GRIP RH

(116-26242-00-00)

1
Out of stock

12

TUBE, THRTL GUIDE

(116-26243-00-00)

1
Out of stock

13

SLIDER, THROTTLE

(116-26244-00-00)

1
Out of stock

14

STOPPER, CABLE

(116-26245-00-00)

1
Out of stock

15

LEVER HOLDER ASSEMBLY 1

(339-82710-00-00)

1
Out of stock

16

LEVER, STARTER

296-83941-01-00

1
Out of stock

17

WASHER (357)

90209-10131-00

—

$7.94

In stock

18

BOLT (11T)

90101-06576-00

—

$6.46

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

PLUG (17J)

90338-07124-00

—

$8.55

In stock

21

LEVER HOLDER ASSEMBLY 2

(297-82720-31-00)

1
Out of stock

22

. LEVER R

122-83922-01-00

1
Out of stock

23

SCREW, PAN

98507-05040-00

—

$6.68

In stock

24

. COLLAR, LEVER 1

137-83913-01-00

1
Out of stock

25

BRKT, FRT STOP SWCH

(296-83983-00-00)

1
Out of stock

26

STOP SWITCH ASSEMBLY

(296-83980-00-00)

1
Out of stock

27

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

28

CABLE, THROTTLE 1

296-26311-02-00

1
Out of stock

29

CONNECTER, CABLE

4U1-26261-00-00

—

$33.76

In stock

30

CABLE, THROTTLE 2

(296-26312-01-00)

1
Out of stock

31

CABLE, PUMP

(296-26321-01-00)

1
Out of stock

32

CABLE, STARTER 1

(296-26331-00-00)

1
Out of stock

33

WIRE, BRAKE

296-26341-01-00

—
Out of stock

34

MIRROR ASSEMBLY RH

266-26290-00-00

1
Out of stock

34

3MIRROR ASSEMBLY LH

266-26290-10-00

1
Out of stock

35

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

36

EMBLEM, MAIN SWITCH

(296-82505-00-00)

1
Out of stock

37

PLATE, EARTH

(296-82518-00-00)

1
Out of stock

38

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
