1976 Kawasaki Trial Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

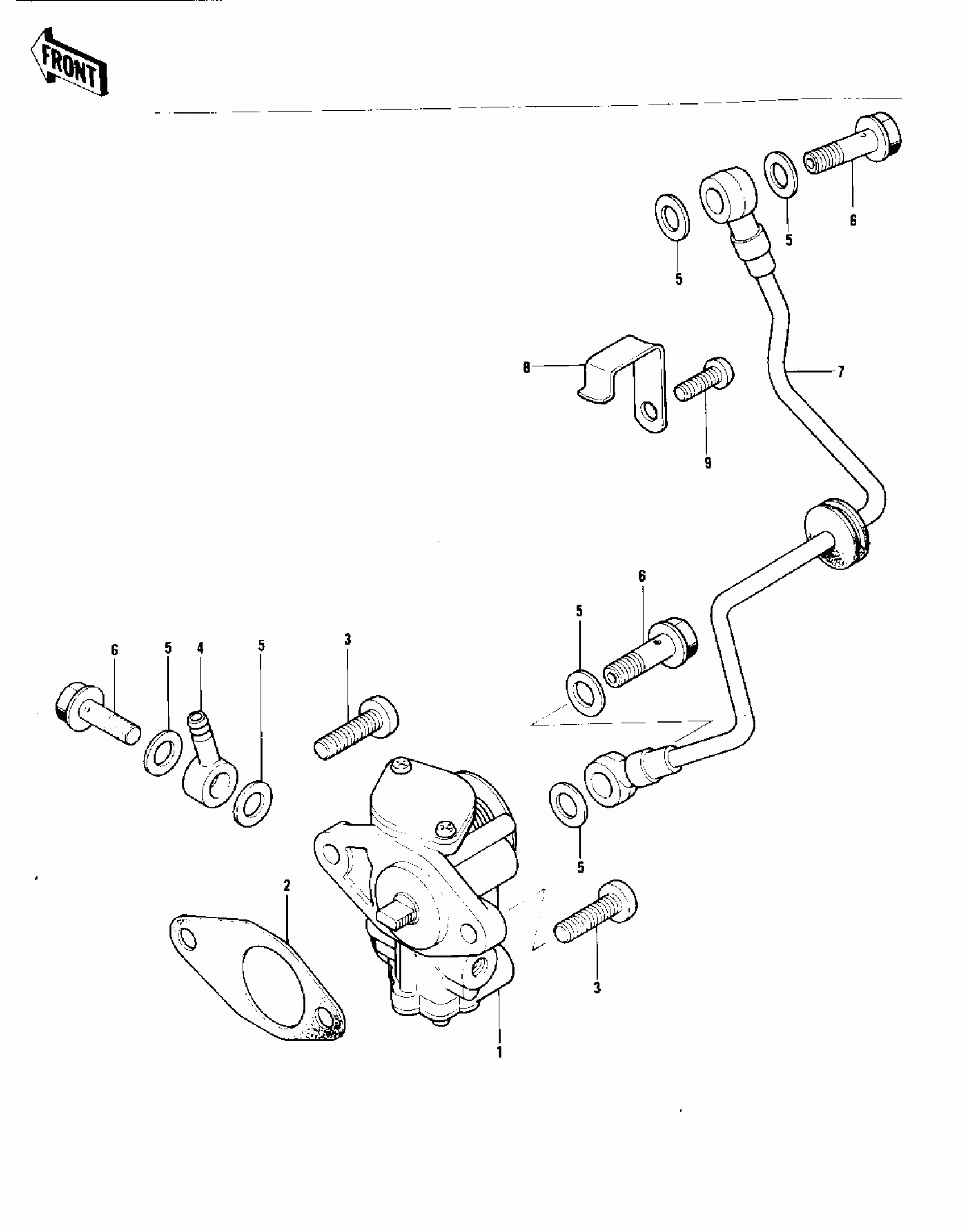

1976 Kawasaki Trial Oil Pump Diagram

#

Description
Price
Status
Order Qty

1

OIL PUMP ASSY

16082-058

$240.48

In stock

2

GASKET,OIL PUMP

16094-008

Out of stock

3

UNAVAILABLE IN PRICE BOOK

214B0516A

Out of stock

4

FITTING,BANJO

92061-009

Out of stock

5

$3.13

In stock

6

BOLT,BANJO,L=16

92060-013

$5.16

In stock

7

PIPE,OIL

16134-027

Out of stock

8

CLAMP,OIL PIPE

92037-157

Out of stock

9

$1.32

In stock
