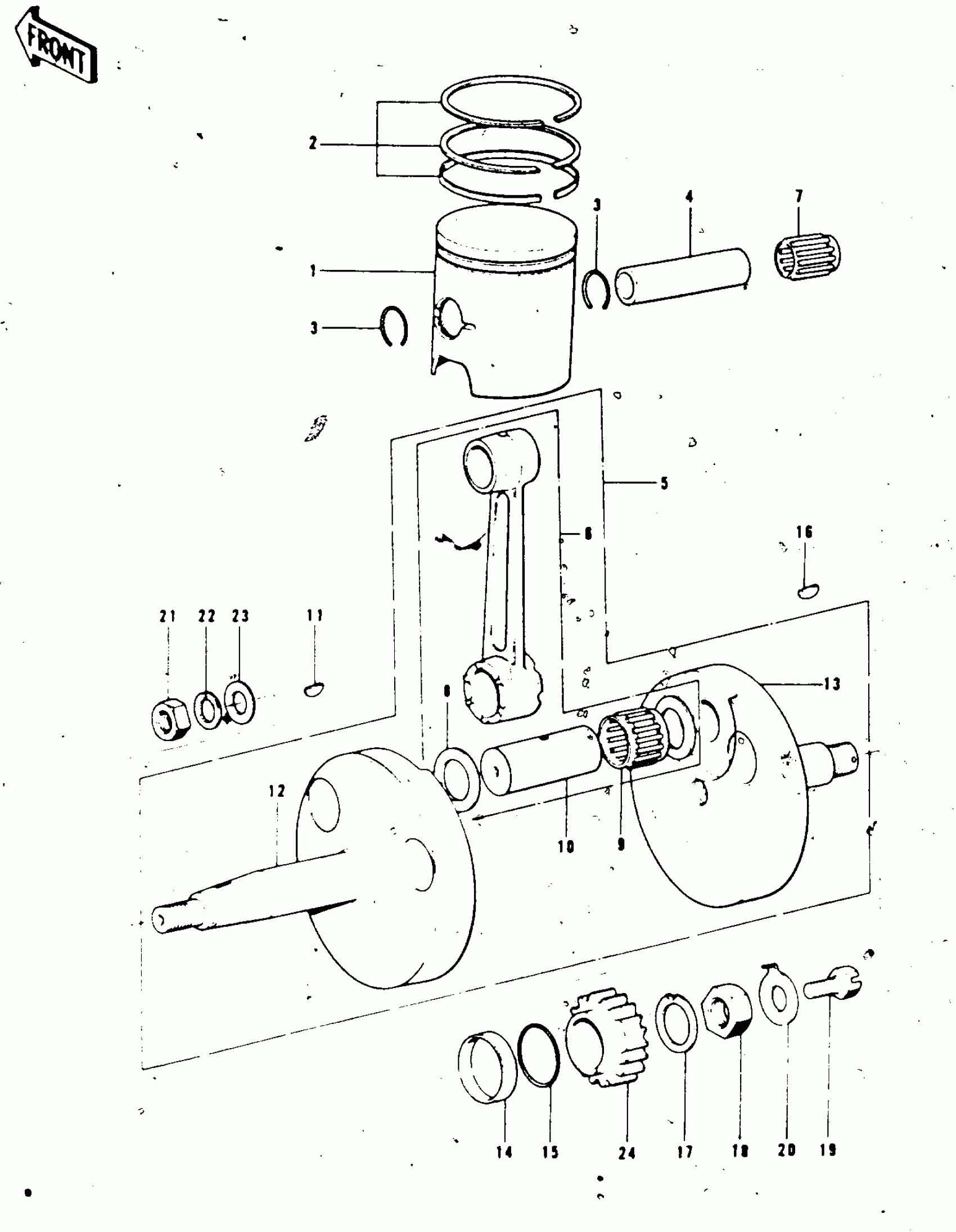

1976 Kawasaki Trial Crankshaft/piston Diagram

#

Description
Price
Status
Order Qty

1

PISTON,STD

13001-073

Out of stock

1

PISTON,0.020'0/S

13029-071

Out of stock

1

PISTON,0.040'0/S

13027-064

Out of stock

2

RING SET,STD

13008-054

Out of stock

2

RING SET,0.020'0/S

13025-057

Out of stock

2

RING SET,0.040'0/S

13024-057

Out of stock

3

CIRCLIP-PISTON PIN

92036-015

$3.93

In stock

4

PIN-PISTON

13002-017

Out of stock

4

PIN-PISTON

13002-017

Out of stock

5

CRANK&CONROD ASSY

13036-048

Out of stock

6

CONNECTING ROD SET

13044-037

Out of stock

7

BEARING-SMALL END

13033-1010

$23.08

In stock

7

BEARING-SMALL END

13033-1010

$23.08

In stock

8

SPACER

92026-1241

$9.20

In stock

9

BEARING,BIG END NEEDL

13034-049

Out of stock

10

PIN,CRANK

13035-034

$86.76

In stock

11

KEY,WOODRUFF

92038-001

$3.94

In stock

12

CRANKSHAFT,L.H

13037-066

Out of stock

13

CRANKSHAFT,R.H

13038-056

Out of stock

14

COLLAR,CRANKSHAFT

92027-212

Out of stock

15

O RING,20MM

670B2020

$1.12

In stock

16

WOODRUFF KEY

510A5100

$2.17

In stock

17

WASHER,LOCK

92024-068

Out of stock

18

NUT,LOCK,16MM

92015-072

Out of stock

19

BOLT,6X18

92001-148

$6.90

In stock

20

WASHER,LOCK,6MM

92024-066

Out of stock

21

NUT,14MM

314B1400

Out of stock

22

WASHER SPRING 14MM

461F1400

Out of stock

23

WASHER-PLAIN,14MM

92022-172

Out of stock

24

PINION,PRIMARY 19T

13121-031

Out of stock
