1976 Kawasaki Trial Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

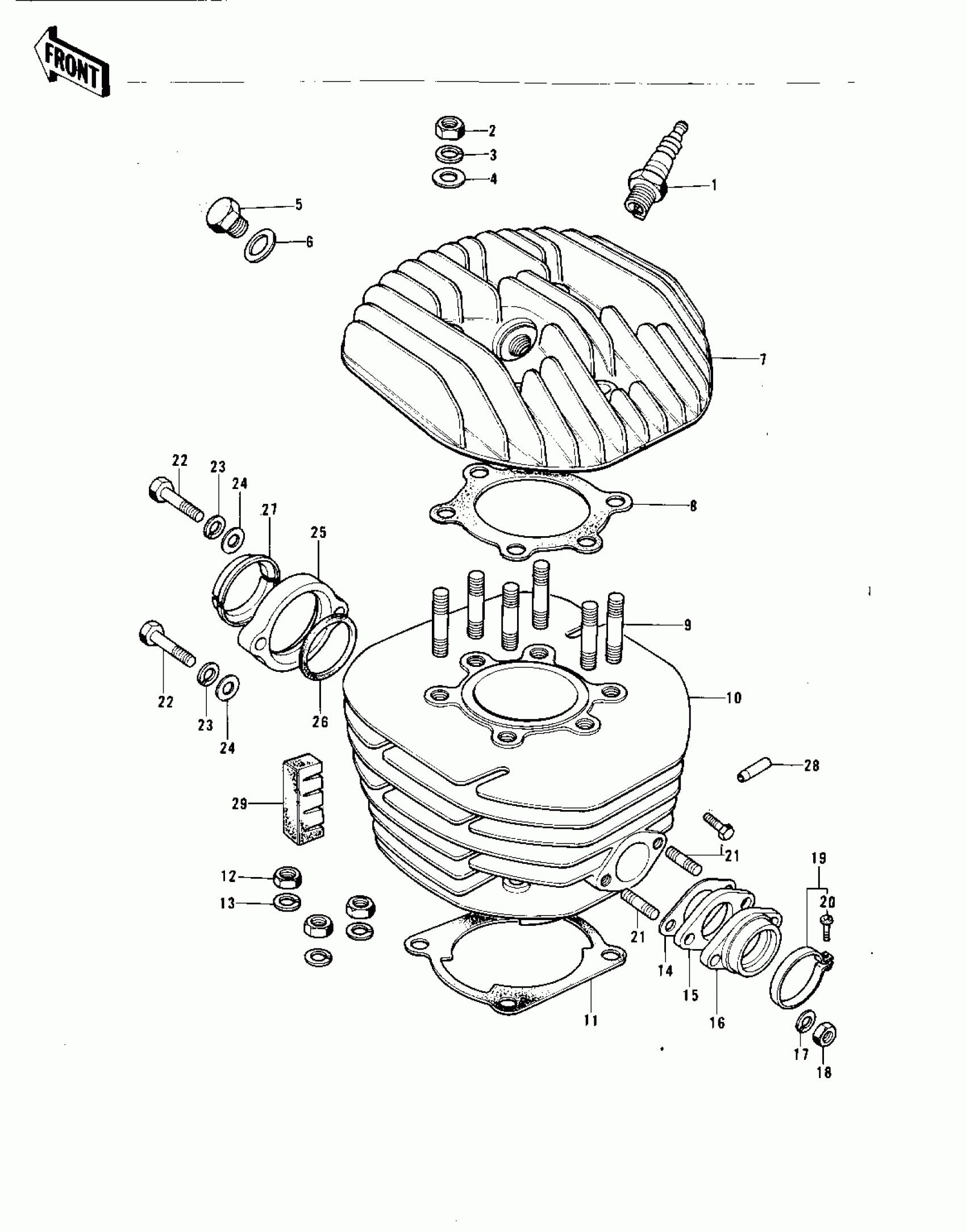

1976 Kawasaki Trial Cylinder Head/cylinder Diagram

#

Description
Price
Status
Order Qty

1

SPARK PLUG B7HS

B7HS

Out of stock

2

NUT,8MM

311B0800

Out of stock

3

WASHER SPRING 8MM

461F0800

Out of stock

4

WASHER PLAIN 8MM

410B0800

Out of stock

5

PLUG-CYLINDER HEAD

92067-005

Out of stock

6

GASKET-CYL HEAD PLUG

92065-068

Out of stock

7

CYLINDER HEAD,BUFF

11001-106-80

Out of stock

8

GASKET,CYLINDER HEAD

11004-072

Out of stock

9

STUD 8X40

172G0840

Out of stock

9

STUD,8X35

92004-1009

Out of stock

10

CYLINDER,BUFF

11005-151-80

Out of stock

11

GASKET,CYLINDER BASE

11009-038

Out of stock

12

NUT,10MM

317B1000

Out of stock

13

WASHER SPRING 10MM

461F1000

Out of stock

14

GASKET,AIR INLET

16062-019

Out of stock

15

INSULATOR,HEAT

16061-017

Out of stock

16

HOLDER,CARBURETOR

16065-031

Out of stock

17

WASHER SPRING 8MM

461F0800

Out of stock

18

NUT-HEX-SMALL,8MM

318B0800

Out of stock

19

CLAMP,HOLDER

92037-077

Out of stock

20

SCREW-PAN-CROS,5X25

220B0525

Out of stock

21

STUD,8X16

172G0816

Out of stock

21

BOLT-SOCKET,8X16

120P0816

Out of stock

22

BOLT,FLANGED,8X35

92001-1577

Out of stock

22

BOLT HEX HEAD 8X35

116B0835

Out of stock

23

WASHER SPRING 8MM

461F0800

Out of stock

24

WASHER PLAIN 8MM

410B0800

Out of stock

25

HOLDER,EXHAUST PIPE

18069-058

Out of stock

26

GASKET,EX PIPE HOLDER

18050-009

Out of stock

27

INSERT,EX PIPE HOLDER

18070-012

Out of stock

28

NOZZLE

92062-009

Out of stock

29

DAMPER RUBBER-CYLNDER

92075-142

Out of stock
