1970 Yamaha TR2 (TR2) Front Fork-Front Fender Diagram

← All diagrams

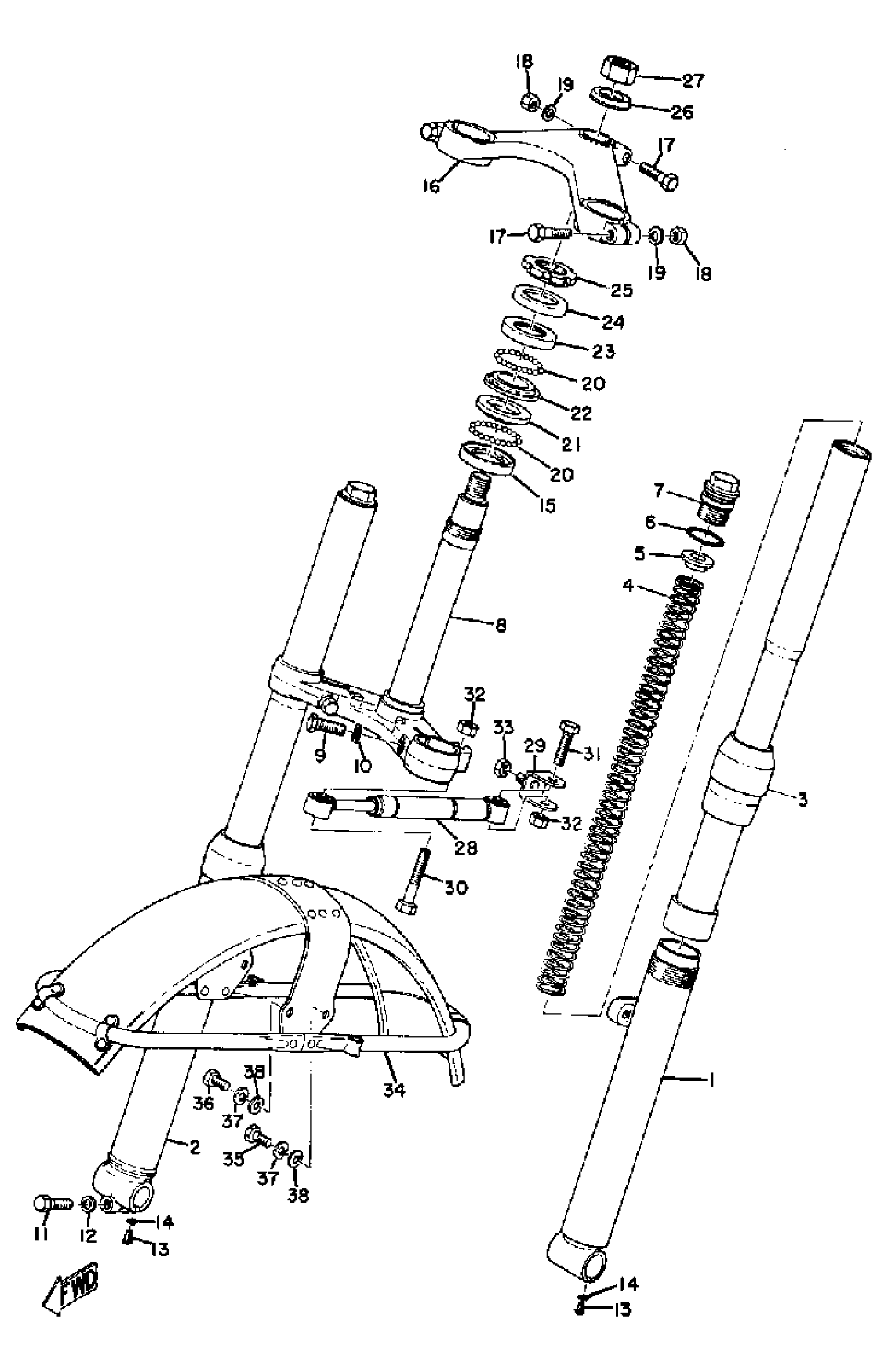

Find the part on the Front Fork-Front Fender diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Front Fork-Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(240-23100-00-33)

1
Out of stock

1

TUBE, OUTER 1

(240-23126-00-33)

1
Out of stock

2

TUBE, OUTER 2

(240-23136-00-33)

1
Out of stock

3

TUBE, INNER 1

(240-23124-00-00)

1
Out of stock

4

SPRING, FRONT FORK

(240-23141-01-00)

1
Out of stock

5

SEAT, SPRING UPPER

(240-23142-00-00)

1
Out of stock

6

GASKET

240-23114-00-00

1

$12.27

In stock

7

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

8

UNDER BRACKET

(328-23340-00-33)

1
Out of stock

9

BOLT 1

122-23346-02-00

1

$6.25

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

14

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

15

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

16

CROWN, HANDLE

(240-23435-00-00)

1
Out of stock

17

BOLT

97014-08040-00

—

$5.26

In stock

18

NUT(6L2)

95333-08600-00

—

$3.20

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

20

BALL

93501-04011-00

—
Out of stock

21

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

22

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

23

RACE, BALL 1

4FP-F3411-20-00

—

$8.70

In stock

24

COVER, BALL RACE

136-23415-00-00

—

$7.71

In stock

25

NUT

90179-25004-00

—

$20.78

In stock

26

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

27

NUT (95301-16600)

95303-16600-00

1
Out of stock

28

HDLBR SMY DMPR ASSEMBLY

(240-23490-00-00)

1
Out of stock

29

JOINT

59W-23491-00-00

1
Out of stock

30

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

31

BOLT

97013-08045-00

—
Out of stock

32

NUT, U

95617-08100-00

—

$6.78

In stock

32

NUT, U

95617-08100-00

—

$6.78

In stock

33

. NUT

95380-08700-00

1

$3.07

In stock

34

FENDER, FRONT

(240-21510-00-01)

1
Out of stock

35

BOLT, FLAT HD.DRILL

(95201-08015-00)

1
Out of stock

36

BOLT, HEAD W/HOLE

(90103-08005-00)

1
Out of stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

38

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
