1970 Yamaha TR2 (TR2) Transmission Diagram

← All diagrams

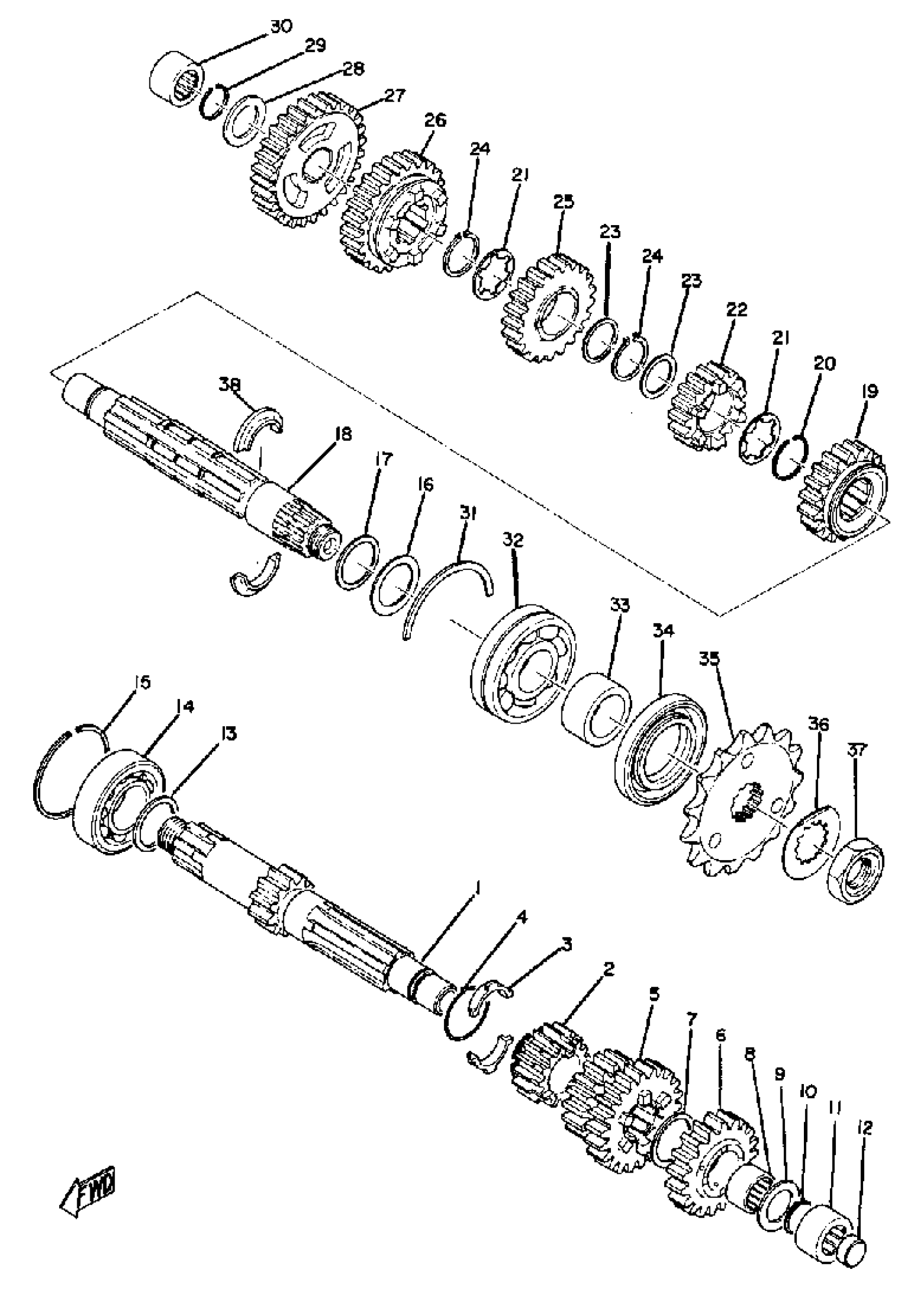

Find the part on the Transmission diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(239-17411-00-00)

1
Out of stock

2

GEAR, 2ND PINION

(239-17121-00-00)

1
Out of stock

2

GEAR, 2ND WHEEL

(239-17221-00-00)

1
Out of stock

3

PLATE, SETTING

(156-17115-00-00)

1
Out of stock

4

CLIP

(90468-14036-00)

1
Out of stock

5

GEAR, 3RD PINION

(239-17131-00-00)

1
Out of stock

6

GEAR, 4TH PINION

(239-17141-00-00)

1
Out of stock

7

WASHER, GEAR HOLD 2

(168-17126-00-00)

1
Out of stock

8

BEARING, CYLINDER.#10

(93310-22023-00)

1
Out of stock

9

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

10

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

11

BEARING, CYLINDER.#11

(93311-41703-00)

1
Out of stock

12

PLUG(12Y)

90338-16029-00

—

$6.85

In stock

13

SHIM 1

156-17417-00-01

1
Out of stock

13

SHIM 1 (25.1-31-0.2)

156-17417-00-02

1
Out of stock

13

SHIM 1

156-17417-00-03

1
Out of stock

14

BEARING

(93306-20505-00)

1
Out of stock

15

CIRCLIP (168)

93440-52009-00

—
Out of stock

16

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

17

SHIM 1

156-17417-00-01

1
Out of stock

17

SHIM 1 (25.1-31-0.2)

156-17417-00-02

1
Out of stock

17

SHIM 1

156-17417-00-03

1
Out of stock

18

AXLE, DRIVE

(168-17421-01-00)

1
Out of stock

19

GEAR, 4TH WHEEL

(239-17241-00-00)

1
Out of stock

20

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

21

WASHER, SPEC''L SHAP

(90209-21081-00)

1
Out of stock

22

GEAR, 5TH WHEEL

(239-17251-00-00)

1
Out of stock

23

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

24

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

25

GEAR, 3RD WHEEL

(239-17231-00-00)

1
Out of stock

27

GEAR, 1ST WHEEL

(239-17211-00-00)

1
Out of stock

28

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

29

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

30

BEARING, CYLINDER.#11

(93311-21704-00)

1
Out of stock

31

CIRCLIP 1

168-17424-00-00

1
Out of stock

32

BRG,R-B 6305 62MM 225G NK

93306-30504-00

—
Out of stock

33

COLLAR

(90387-25195-00)

1
Out of stock

34

OIL SEAL, SD-TYPE

(93102-35038-00)

1
Out of stock

35

SPROCKET, DRIVE

9383E-16105-00

1
Out of stock

35

SPROCKET, DRIVE

(170-17461-80-00)

1
Out of stock

35

SPROCKET, DRIVE

(170-17461-90-00)

1
Out of stock

35

SPROCKET, DRIVE

(9383E-17122-00)

1
Out of stock

36

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

37

NUT 152174630000

90179-18020-00

—
Out of stock

38

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock
