1970 Yamaha TR2 (TR2) Swing ARM-Rear Shocks Diagram

← All diagrams

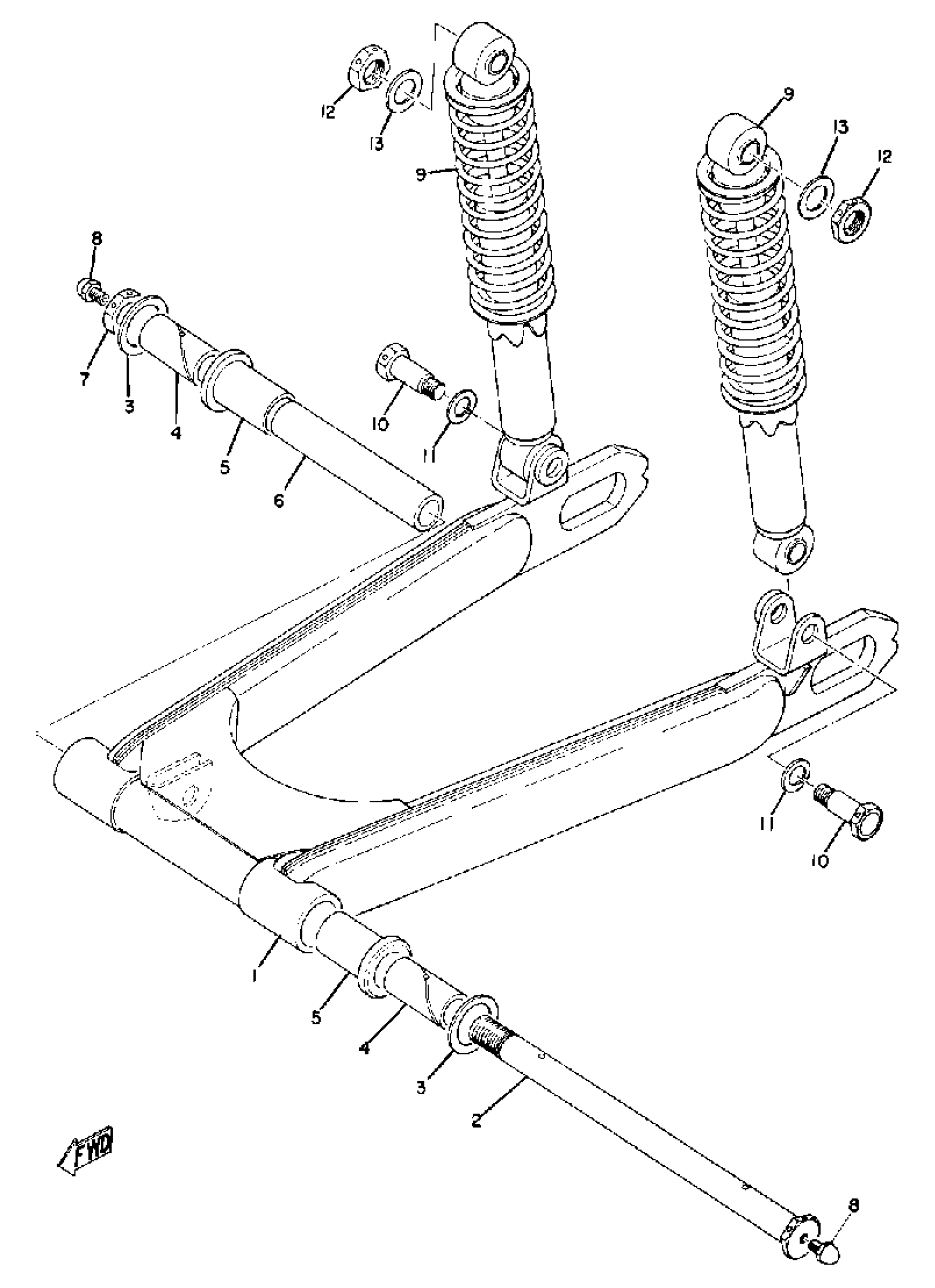

Find the part on the Swing ARM-Rear Shocks diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Swing ARM-Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(239-22110-00-33)

1
Out of stock

2

SHAFT, PIVOT

(240-22141-00-00)

1
Out of stock

3

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

4

COLLAR

90387-16226-00

1
Out of stock

5

BUSH 1482212300

90386-22018-00

1

$31.31

In stock

6

COLLAR

90387-16128-00

1
Out of stock

7

NUT, SPEC''L SHAPE

90179-16028-00

1
Out of stock

8

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

9

SHK/ABS ASSEMBLY, REAR

(240-22210-20-00)

1
Out of stock

10

BOLT

(90109-10212-00)

1
Out of stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

NUT, SPEC''L SHAPE

(90179-10119-00)

1
Out of stock

13

1

$3.00

In stock
← Rear Wheel Handle-Wire →

More Suspension & Wheels diagrams
