1970 Yamaha TR2 (TR2) Rear Wheel Diagram

← All diagrams

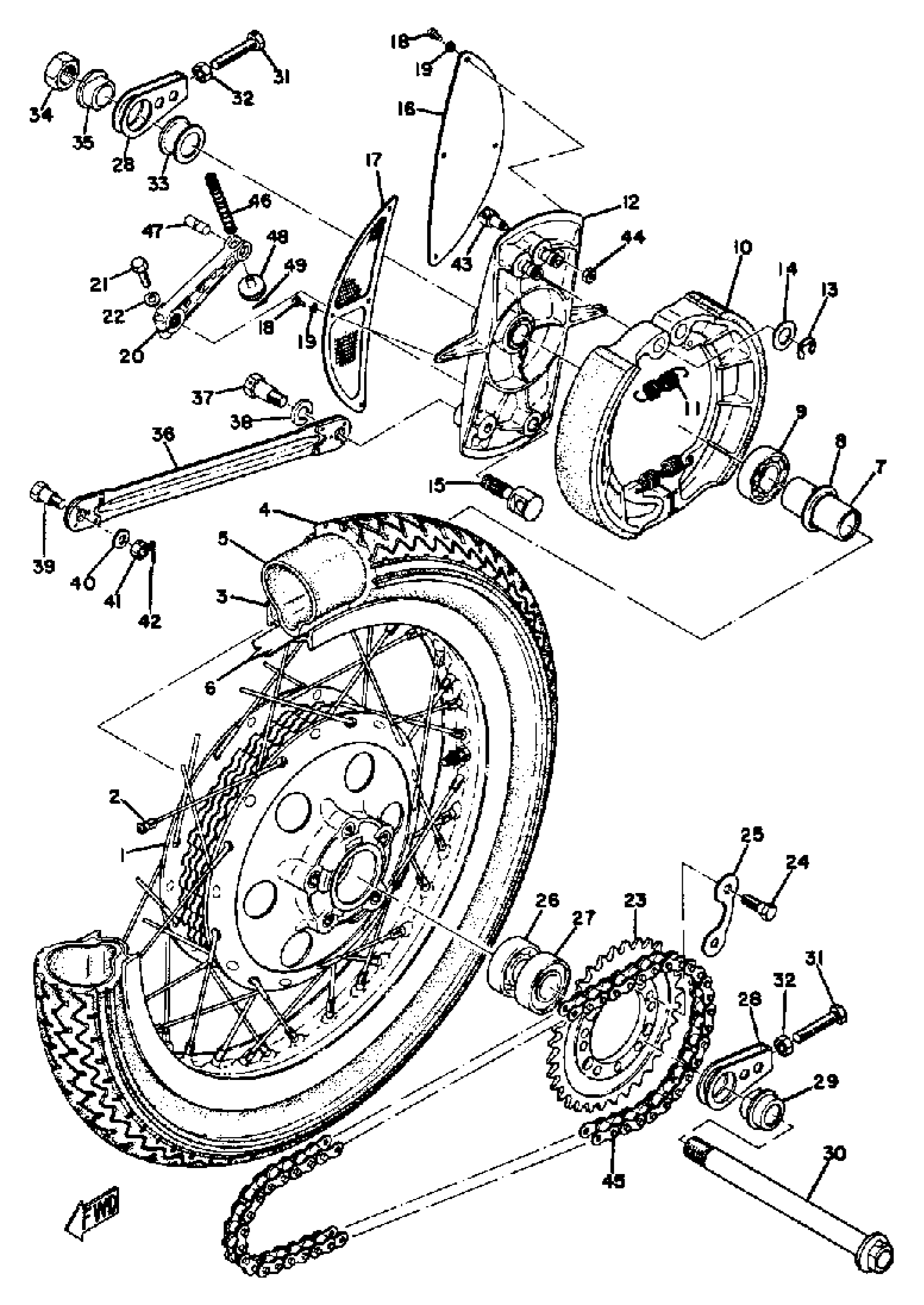

Find the part on the Rear Wheel diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(240-25311-00-00)

1
Out of stock

1

. JOINT CHAIN

94680-11001-00

1
Out of stock

2

SPOKE SET, REAR

(240-25304-00-00)

1
Out of stock

3

RIM 2.15X18

(94421-18050-00)

1
Out of stock

4

TOOL

UNA-VAILA-BL-EI

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK (94230-18012)

94230-18814-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER, BEARING

(240-25317-00-00)

1
Out of stock

8

FLANGE, SPACER

4V4-25315-00-00

1
Out of stock

9

BEARING (22K)

93306-20446-00

1
Out of stock

10

BRAKE SHOE

(240-25330-00-00)

1
Out of stock

11

SPRING, RETURN

(240-25333-00-00)

1
Out of stock

12

PLATE, BRAKE SHOE

(239-25321-00-00)

1
Out of stock

13

CIRCLIP (137)

93430-10015-00

1
Out of stock

14

SHIM, CAM SHAFT

148-25353-00-00

1

$6.40

In stock

15

CAMSHAFT

(240-25351-00-00)

1
Out of stock

16

COVER, PLATE

(240-25327-00-00)

1
Out of stock

17

COVER, SUCTION

(240-25348-00-00)

1
Out of stock

18

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

19

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

20

LEVER, CAMSHAFT

(240-25355-00-00)

1
Out of stock

21

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

SPROCKET, DRIVN 29T

(240-25429-00-00)

1
Out of stock

23

SPROCKET, DRIVN 30T

(240-25430-00-00)

1
Out of stock

23

SPROCKET, DRIVN 31T

(240-25431-00-00)

1
Out of stock

23

SPROCKET, DRIVN 32T

240-25432-00-00

1
Out of stock

23

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

23

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

23

SPROCKET,DRIVN 34T

240-25434-00-00

1
Out of stock

23

SPROCKET, DRIVEN (38T)

4TW-25438-02-00

1
Out of stock

23

SPROCKET, DRIVEN (36T)

4TW-25436-02-00

1
Out of stock

23

SPROCKET, DRIVEN (37T)

4TW-25437-02-00

1
Out of stock

24

BOLT

90109-08369-00

1
Out of stock

25

WASHER, LOCK

143-25412-00-00

1
Out of stock

26

—

$54.91

In stock

27

BEARING(3BC)

93306-30437-00

—

$55.54

In stock

28

PULLER, CHAIN 1

(240-25388-00-00)

1
Out of stock

29

COLLAR, WHEEL

(240-25377-00-00)

1
Out of stock

30

AXLE, WHEEL

(240-25381-00-00)

1
Out of stock

31

BOLT

90101-08060-00

—

$4.92

In stock

32

. NUT

95380-08700-00

1

$3.07

In stock

33

COLLAR

(90387-20167-00)

1
Out of stock

34

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

35

WASHER, WHEEL

(240-25384-00-00)

1
Out of stock

36

BAR, TENSION

(168-25371-00-00)

1
Out of stock

37

BOLT

(90109-10085-00)

1
Out of stock

38

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

39

BOLT

90109-08375-00

1
Out of stock

40

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

41

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

42

PIN, COTTER

91490-20025-00

—

$1.31

In stock

43

HOLDER, ADJUSTING

(240-26396-00-00)

1
Out of stock

44

NUT(650)

95380-06700-00

—

$6.17

In stock

45

520 DS 110L

94585-20110-00

1
Out of stock

46

SPRING, COMPRESSION

90501-09052-00

1
Out of stock

47

PIN, SPEC''L SHAPE

(90249-10073-00)

1
Out of stock

48

NUT, SPEC''L SHAPE

(90179-05154-00)

1
Out of stock

49

. PIN, COTTER

91490-12012-00

1

$2.77

In stock
