1970 Yamaha TR2 (TR2) Front Wheel Diagram

← All diagrams

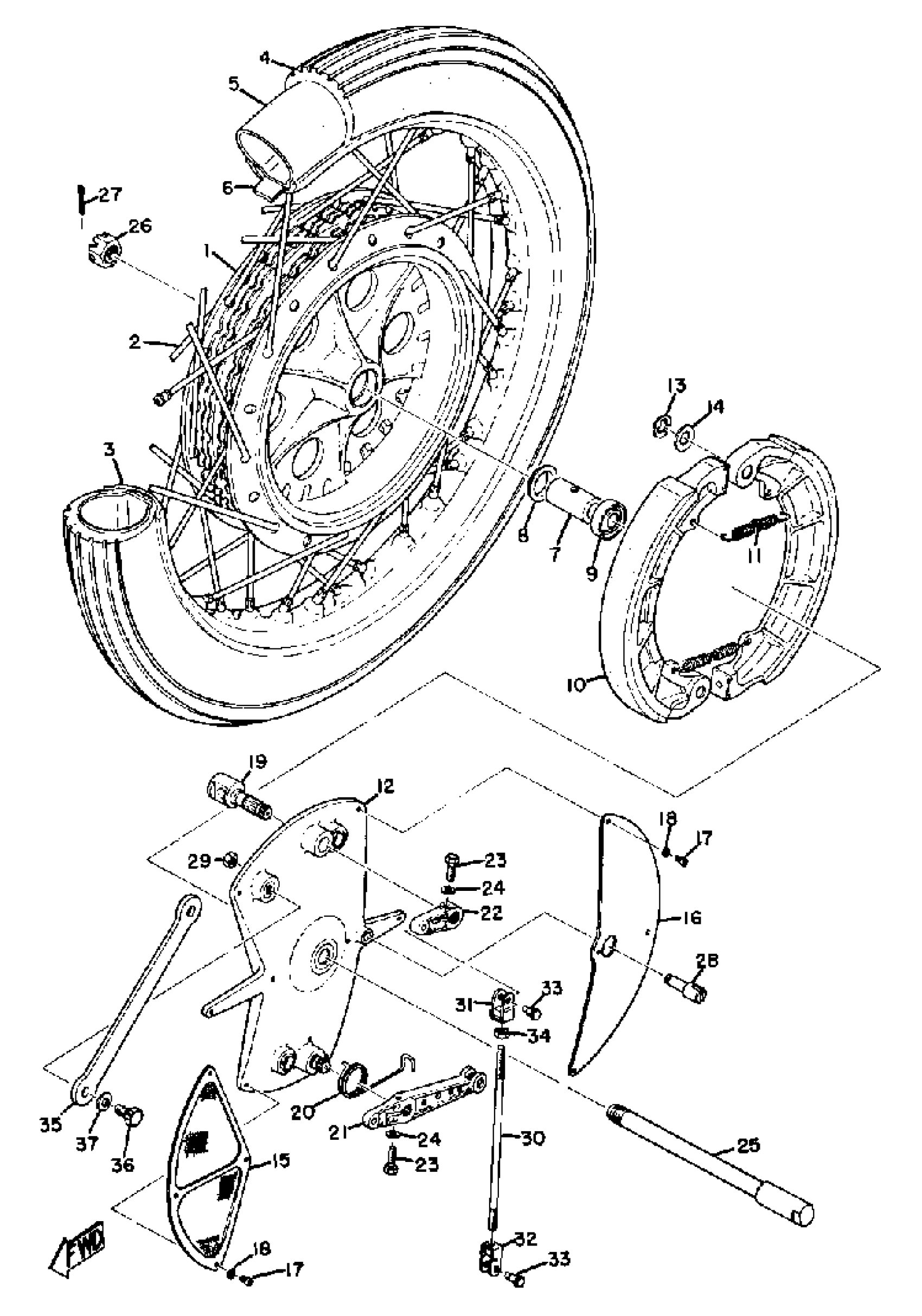

Find the part on the Front Wheel diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(240-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(240-25104-00-00)

1
Out of stock

3

RIM 1.85X18

(94418-18047-00)

1
Out of stock

4

TOOL

UNA-VAILA-BL-EI

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER(1ET)

90560-15290-00

1

$17.32

In stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

10

UNAVAILABLE IN PRICE BOOK

240-25120-00-00

1
Out of stock

11

SPRING, RETURN

(240-25133-00-00)

1
Out of stock

12

PLATE, BRAKE SHOE

(240-25121-00-00)

1
Out of stock

12

PLATE, BRAKE SHOE 2

(240-25169-00-00)

1
Out of stock

13

CIRCLIP (137)

93430-10015-00

1
Out of stock

14

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

15

COVER, SUCTION

(240-25148-00-00)

1
Out of stock

16

COVER, PLATE

(240-25127-00-00)

1
Out of stock

17

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

18

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

19

CAMSHAFT

(240-25151-00-00)

1
Out of stock

20

SPRING, TORSION

(90508-20026-00)

1
Out of stock

20

SPRING, TORSION

(90508-20027-00)

1
Out of stock

21

LEVER, CAMSHAFT 1

(240-25155-00-00)

1
Out of stock

22

LEVER, CAMSHAFT 2

(240-25156-00-00)

1
Out of stock

23

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

AXLE, WHEEL

(240-25181-00-00)

1
Out of stock

26

NUT, CASTLE

(90171-15010-00)

1
Out of stock

27

PIN, COTTER

91490-30030-00

—

$7.15

In stock

28

HOLDER, ADJUSTING

(240-26381-00-00)

1
Out of stock

29

NUT(650)

95380-06700-00

—

$6.17

In stock

30

ROD, CONNECTING

(240-25161-00-00)

1
Out of stock

31

END, ROD 1

152-25163-00-00

1
Out of stock

32

END, ROD 2

152-25164-00-00

1
Out of stock

33

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

34

NUT(650)

95380-06700-00

—

$6.17

In stock

35

BAR, TENSION

(240-25171-00-00)

1
Out of stock

36

BOLT, HEAD W/HOLE

(90103-08005-00)

1
Out of stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
