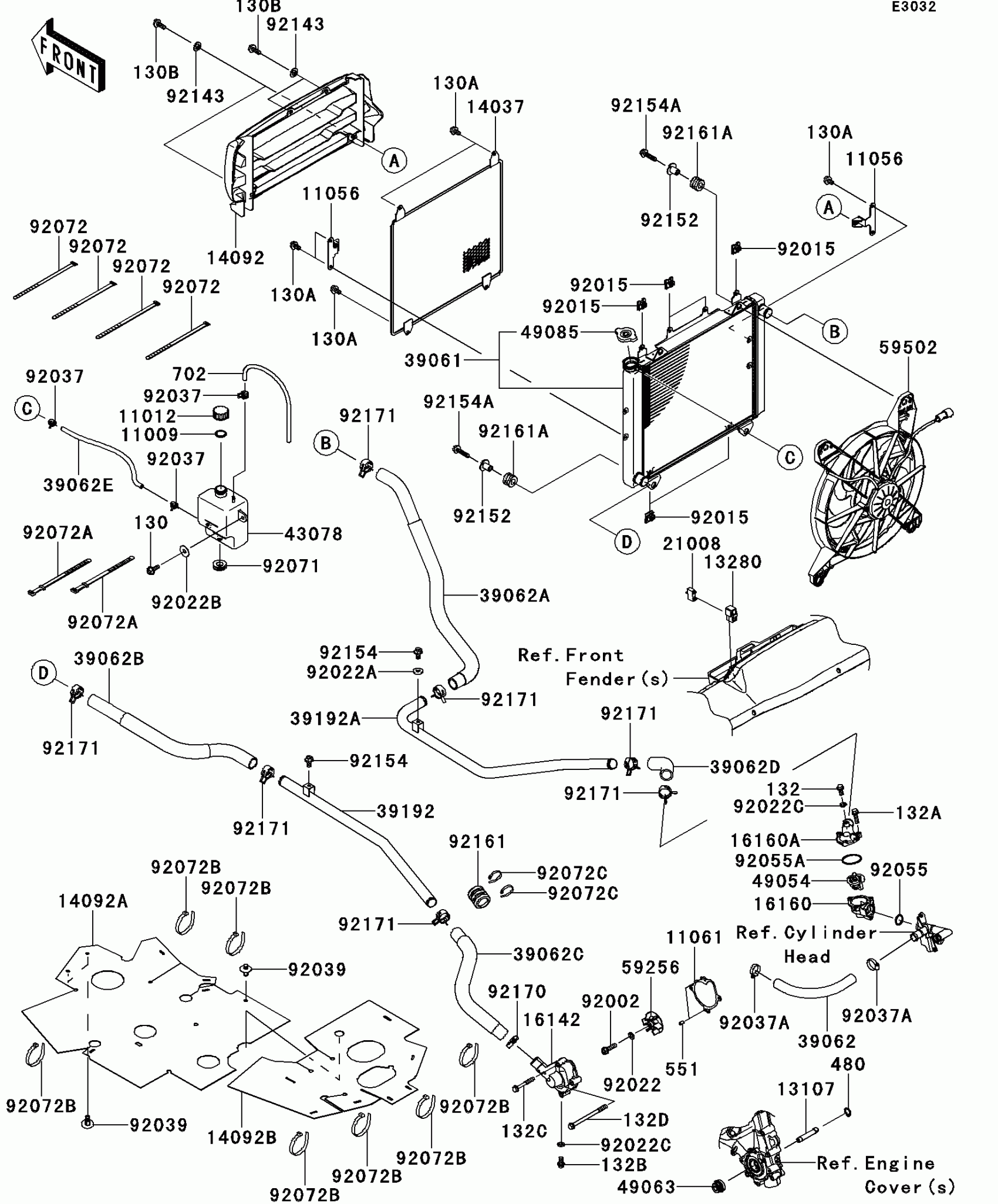

Kawasaki Teryx4™ 750 4x4 EPS LE Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11056

BRACKET

11056-0722

$10.12

11061

GASKET,WATER PUMP COVER

11061-0731

$6.90

13107

SHAFT,WATER PUMP

13107-0719

$17.44

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN

14037-0739

$138.59

14092

COVER,RADIATOR,F.BLACK

14092-0086-6Z

$32.30

14092A

COVER,FR

14092-0900

$47.46

14092B

COVER,RR

14092-0901

$28.90

16142

COVER-PUMP,WATER

16142-0705

$65.17

16160

BODY,THERMOSTAT,LWR

16160-0189

$71.04

16160A

BODY,THERMOSTAT,UPP

16160-0225

$68.51

21008

BREAKER,RAD. FAN,20A

21008-0554

$28.82

39061

RADIATOR-ASSY

39061-0568

$489.18

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0316

$11.58

39062A

HOSE-COOLING,RADIATOR IN

39062-0578

Unavailable

39062B

HOSE-COOLING,RADIATOR OUT

39062-0579

Unavailable

39062C

HOSE-COOLING,WATER PUMP IN

39062-0580

$32.71

39062D

HOSE-COOLING,THERMO OUT

39062-0581

$14.97

39062E

HOSE-COOLING,RESERVOIR-RAD.

39062-0582

$5.81

39192

PIPE-WATER,LH

39192-0555

$35.35

39192A

PIPE-WATER,RH

39192-0556

$37.88

43078

RESERVOIR

43078-0070

$39.99

49054

THERMOSTAT

49054-1055

$48.15

49063

SEAL-MECHANICAL

49063-1055

$16.33

49085

CAP-ASSY-PRESSURE

49085-0005

$40.29

59256

IMPELLER

59256-0555

$37.62

59502

FAN-ASSY

59502-0557

Unavailable

92002

BOLT,6X22

92002-1154

$3.57

92015

NUT

92015-1487

$3.64

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,6.5X16X2

92022-1565

$2.99

92022B

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022C

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP,COOLING HOSE

92037-1589

$14.01

92039

RIVET

92039-0086

$4.18

92055

RING-O,22.1X2.4

92055-1081

$3.57

92055A

RING-O,44.7X2.4

92055-1279

$5.61

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

130B

BOLT-FLANGED,6X14

130BB0614

$1.77

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132B

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132C

BOLT-FLANGED-SMALL,6X40

132BD0640

$3.99

132D

BOLT-FLANGED-SMALL,6X80

132BD0680

$5.44

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

551

PIN-DOWEL,4X8

551A0408

$0.68

702

TUBE-RUBBER,5X8X1375

702A051375

$13.56

92071

GROMMET

92071-1115

$4.14

92072

BAND,L=218

92072-032

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=250

92072-1237

$1.55

92072C

BAND,L=188

92072-1239

$1.30

92143

COLLAR

92143-1087

$2.98

92152

COLLAR

92152-1512

$8.32

92154

BOLT,FLANGED,6X12

92154-0485

$1.44

92154A

BOLT,FLANGED,6X25

92154-0498

$1.66

92161

DAMPER,FUEL TANK,RR

92161-1111

$5.53

92161A

DAMPER

92161-1349

$0.60

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

92171

CLAMP,COOLING HOSE

92171-0060

$3.36
