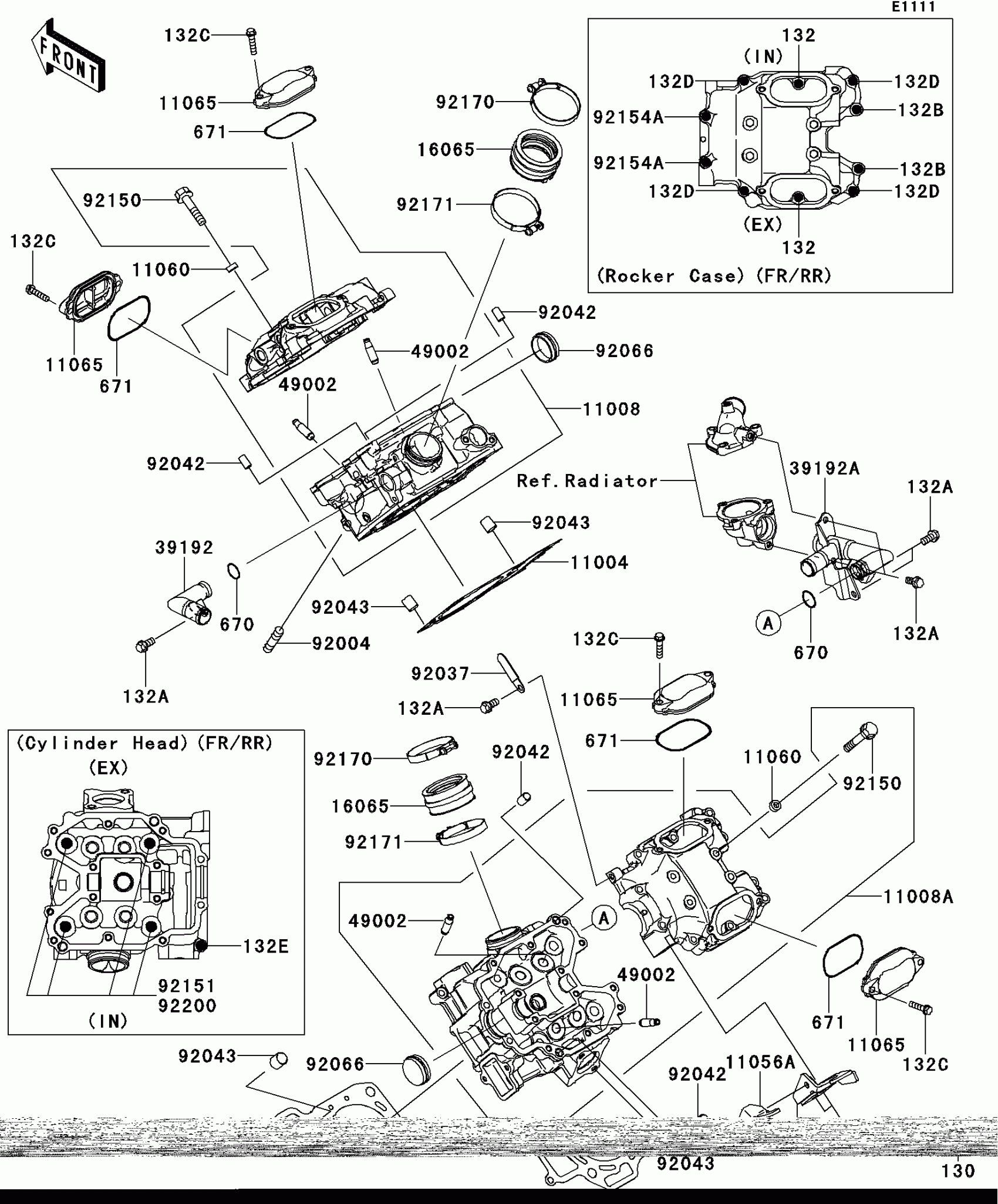

Kawasaki Teryx4™ 750 4x4 EPS LE Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-0713

$30.02

11008

HEAD-COMP-CYLINDER,FR

11008-0735

$1,026.19

11008A

HEAD-COMP-CYLINDER,RR

11008-0736

$1,026.19

11056

BRACKET

11056-1410

$22.83

11056A

BRACKET

11056-1411

$3.44

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

11065

CAP,ROCKER CASE

11065-0724

$10.77

130

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132B

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

132C

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.09

132D

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132E

BOLT-FLANGED-SMALL,6X95

132BD0695

$5.69

16065

HOLDER-CARBURETOR

16065-0118

$13.86

39192

PIPE-WATER,FR

39192-0119

$37.14

39192A

PIPE-WATER,RR

39192-0120

$86.54

49002

GUIDE-VALVE

49002-0706

$25.56

670

O RING,16MM

670B2016

$1.04

671

O RING,55MM

671D2555

$2.76

92004

STUD,8X22

92004-1217

$4.27

92037

CLAMP

92037-1993

$4.18

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10.1X12X14

92043-4009

$4.67

92066

PLUG

92066-1289

$10.91

92150

BOLT,6X55

92150-1302

$4.78

92151

BOLT,FLANGED,10X150

92151-1917

$16.19

92154

BOLT,FLANGED,8X20

92154-0885

$1.66

92154A

BOLT,FLANGED,6X130

92154-0993

$3.93

92170

CLAMP

92170-1448

$6.18

92171

CLAMP

92171-0722

$11.53

92200

WASHER,11.5X20.5X1.6

92200-1128

$4.18
