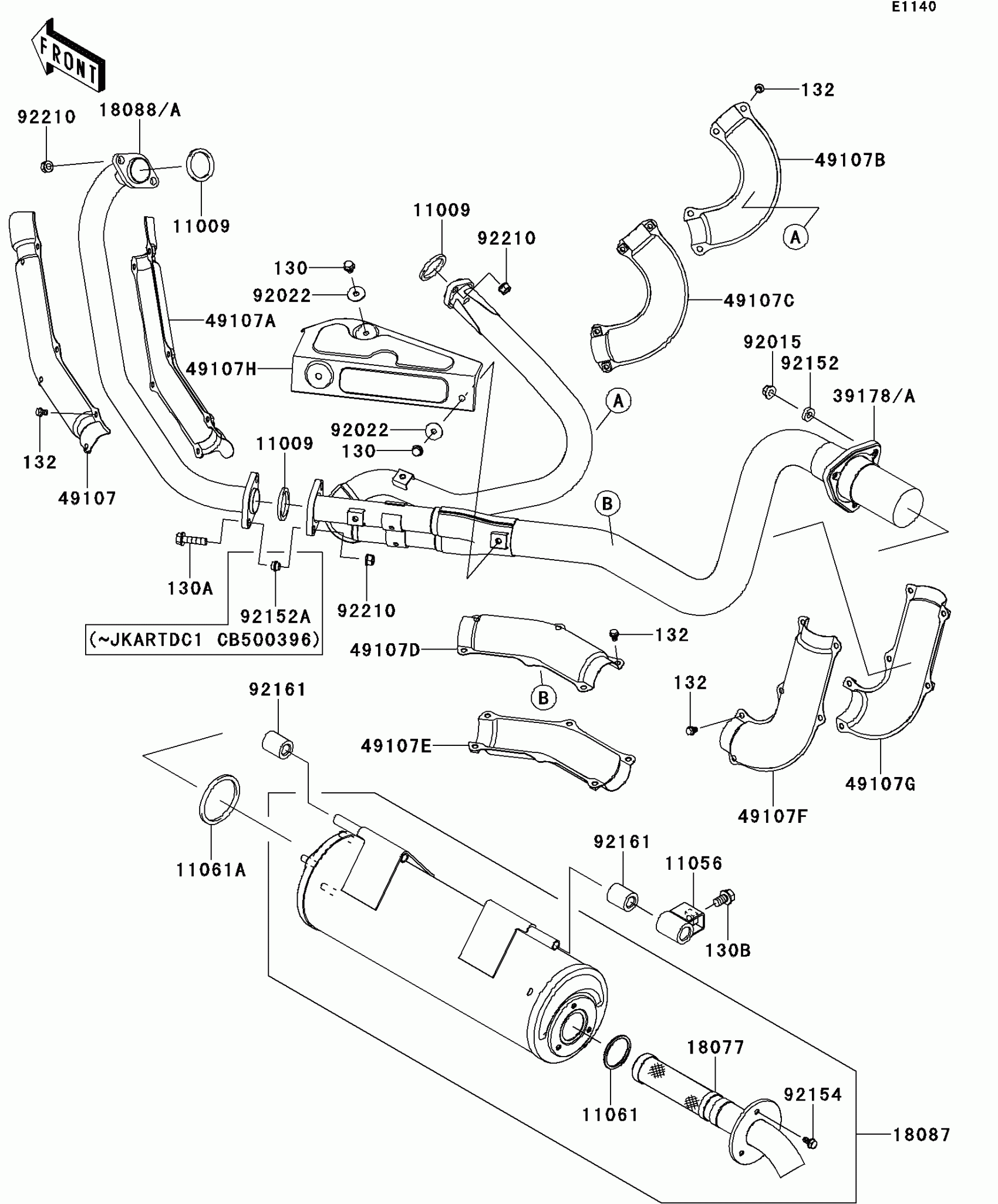

Kawasaki Teryx4™ 750 4x4 EPS LE Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST HOLDER

11009-1894

$6.13

11056

BRACKET

11056-0727

$22.24

11061

GASKET,38.9X46.4X3.0

11061-0082

$5.80

11061A

GASKET,PIPE-MUFFLER

11061-0811

$6.69

130

BOLT-FLANGED,6X10

130BD0610

$2.63

130A

BOLT-FLANGED,8X30

130BD0830

$1.43

130B

BOLT-FLANGED,10X16

130CA1016

$2.31

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$2.34

18077

ARRESTER-SPARK

18077-0702

$172.15

18087

MUFFLER

18087-0259

$768.72

18088

PIPE-EXHAUST

18088-0824

$266.57

39178A

MANIFOLD-COMP-EXHAUST

39178-0185

$1,145.20

49107

COVER-EXHAUST PIPE,FR,LH

49107-0727

$37.29

49107A

COVER-EXHAUST PIPE,FR,RH

49107-0728

$48.12

49107B

COVER-EXHAUST PIPE,MIDDLE,RH

49107-0729

$26.51

49107C

COVER-EXHAUST PIPE,MIDDLE,LH

49107-0730

$33.75

49107D

COVER-EXHAUST PIPE,RR-F,UPP

49107-0731

$31.24

49107E

COVER-EXHAUST PIPE,RR-F,LWR

49107-0732

$37.33

49107F

COVER-EXHAUST PIPE,RR-R,LH

49107-0733

$35.40

49107G

COVER-EXHAUST PIPE,RR-R,RH

49107-0734

$44.77

49107H

COVER-EXHAUST PIPE,MANIFOLD

49107-0739

$49.99

92015

NUT,8MM

92015-1402

$3.57

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92152

COLLAR,8.2X17X4.5

92152-1609

$5.79

92154

BOLT,FLANGED,6X12

92154-0852

$0.95

92161

DAMPER

92161-0961

$19.69

92210

NUT,8MM

92210-1242

$1.73
