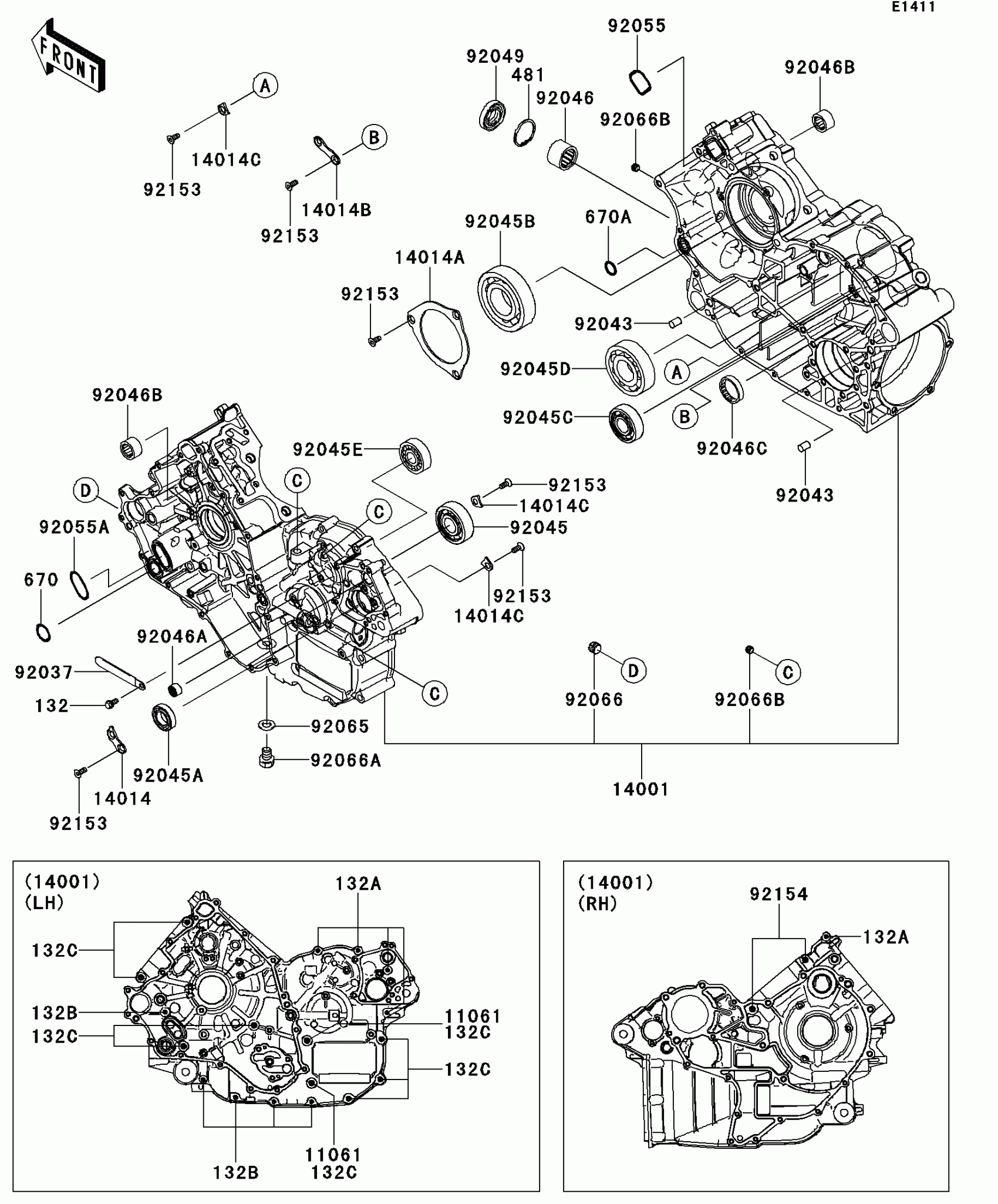

Kawasaki Teryx4™ 750 4x4 EPS LE Crankcase Diagram

#

Description
Price

11061

GASKET,8.2X15

11061-0727

$1.93

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132A

BOLT-FLANGED-SMALL,6X40

132BD0640

$3.99

132B

BOLT-FLANGED-SMALL,6X55

132BD0655

$4.46

132C

BOLT-FLANGED-SMALL,8X75

132BD0875

$2.53

14001

SET-CRANKCASE

14001-0554

$1,327.61

14014

PLATE-POSITION

14014-0553

$4.95

14014A

PLATE-POSITION

14014-0554

$24.95

14014B

PLATE-POSITION

14014-0555

$4.95

14014C

PLATE-POSITION

14014-0557

$3.29

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

670

O RING,22MM

670B2022

$3.57

670A

O RING,16MM

670D2016

$1.24

92037

CLAMP

92037-1993

$4.18

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,63/22LUA

92045-0704

$31.17

92045A

BEARING-BALL,6904

92045-0705

$21.00

92045B

BEARING-BALL,6308YA3-T2C3

92045-0706

$57.37

92045C

BEARING-BALL,TAB304LUA

92045-0730

$37.37

92045D

BEARING-BALL,63/32C3

92045-1364

$43.42

92045E

BEARING-BALL,6303LUA

92045-1389

$17.52

92046

BEARING-NEEDLE

92046-0022

$20.25

92046A

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92046B

BEARING-NEEDLE,TA202715ZE

92046-1118

$17.82

92046C

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$29.14

92049

SEAL-OIL,TCY 28X42X8

92049-1570

$13.05

92055

RING-O,33X2.6

92055-0723

$1.43

92055A

RING-O,31.2X2.4

92055-0724

$2.76

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,BREATHER

92066-1035

$12.36

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066B

PLUG,PT1/8X7

92066-1227

$5.15

92153

BOLT,6X11.7

92153-0848

$2.22

92154

BOLT,FLANGED,8X95

92154-0835

$4.68
