2024 Kawasaki Teryx KRX®4 1000 Es Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2024 Kawasaki Teryx KRX®4 1000 Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

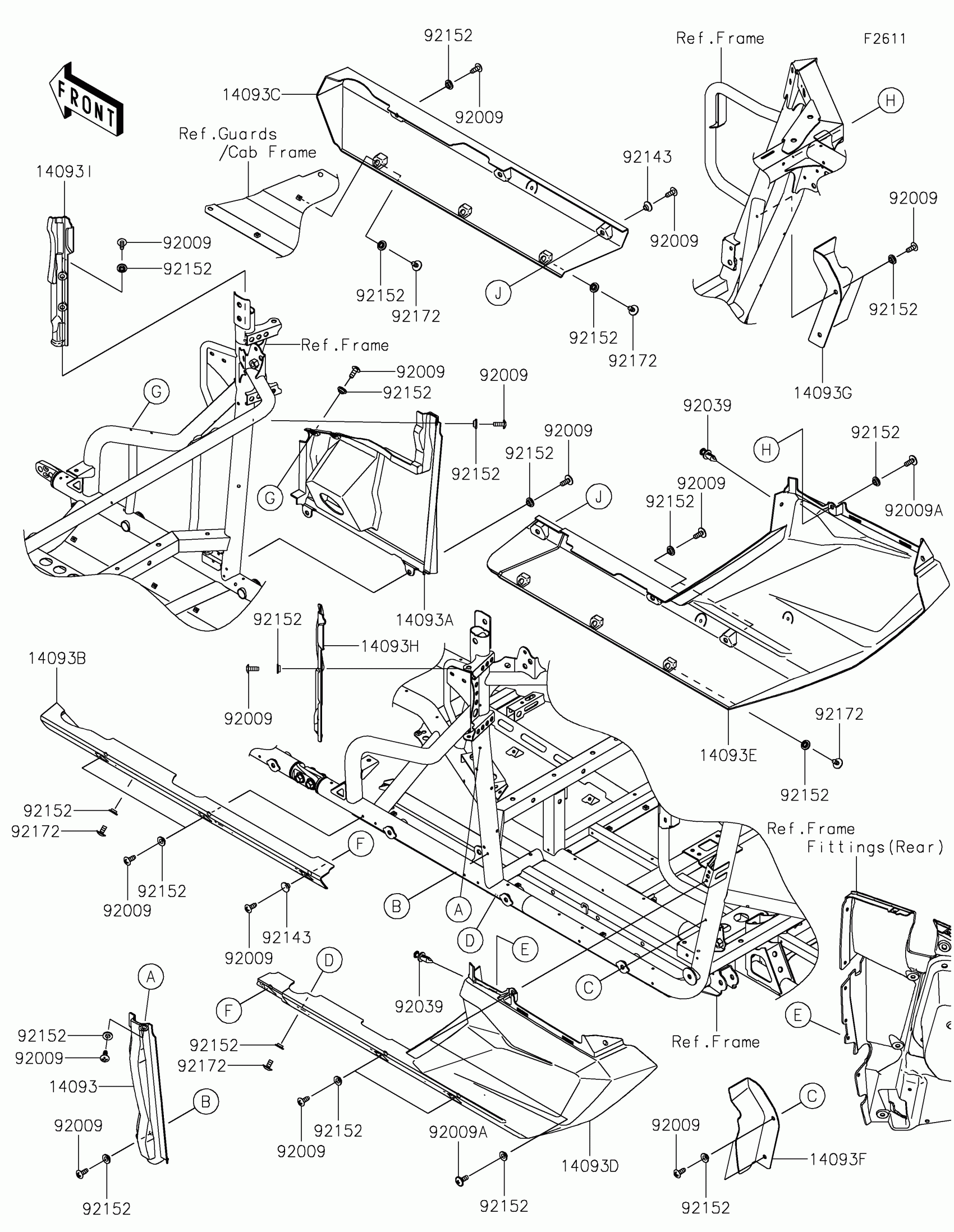

2024 Kawasaki Teryx KRX®4 1000 Es Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

1

$5.76

In stock

14093A

1

$19.15

In stock

14093B

COVER,SIDE,LH,FR

14093-1235

1

$14.02

In stock

14093C

COVER,SIDE,RH,FR

14093-1236

1

$16.66

In stock

14093D

COVER,SIDE,LH,RR

14093-1237

1

$57.51

In stock

14093E

COVER,SIDE,RH,RR

14093-1238

1

$52.27

In stock

14093F

COVER,SIDE,LH,INNER

14093-1243

1

$4.51

In stock

14093G

COVER,SIDE,RH,INNER

14093-1244

1

$4.51

In stock

14093H

1

$5.51

In stock

14093I

1

$5.51

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92039

RIVET

92039-0776

1

$0.80

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1

$4.75

In stock

92172

SCREW,6X12

92172-0853

1

$1.03

In stock
