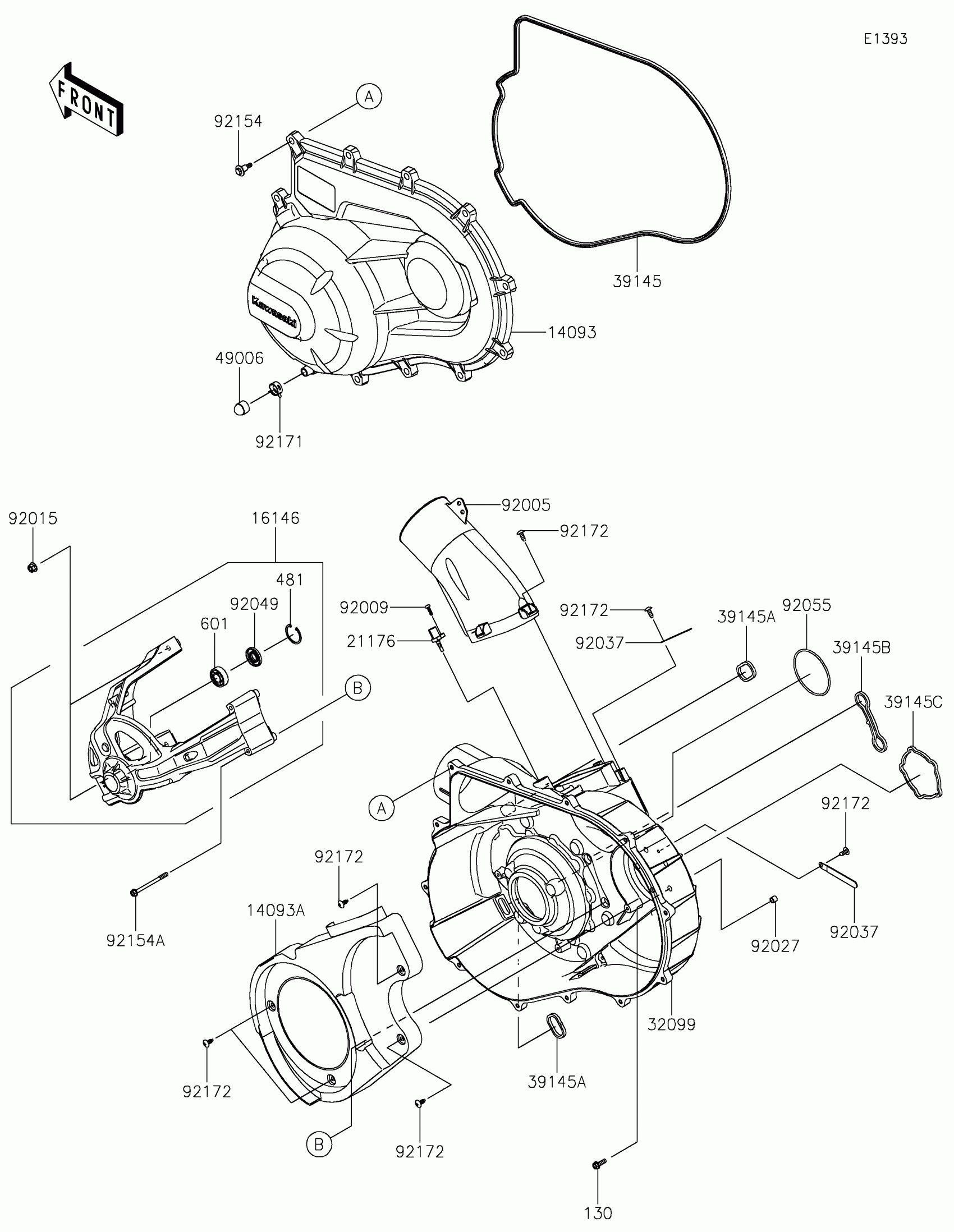

Kawasaki Teryx KRX®4 1000 eS Converter Cover Diagram

Description

Price

14093

COVER,CVT

14093-0774

$185.22

14093A

COVER

14093-0775

$38.26

16146

COVER-ASSY

16146-0840

$116.22

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

32099

CASE,CVT

32099-0795

$273.57

39145

TRIM-SEAL,CVT COVER

39145-0711

$41.56

39145A

TRIM-SEAL

39145-0712

$1.81

39145B

TRIM-SEAL

39145-0713

$3.63

39145C

TRIM-SEAL

39145-0714

$6.07

49006

BOOT,DRAIN

49006-3718

$4.94

92005

FITTING

92005-0978

$30.91

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$3.24

92027

COLLAR,6.8X10X8.5

92027-129

$3.81

92037

CLAMP

92037-1993

$4.18

92049

SEAL-OIL,TC 15X35X6

92049-0816

$7.89

92055

RING-O,84.4X3.1

92055-0916

$3.55

92154

BOLT,CVT COVER

92154-1522

$2.27

92154A

BOLT,6X80

92154-3862

$2.71

92171

CLAMP

92171-0329

$6.77

92172

SCREW,6X16

92172-0284

$0.90

130

BOLT-FLANGED,6X20

130BA0620

$1.28

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL,#6202C3

601B6202

$6.58
