2024 Kawasaki Teryx KRX®4 1000 eS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2024 Kawasaki Teryx KRX®4 1000 eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

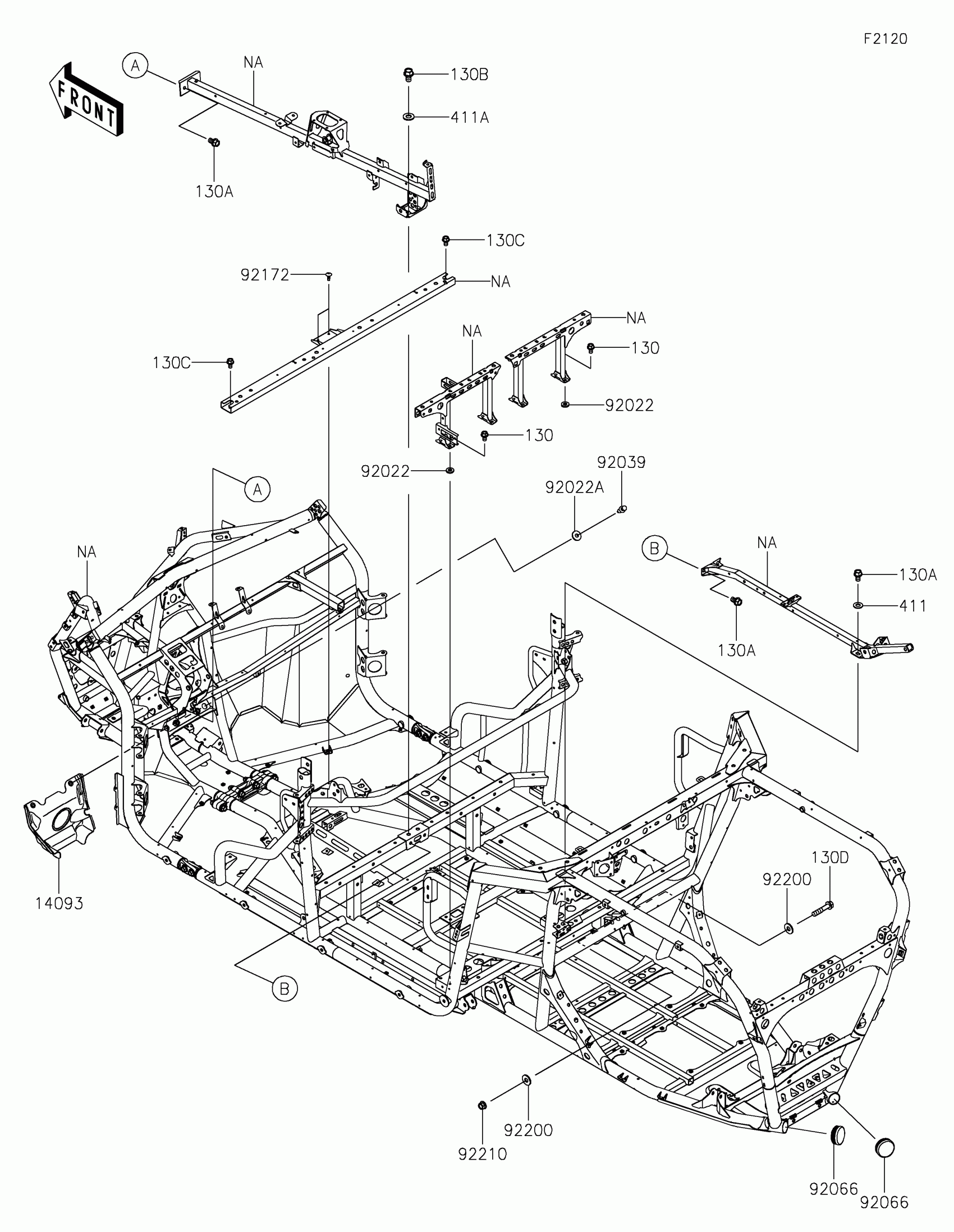

2024 Kawasaki Teryx KRX®4 1000 eS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,PROPELLER SHAFT

14093-1009

1
Out of stock

92022

WASHER

92022-2124

1
Out of stock

92022A

WASHER,8.4X23X2.5

92022-3744

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92066

PLUG,RR END

92066-0926

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92200

WASHER,11X26X2.6

92200-0352

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

130A

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

130B

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

130C

BOLT-FLANGED,8X14

130CA0814

1

$1.32

In stock

130D

BOLT-FLANGED,10X50

130CA1050

1

$2.93

In stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

411A

WASHER-PLAIN,12MM

411AA1200

1
Out of stock
