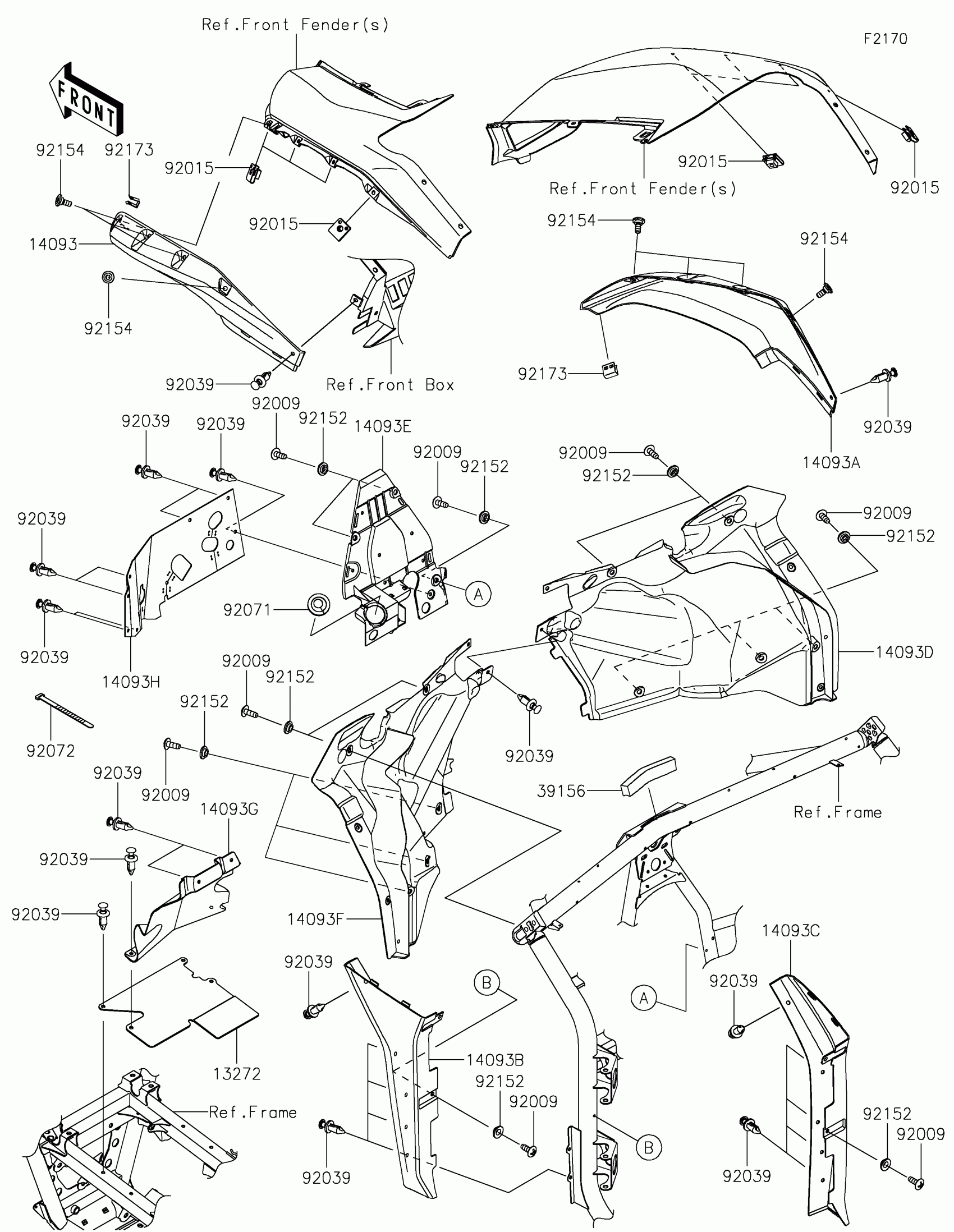

Kawasaki Teryx KRX®4 1000 eS Fenders Diagram

Description

Price

13272

PLATE,FR FRAME

13272-4143

$46.46

14093

COVER,FLAP,UPP,LH

14093-0806

$30.41

14093A

COVER,FLAP,UPP,RH

14093-0807

$30.60

14093B

COVER,FLAP,LWR,LH

14093-0808

$29.00

14093C

COVER,FLAP,LWR,RH

14093-0809

$29.00

14093D

COVER,FLOOR UPP,RH

14093-0822

$38.87

14093E

COVER,FLOOR UPP,CNT

14093-0823

$13.39

14093F

COVER,FLOOR UPP,LH

14093-0824

$44.28

14093G

COVER,WINDBREAK

14093-1390

$131.03

14093H

COVER,RUBBER

14093-1455

$7.85

39156

PAD,20X170X30

39156-2436

$4.99

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0830

$1.32

92072

BAND,L=123

92072-030

$3.81

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT

92154-2474

$1.20

92173

CLAMP

92173-2249

$2.69
