2024 Kawasaki Teryx KRX®4 1000 eS Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2024 Kawasaki Teryx KRX®4 1000 eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

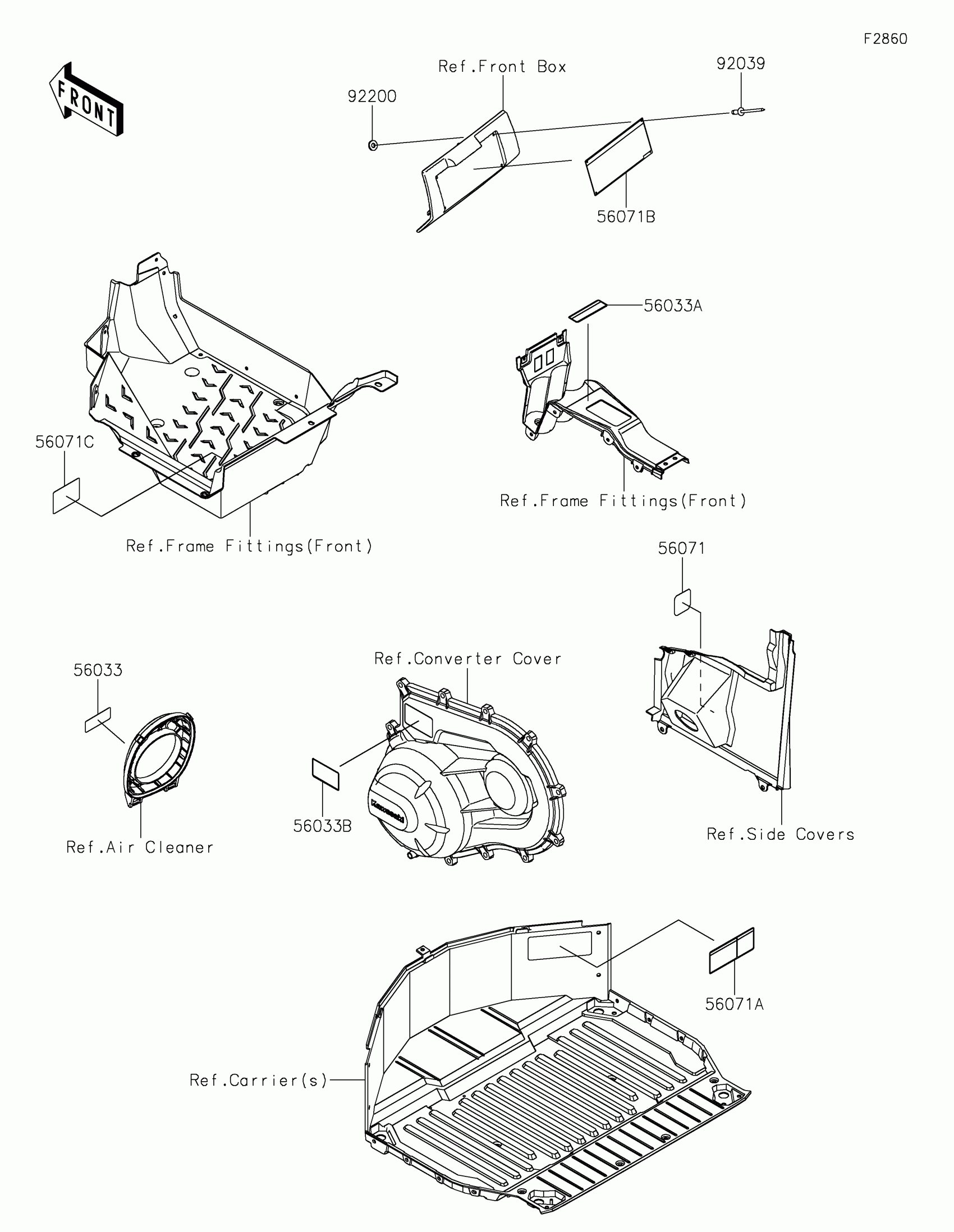

2024 Kawasaki Teryx KRX®4 1000 eS Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

LABEL-MANUAL,AIR CLEANER

56033-0724

1
Out of stock

56033A

LABEL-MANUAL,SHIFT NOTICE

56033-0822

1
Out of stock

56033B

LABEL-MANUAL,DRIVE BELT

56033-1000

1
Out of stock

56071

LABEL-WARNING,GASOLINE

56071-0588

1
Out of stock

56071A

LABEL-WARNING,CARGO BED

56071-0925

1
Out of stock

56071B

LABEL-WARNING,GENERAL

56071-1035

1
Out of stock

56071C

LABEL-WARNING,TIRE INFORMATION

56071-1036

1
Out of stock

92039

RIVET,3.2X8

92039-3763

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock
