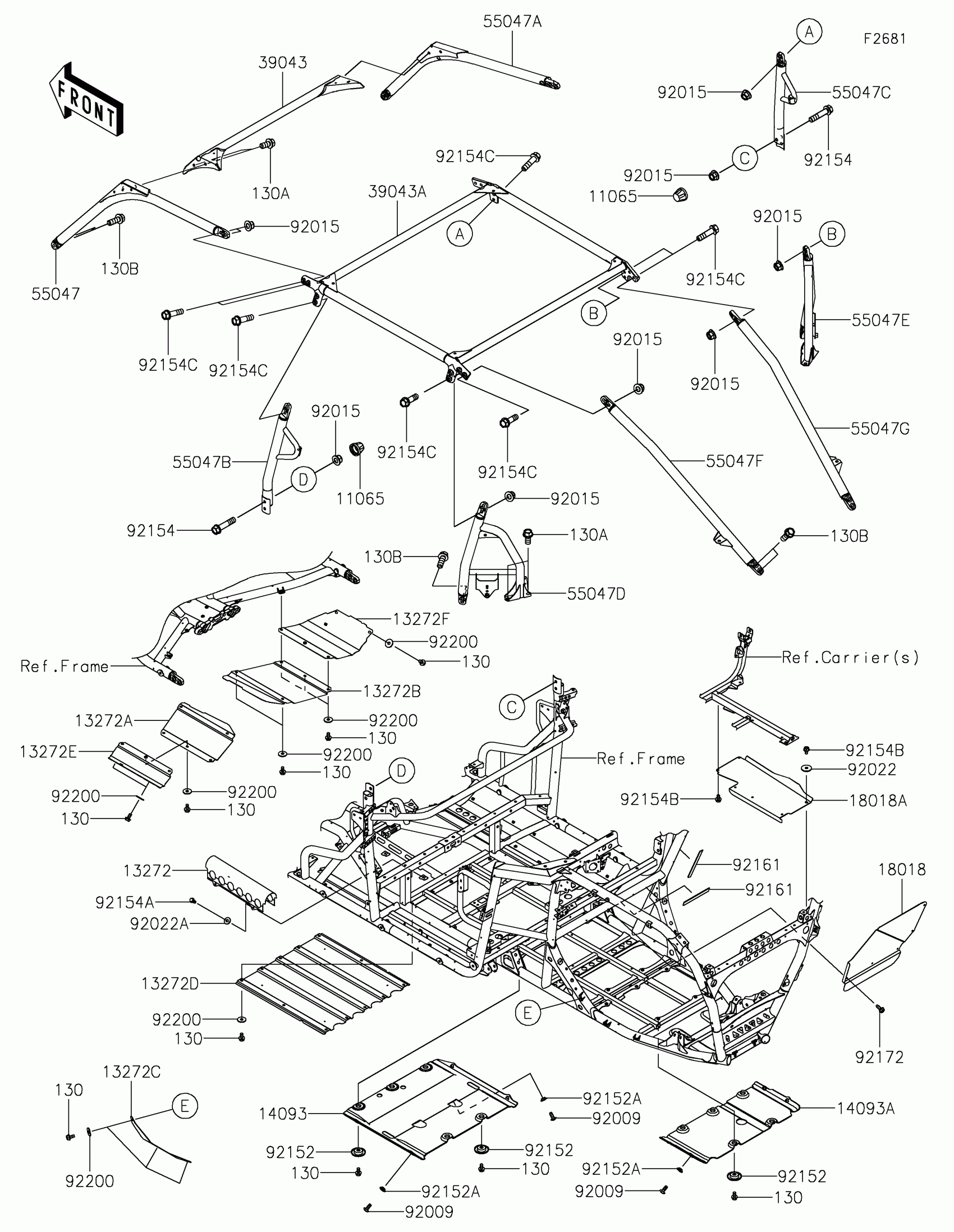

Find the part on the Guards/cab Frame diagram for your 2024 Kawasaki Teryx KRX®4 1000 Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Teryx KRX®4 1000 Es Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0751

1
Out of stock

13272

PLATE,DRIVE SHAFT

13272-2642

1
Out of stock

13272A

PLATE,SKID,FR,CNT,LH

13272-2737

1
Out of stock

13272B

PLATE,SKID,FR,CNT,RH

13272-2738

1
Out of stock

13272C

PLATE,CVT COVER

13272-3797

1
Out of stock

13272D

PLATE,SKID,CNT

13272-3963

1
Out of stock

13272E

PLATE,SKID,FR,LH

13272-4039

1
Out of stock

13272F

PLATE,SKID,FR,RH

13272-4040

1
Out of stock

14093

COVER,SKID,CNT

14093-0811

1
Out of stock

14093A

COVER,SKID,RR

14093-0877

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0616

1
Out of stock

18018A

PLATE-HEAT GUARD

18018-0646

1
Out of stock

39043

CROSSMEMBER-COMP,FR,T.BLACK

39043-0033-388

1
Out of stock

39043A

CROSSMEMBER-COMP,RR,T.BLACK

39043-0034-388

1
Out of stock

55047

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0399-388

1
Out of stock

55047A

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0400-388

1
Out of stock

55047B

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0401-388

1
Out of stock

55047C

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0402-388

1
Out of stock

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0403-388

1
Out of stock

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0404-388

1
Out of stock

55047F

BAR-COMP,D-PILLAR,LH,T.BLACK

55047-0405-388

1
Out of stock

55047G

BAR-COMP,D-PILLAR,RH,T.BLACK

55047-0406-388

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92022A

WASHER

92022-2247

1
Out of stock

92152

COLLAR

92152-0784

1
Out of stock

92152A

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock

92154

BOLT,FLANGED,12X55

92154-0836

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-2922

1
Out of stock

92154B

BOLT,FLANGED,6X10

92154-4159

1
Out of stock

92154C

BOLT,FLANGED,12X45

92154-7076

1
Out of stock

92161

DAMPER,10X85X1

92161-1964

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0869

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

130

BOLT-FLANGED,6X12

130CA0612

1
Out of stock

130A

BOLT-FLANGED,12X25

130CA1225

1
Out of stock

130B

BOLT-FLANGED,12X35

130CA1235

1
Out of stock
