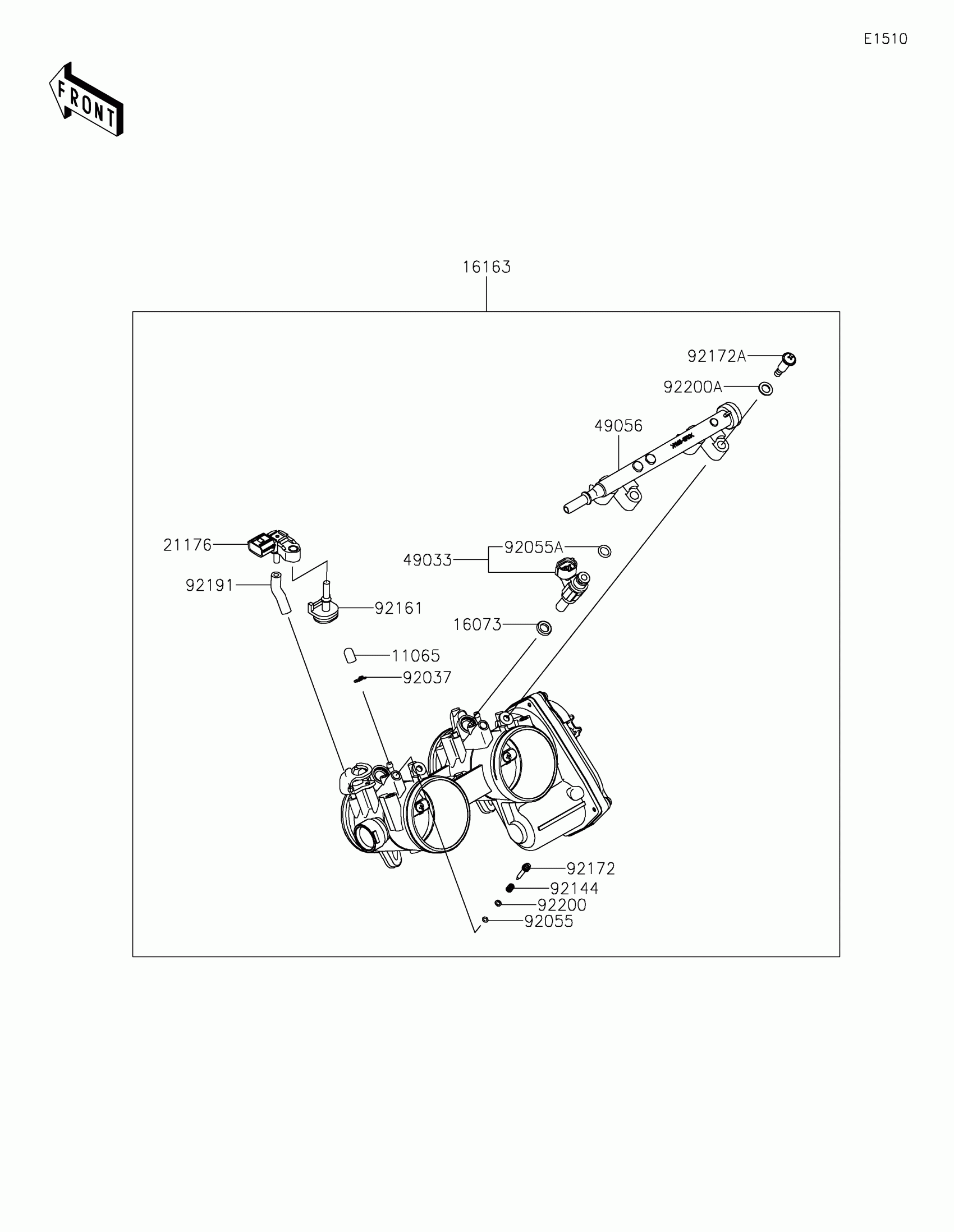

Kawasaki TERYX KRX® 1000 LIFTED EDITION Throttle Diagram

Description

Price

11065

CAP

11065-0072

$5.50

16073

INSULATOR

16073-0848

$11.03

16163

THROTTLE-ASSY

16163-0991

$1,139.01

21176

SENSOR,PRESSURE

21176-0906

$226.99

49033

NOZZLE-INJECTION

49033-0040

$120.84

49056

PIPE-INJECTION

49056-0564

$121.49

92037

CLAMP,TUBE

92037-1124

$4.59

92055

RING-O

92055-0840

$1.73

92055A

RING-O,INJECTION NOZZLE

92055-0937

$7.56

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.33

92161

DAMPER

92161-0673

$4.85

92172

SCREW

92172-0156

$14.39

92172A

SCREW,PIPE INJECTION

92172-0828

$2.11

92191

TUBE,3.2X7.4X40

92191-1551

$2.27

92200

WASHER,PILOT AIR SCREW

92200-1564

$1.82

92200A

WASHER

92200-3807

$4.53
