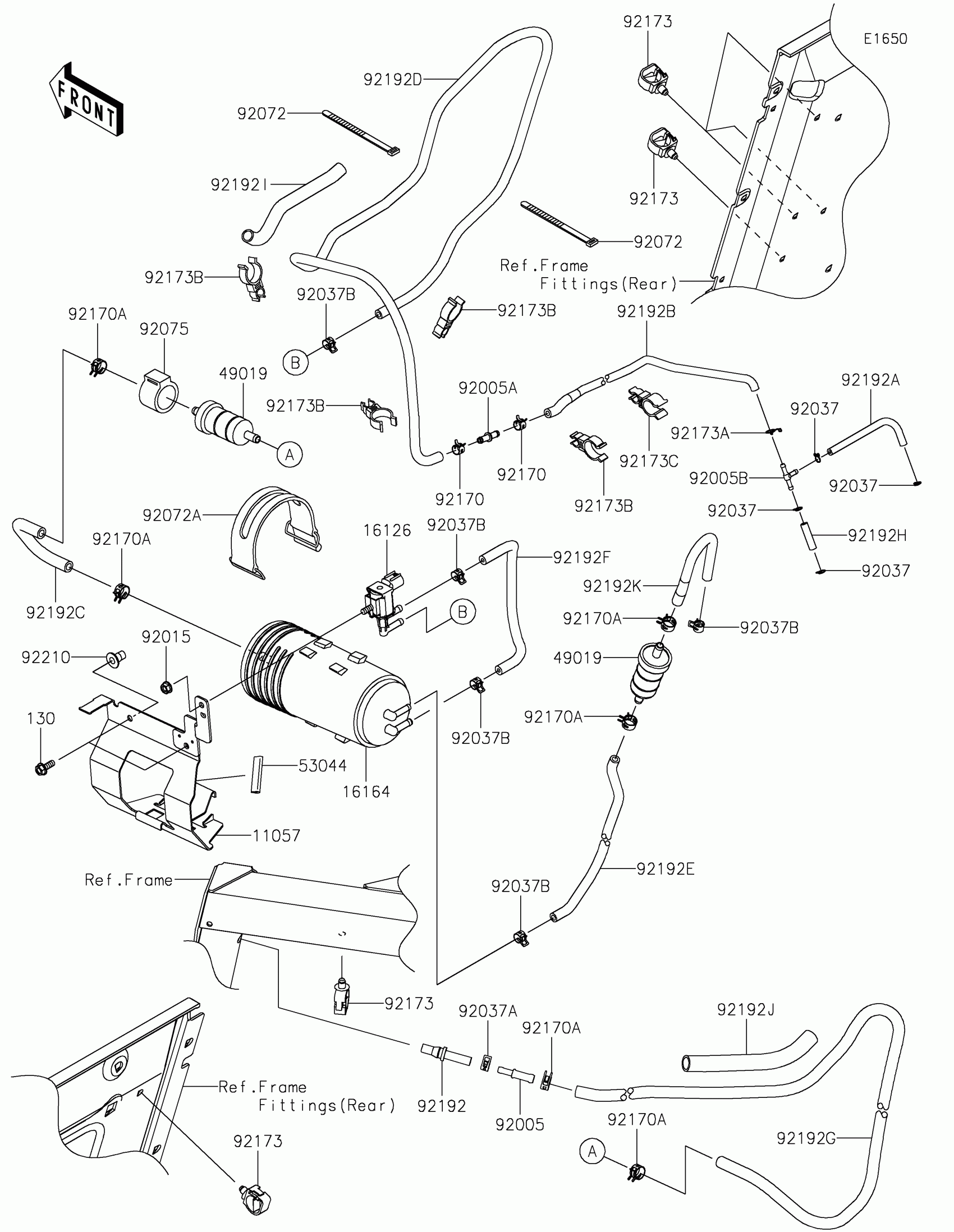

Kawasaki TERYX KRX® 1000 LIFTED EDITION Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2246

$28.54

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0016

$209.81

49019

FILTER-FUEL

49019-0032

$18.12

53044

TRIM,L=40

53044-1320

$1.95

92005

FITTING

92005-0720

$3.19

92005A

FITTING

92005-0721

$8.85

92005B

FITTING

92005-1380

$15.71

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-1124

$4.59

92037A

CLAMP,TUBE

92037-1461

$2.93

92037B

CLAMP

92037-2113

$0.97

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92170

CLAMP

92170-1493

$3.81

92170A

CLAMP

92170-2082

$0.71

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP

92173-1568

$4.39

92173B

CLAMP,CLIP

92173-2000

$4.31

92173C

CLAMP

92173-2287

$4.31

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192A

TUBE,3.5X7.5X125

92192-1497

$22.86

92192B

TUBE,L=450

92192-1612

$55.39

92192C

TUBE,FILTER-CANISTER

92192-1665

$3.37

92192D

TUBE,PURGE VALVE-THROTTLE BODY

92192-1951

$114.44

92192E

TUBE,CANISTER-CHECK VALVE

92192-1952

$38.63

92192F

TUBE,CANISTER-PURGE VALVE

92192-1953

$22.37

92192G

TUBE,AIR BREATHER

92192-1954

$32.97

92192H

TUBE,THROTTLE BODY

92192-1992

$7.59

92192I

TUBE,CONVOLUTED,10.7X14.1X170

92192-2293

$10.86

92192J

TUBE,CONVOLUTED,13.2X17.5X160

92192-2294

$10.86

92192K

TUBE,CHECK VALVE-FILTER

92192-2295

$26.17

92210

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.08

130

BOLT-FLANGED,6X16

130BA0616

$0.97
