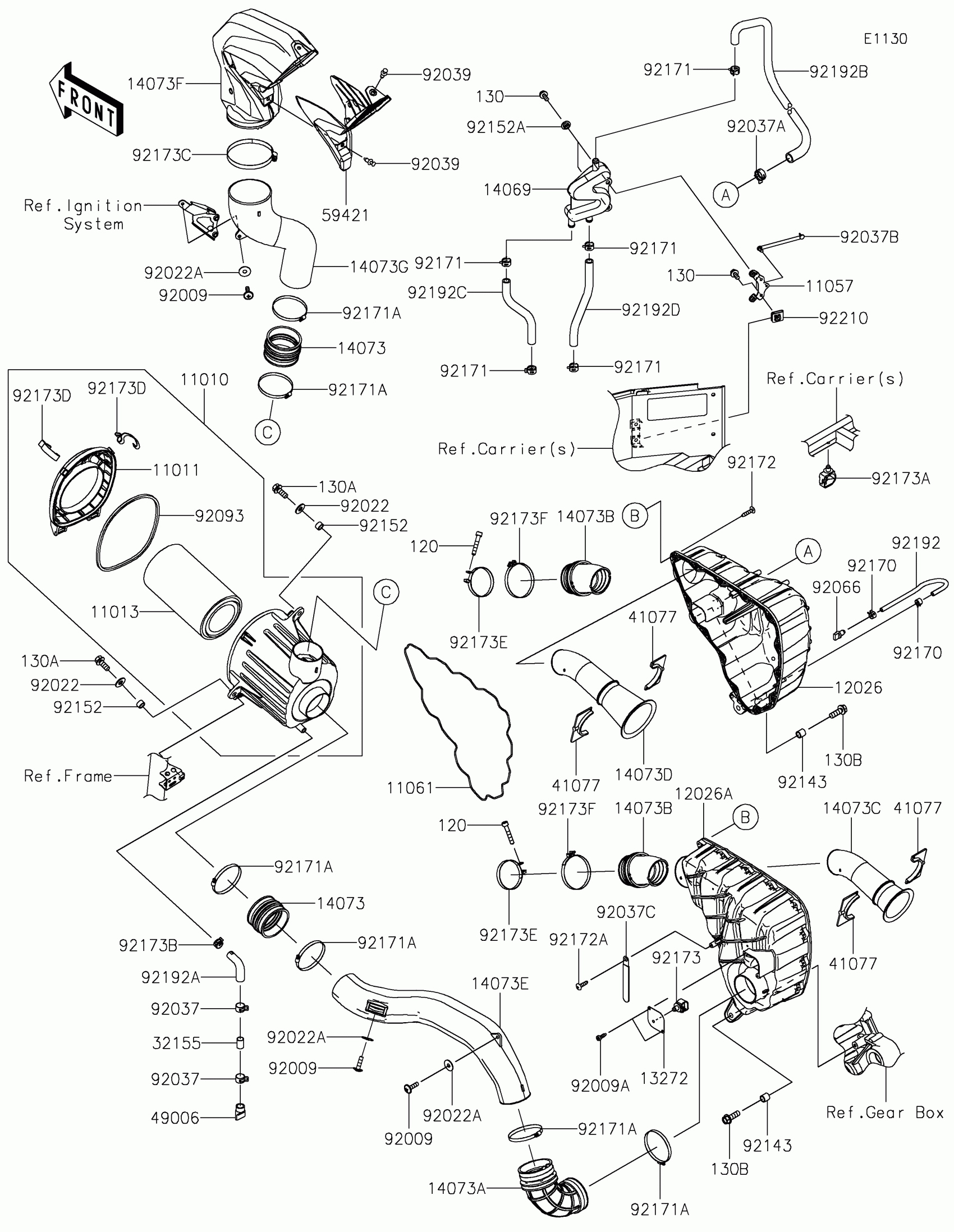

Kawasaki TERYX KRX® 1000 LIFTED EDITION Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0900

$161.21

11011

CASE-AIR FILTER,UPP

11011-0905

$12.71

11013

ELEMENT-AIR FILTER

11013-0782

$61.80

11057

BRACKET,BREATHER

11057-2431

$5.39

11061

GASKET,CHAMBER

11061-1312

$7.24

12026

CHAMBER,RH

12026-0019

$36.24

12026A

CHAMBER,LH

12026-0020

$37.37

13272

PLATE,TEMP SENSOR

13272-2711

$0.92

14069

BREATHER

14069-0032

$39.60

14073

DUCT,A/F CASE

14073-0923

$4.71

14073A

DUCT,CHAMBER

14073-0925

$12.81

14073B

DUCT,CHAMBER-THROTTLE

14073-0931

$11.12

14073C

DUCT,INTAKE,#1 CYLINDER

14073-0956

$17.00

14073D

DUCT,INTAKE,#2 CYLINDER

14073-0957

$17.80

14073E

DUCT,A/F CASE-CHAMBER

14073-0963

$36.73

14073F

DUCT,INTAKE

14073-1934

$282.41

14073G

DUCT,INTAKE-AIR FILTER CASE

14073-1943

$45.22

32155

PIPE,DRAIN

32155-7651

$5.46

41077

ADAPTER

41077-0737

$1.76

49006

BOOT

49006-1292

$5.93

59421

COVER-INTAKE,L.GREEN

59421-0007-290

$18.76

92009

SCREW,6X22

92009-1441

$3.29

92009A

SCREW,TAPPING,5X16

92009-1984

$1.82

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92022A

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92037A

CLAMP

92037-1594

$4.74

92037B

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92037C

CLAMP

92037-1993

$4.18

92039

RIVET

92039-0776

$0.80

92066

PLUG,DRAIN

92066-0782

$9.97

92093

SEAL,AIR FILTER CASE

92093-0726

$5.15

92143

COLLAR,8.8X12X11.5

92143-1340

$4.17

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.19

92152A

COLLAR,6.5X10X5.3

92152-1863

$5.66

92170

CLAMP

92170-2042

$1.00

92171

CLAMP

92171-0329

$6.77

92171A

CLAMP

92171-1383

$3.35

92172

SCREW,TAPPING,5X25

92172-0432

$1.53

92172A

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92173B

CLAMP

92173-1463

$1.68

92173C

CLAMP,130MM

92173-1938

$3.28

92173D

CLAMP,AIR FILTER CASE

92173-2023

$2.85

92173E

CLAMP,74MM

92173-2219

$5.47

92173F

CLAMP,88MM

92173-2256

$10.07

92192

TUBE,7X10X310

92192-1955

$4.44

92192A

TUBE,DRAIN

92192-2312

$2.34

92192B

TUBE,BREATHER-CHAMBER

92192-2337

$22.97

92192C

TUBE,CYL.HEAD,RH-BREATHER,LH

92192-2338

$9.37

92192D

TUBE,CYL.HEAD,LH-BREATHER,RH

92192-2339

$10.80

92210

NUT,CLIP,6MM

92210-1768

$3.92

120

BOLT-SOCKET,6X35

120CA0635

$1.49

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,8X20

130BA0820

$3.04

130B

BOLT-FLANGED,8X25

130BA0825

$2.01
