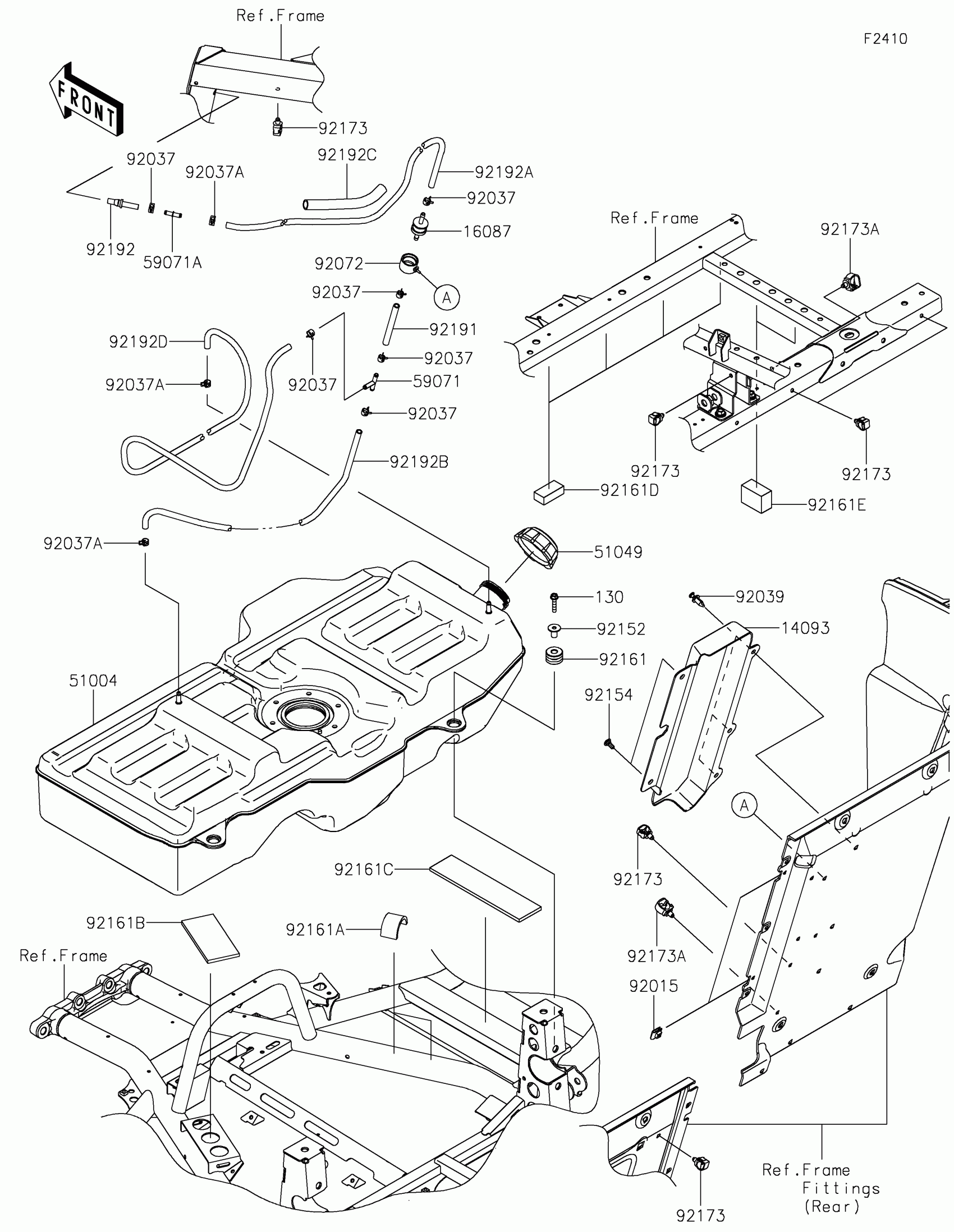

Kawasaki TERYX KRX® 1000 LIFTED EDITION Fuel Tank(CN,US) Diagram

Description

Price

14093

COVER,BREATHER PIPE

14093-0987

$11.59

16087

VALVE-CHECK

16087-0008

$33.58

51004

TANK-FUEL

51004-0044

$445.59

51049

CAP-TANK,FUEL

51049-0718

$58.05

59071

JOINT

59071-3705

$4.15

59071A

JOINT

59071-3717

$3.07

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP

92037-2113

$0.97

92039

RIVET

92039-0776

$0.80

92072

BAND

92072-0850

$4.39

92152

COLLAR,6.8X10X18.1

92152-1867

$4.61

92154

BOLT

92154-3957

$1.66

92161

DAMPER,TANK

92161-2178

$1.08

92161A

DAMPER,TANK FRAME PIPE

92161-2179

$1.51

92161B

DAMPER,TANK LH LOWER

92161-2180

$3.66

92161C

DAMPER,TANK LOWER

92161-2253

$10.53

92161D

DAMPER,TANK & SEAT FRAME

92161-2275

$2.73

92161E

DAMPER,TANK & SEAT FRAME

92161-2288

$5.17

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-0861

$2.11

92191

TUBE,5X9X100

92191-1792

$0.69

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192A

TUBE,5X11X870

92192-1948

$10.86

92192B

TUBE,5X11X1020

92192-1994

$10.86

92192C

TUBE,CONVOLUTED,13.2X17.5X160

92192-2294

$10.86

92192D

TUBE,5X11X1380

92192-2351

$14.14

130

BOLT-FLANGED,6X30

130BA0630

$1.13
