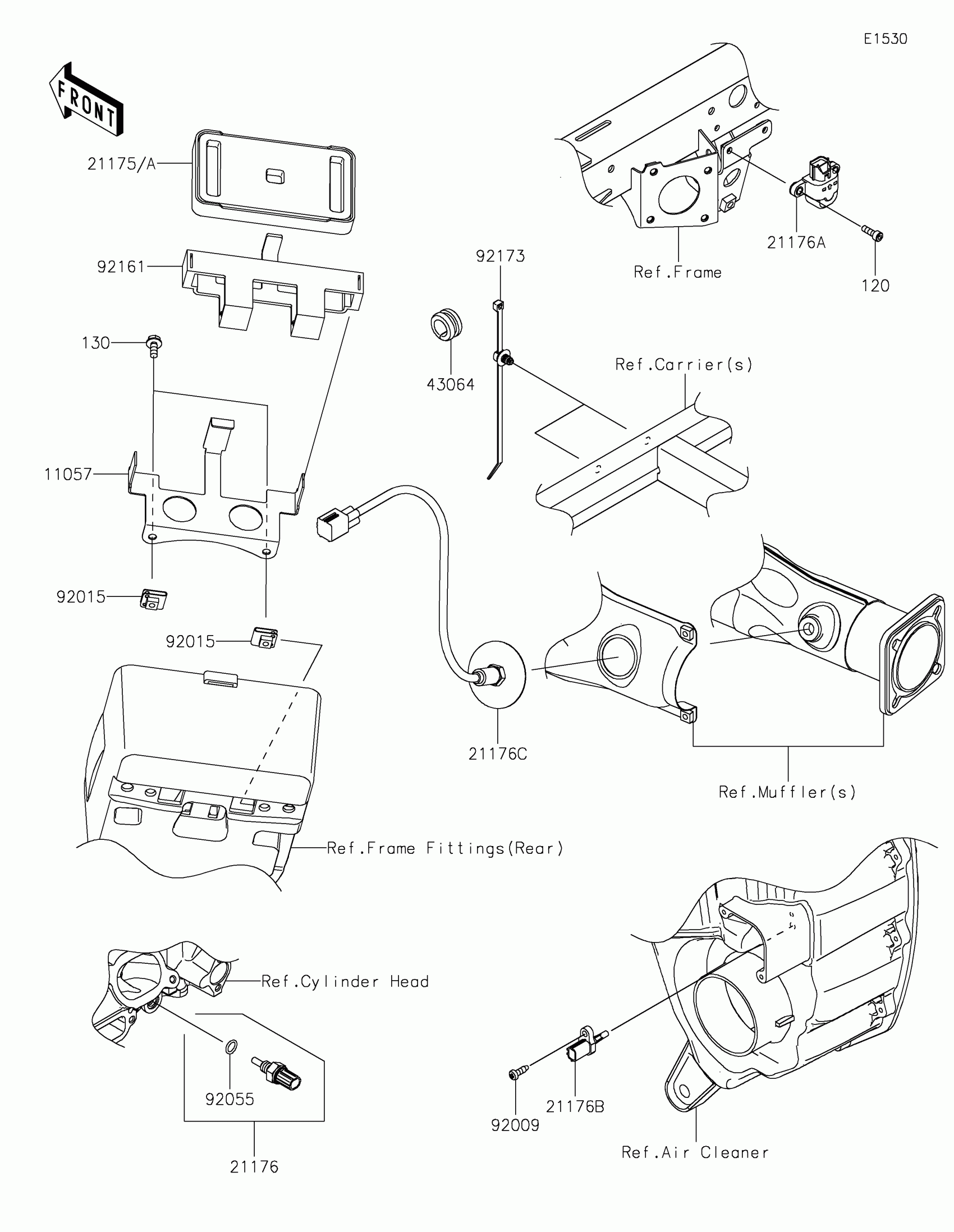

Kawasaki TERYX KRX® 1000 LIFTED EDITION Fuel Injection Diagram

Description

Price

11057

BRACKET,ECU

11057-2230

$3.12

21175

CONTROL UNIT-ELECTRONIC

21175-2093

$858.39

21175A

CONTROL UNIT-ELECTRONIC

21175-2094

$858.39

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,OXYGEN

21176-1147

$307.27

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92055

RING-O,9.5X1.9

92055-0016

$6.77

92161

DAMPER,ECU

92161-2183

$3.98

92173

CLAMP

92173-2188

$0.71

120

BOLT-SOCKET,5X16

120CA0516

$1.81

130

BOLT-FLANGED,6X14

130CA0614

$3.14
