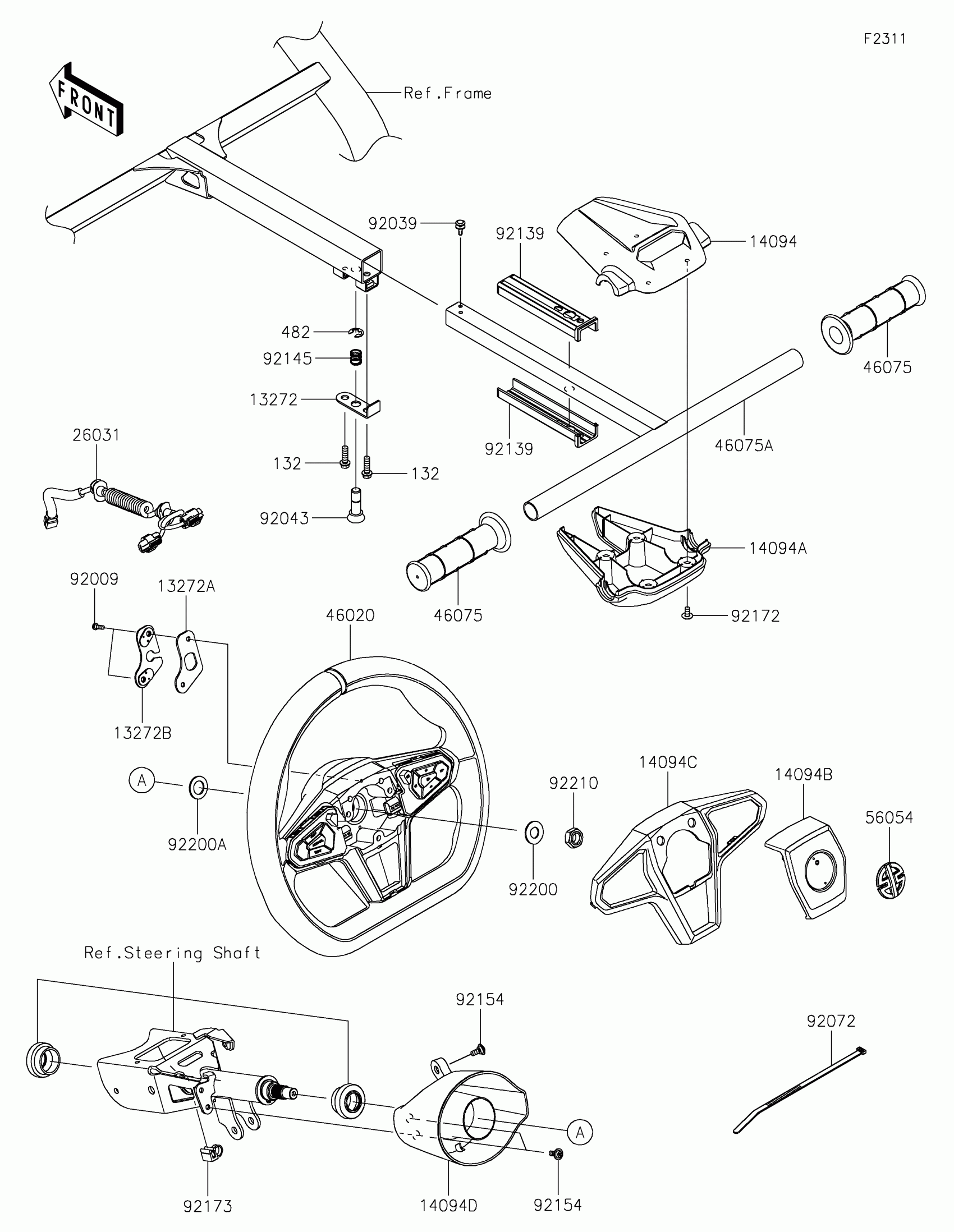

Kawasaki TERYX®5 H2 DELUXE eS Steering Wheel Diagram

#

Description
Price

13272

PLATE

13272-3869

$2.59

13272A

PLATE

13272-7413

$7.41

13272B

PLATE

13272-7438

$6.59

14094

COVER,HANDLE GRIP,UPP

14094-0184

$20.56

14094A

COVER,HANDLE GRIP,LWR

14094-0229

$23.73

14094B

COVER,STEERING WHEEL,OUTER

14094-0415

$7.68

14094C

COVER,STEERING WHEEL,IN,SILVER

14094-0416-57N

$59.19

14094D

COVER,STEERING WHEEL HARNESS

14094-0490

$39.42

26031

HARNESS,STEERING WHEEL

26031-4442

$190.71

46020

STEERING WHEEL

46020-0004

$596.35

46075

GRIP

46075-0065

$26.99

46075A

GRIP,HANDLE,INNER

46075-0708

$24.85

56054

MARK,UPP COWL.,RIVER

56054-3842

$48.01

92009

SCREW,TAPPING,4X12

92009-1381

$2.42

92039

RIVET

92039-0046

$2.98

92043

PIN

92043-7503

$3.73

92072

BAND,L=292.1

92072-3509

Unavailable

92139

BUSHING

92139-1143

$3.95

92145

SPRING

92145-7507

$1.32

92154

BOLT,SOCKET,5X12

92154-7477

$2.25

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP

92173-3750

$2.75

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

92200A

WASHER,15X25X1.6

92200-0460

$3.27

92210

NUT,LOCK,12MM

92210-1249

$5.88

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63
