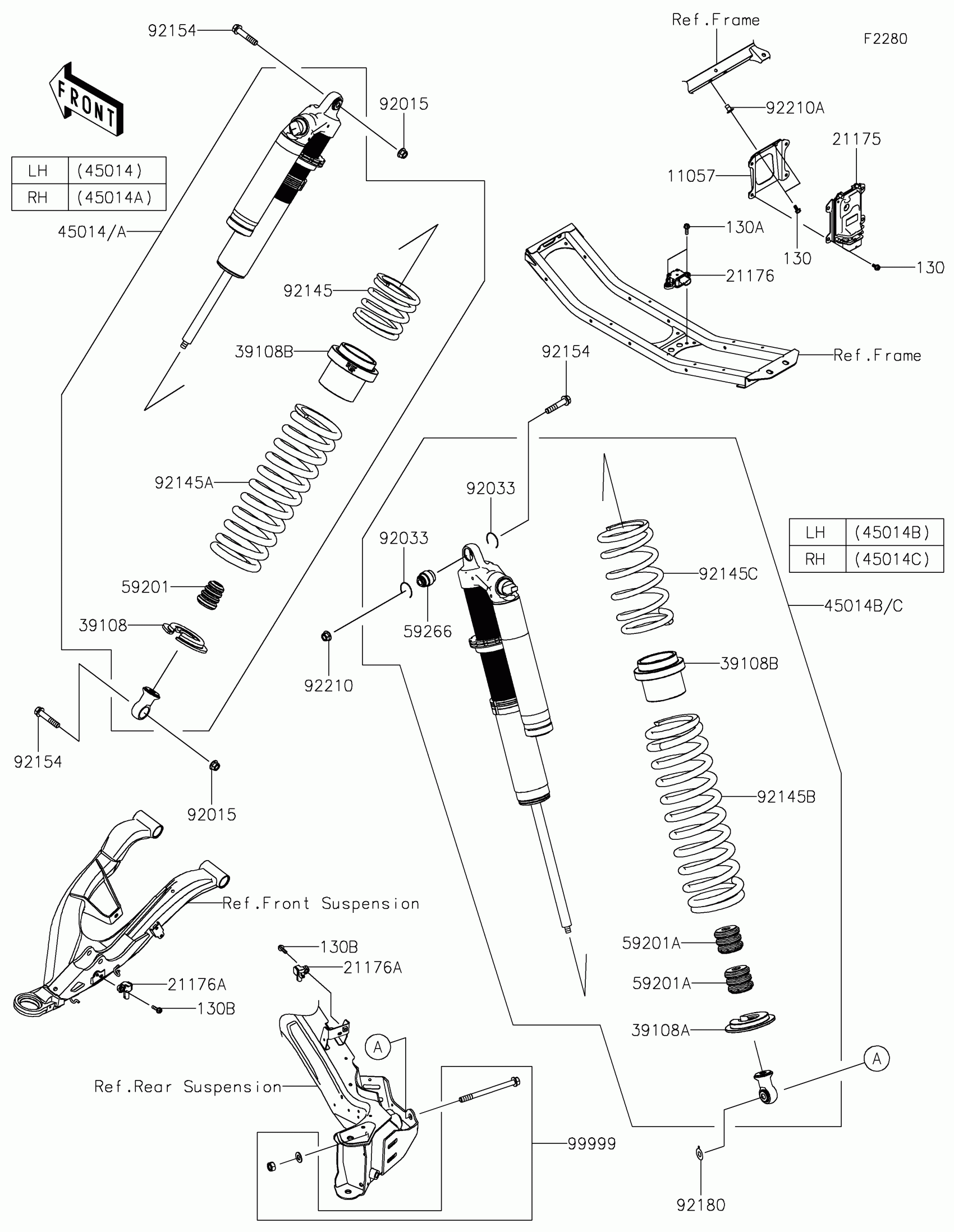

Kawasaki TERYX®5 H2 DELUXE eS Shock Absorber(s) Diagram

#

Description
Price

11057

BRACKET,SDC-ECU

11057-7671

$22.75

21175

CONTROL UNIT-ELECTRONIC,SDC

21175-2135

$744.68

21176

SENSOR,IMU

21176-1227

$279.29

21176A

SENSOR,ACCELERATION

21176-1241

$79.54

39108

RETAINER-SPRING

39108-0021

$49.35

39108A

RETAINER-SPRING

39108-0022

$49.35

39108B

RETAINER-SPRING

39108-0024

$49.35

45014

SHOCKABSORBER,FR,LH,L.GREEN

45014-0905-66G

$1,601.91

45014A

SHOCKABSORBER,FR,RH,L.GREEN

45014-0906-66G

$1,601.91

45014B

SHOCKABSORBER,RR,LH,L.GREEN

45014-0907-66G

$1,817.01

45014C

SHOCKABSORBER,RR,RH,L.GREEN

45014-0908-66G

$1,817.01

59201

BUMPER

59201-0018

$61.69

59201A

BUMPER

59201-0019

$56.02

59266

JOINT-BALL

59266-0846

$41.94

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92033

RING-SNAP

92033-0892

$5.92

92145

SPRING,TENDER,L.GREEN

92145-2509-66G

Unavailable

92145A

SPRING,MAIN,L.GREEN

92145-2510-66G

$182.83

92145B

SPRING,MAIN,L.GREEN

92145-2512-66G

$176.93

92145C

SPRING,TENDER,L.GREEN

92145-2513-66G

Unavailable

92154

BOLT,FLANGED,12X60

92154-7478

$10.71

92180

SHIM

92180-1763

$4.76

92210

NUT,LOCK,FLANGED,12MM

92210-0110

$7.97

92210A

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.08

99999

KIT,RR SHOCK-TRAIL BOLT

99999-0988

$19.08

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X18

130BA0618

$1.17

130B

BOLT-FLANGED,6X20

130BA0620

$1.28
