2026 Kawasaki TERYX®5 H2 Deluxe eS Control Diagram

← All diagrams

Find the part on the Control diagram for your 2026 Kawasaki TERYX®5 H2 Deluxe eS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

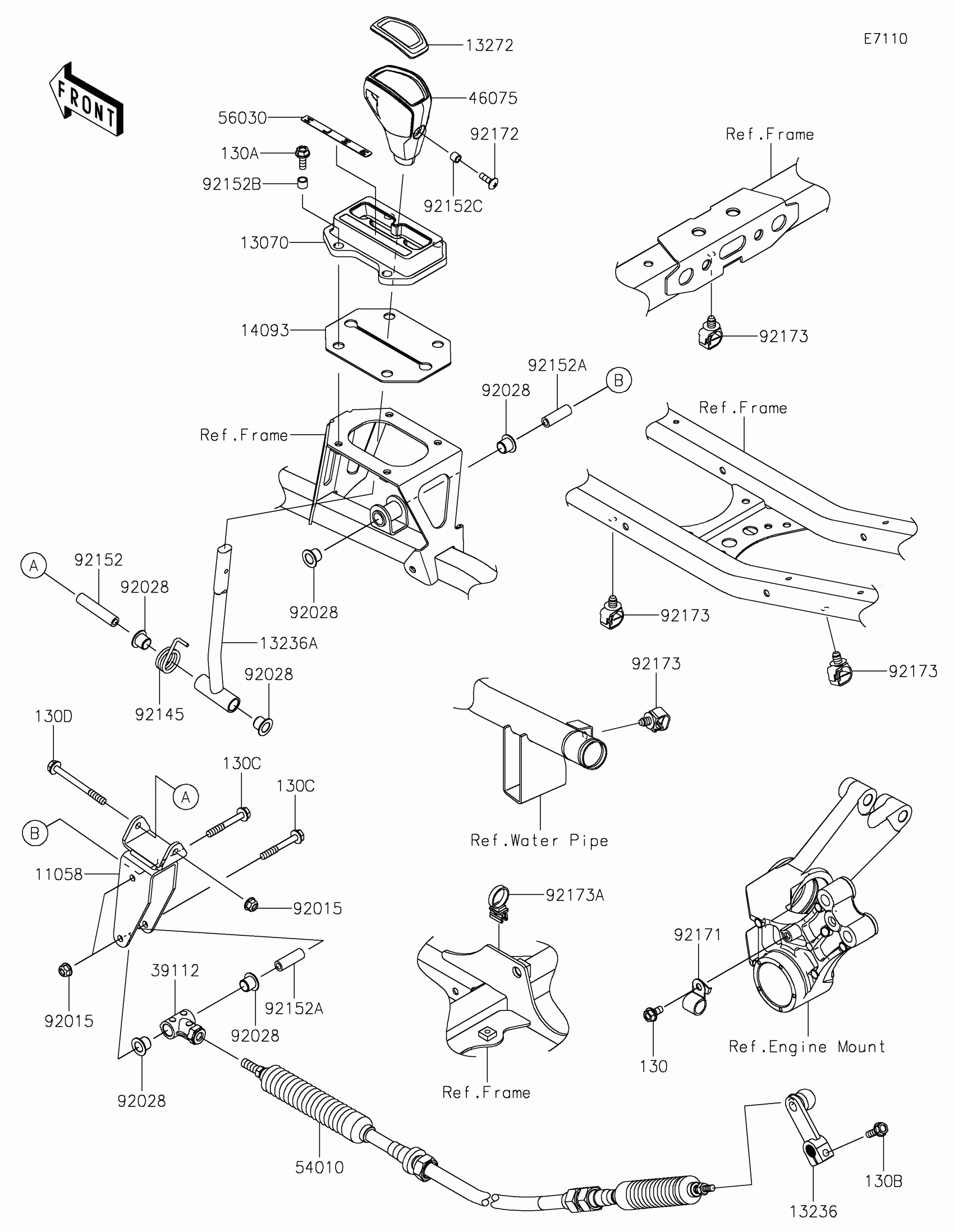

2026 Kawasaki TERYX®5 H2 Deluxe eS Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,LEVER

11058-1920

1
Out of stock

13070

GUIDE

13070-0894

1
Out of stock

13236

LEVER-COMP,CHANGE LEVER

13236-0708

1
Out of stock

13236A

LEVER-COMP

13236-0870

1
Out of stock

13272

PLATE,SHIFT GRIP,S.BLACK

13272-7086-839

1
Out of stock

14093

COVER,HEAT GUARD

14093-1245

1
Out of stock

39112

RODEND-TIE

39112-0036

1
Out of stock

46075

GRIP

46075-0669

1
Out of stock

54010

CABLE

54010-0663

1
Out of stock

56030

LABEL,POSITION

56030-1421

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92145

SPRING

92145-1839

1
Out of stock

92152

COLLAR,6.0X10X47

92152-1517

1
Out of stock

92152A

COLLAR,6.0X10X30

92152-1518

1
Out of stock

92152B

COLLAR,6.8X9.2X8.8

92152-2863

1
Out of stock

92152C

COLLAR

92152-2939

1
Out of stock

92171

CLAMP

92171-1615

1
Out of stock

92172

SCREW,5X16

92172-0479

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP,EDGE CLIP CABLE,L=200

92173-1896

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130B

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

130C

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

130D

BOLT-FLANGED,6X65

130CA0665

1

$1.49

In stock
