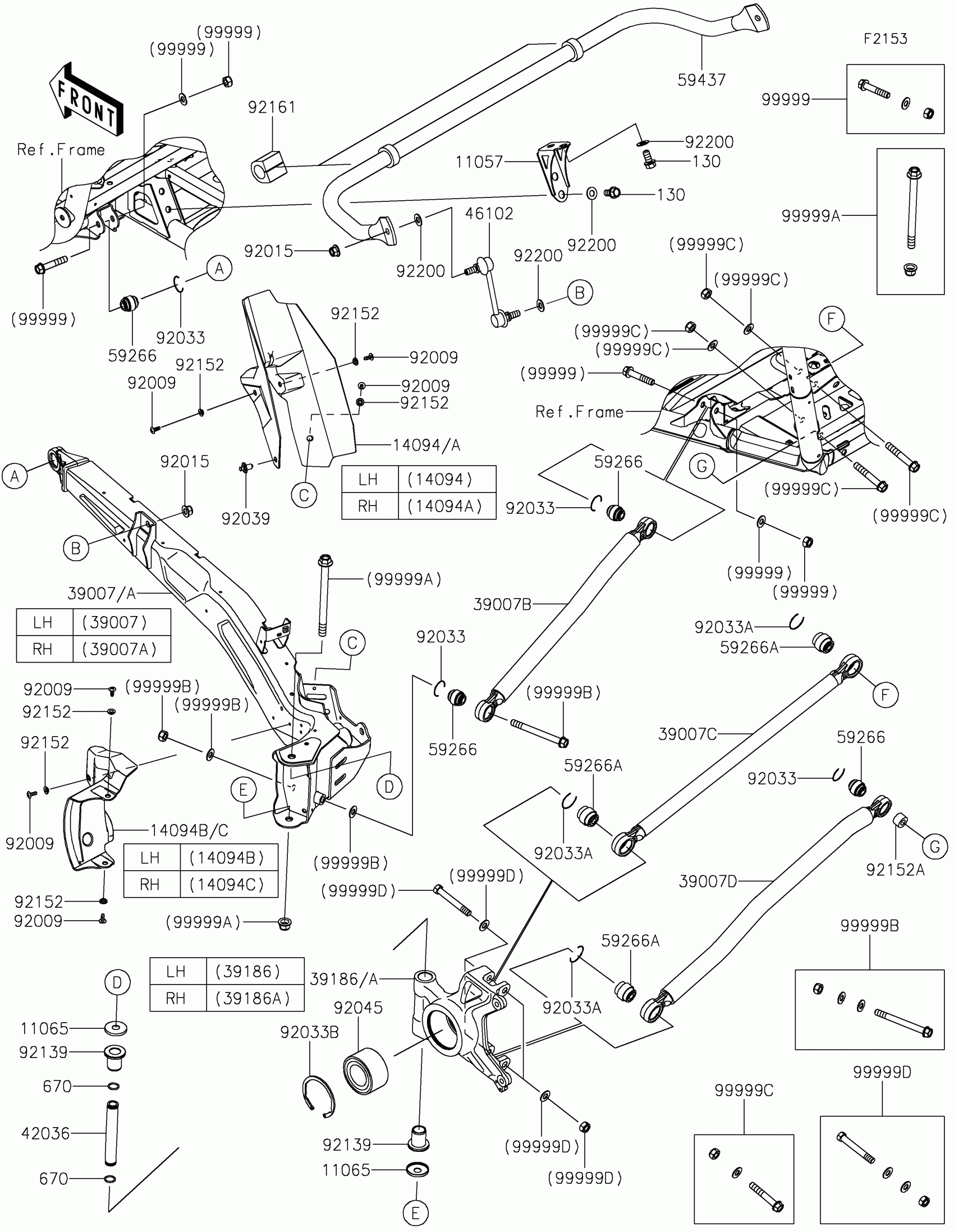

Kawasaki TERYX®5 H2 DELUXE eS Rear Suspension Diagram

#

Description
Price

11057

BRACKET

11057-7670

$25.63

11065

CAP

11065-1521

$3.24

14094

COVER,RR SHOCK,LH

14094-0187

$56.85

14094A

COVER,RR SHOCK,RH

14094-0188

$56.85

14094B

COVER,TRAILING ARM,LH

14094-0189

$36.75

14094C

COVER,TRAILING ARM,RH

14094-0190

$36.75

39007

ARM-SUSP,TRAILING,LH,P.L.GREEN

39007-0520-66C

$585.74

39007A

ARM-SUSP,TRAILING,RH,P.L.GREEN

39007-0521-66C

$585.74

39007B

ARM-SUSP,RR CONTROL,FR,GREEN

39007-0522-66C

$354.80

39007C

ARM-SUSP,RR CONTROL,UPP,GREEN

39007-0523-66C

$237.93

39007D

ARM-SUSP,RR CONTROL,LWR,GREEN

39007-0560-66C

$449.57

39186

KNUCKLE,RR,LH

39186-0355

$228.35

39186A

KNUCKLE,RR,RH

39186-0356

$228.35

42036

SLEEVE,14.1X22X147

42036-0926

$57.89

46102

ROD,RR STABILIZER

46102-0691

$56.83

59266

JOINT-BALL

59266-0747

$13.62

59266A

JOINT-BALL

59266-0748

$22.14

59437

STABILIZER,RR

59437-0035

$104.99

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92033

RING-SNAP

92033-0802

$1.05

92033A

RING-SNAP

92033-0803

$1.05

92033B

RING-SNAP,76.5MM

92033-0879

$7.54

92039

RIVET

92039-0086

$4.18

92045

BEARING-BALL,45X84X45

92045-1478

$240.33

92139

BUSHING

92139-1298

$8.54

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92152A

COLLAR,12.2X25X15.3

92152-4061

$22.98

92161

DAMPER

92161-2414

$4.14

92200

WASHER,12.1X25X1.6

92200-0455

$2.09

99999

KIT,TRAILING-FRAME BOLT

99999-0983

$27.63

99999A

KIT,TRAILING-KNUCKLE BOLT

99999-0984

$78.59

99999B

KIT,CONTROL ARM-TRAIL,BOLT

99999-0985

$36.85

99999C

KIT,CONTROL ARM-FRAME,BOLT

99999-0986

$25.59

99999D

KIT,CONTROL ARM-KNUCKLE,BOLT

99999-0987

$35.79

130

BOLT-FLANGED,12X25

130CA1225

$5.91

670

O RING,18MM

670B2018

$1.08
