2026 Kawasaki TERYX®5 H2 Deluxe Es Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2026 Kawasaki TERYX®5 H2 Deluxe Es, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

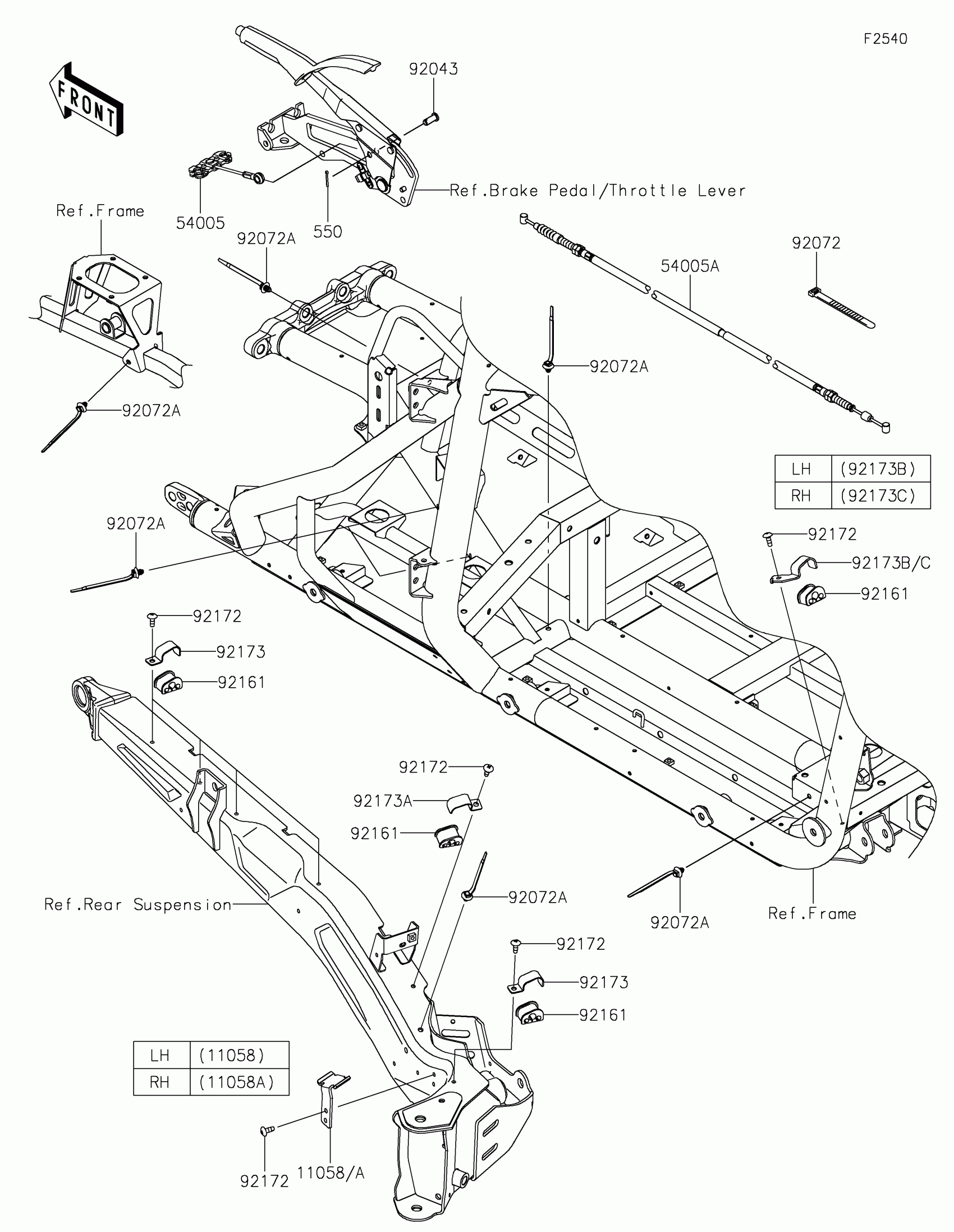

2026 Kawasaki TERYX®5 H2 Deluxe Es Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,P-BRAKE CABLE,LH

11058-4233

1
Out of stock

11058A

BRACKET,P-BRAKE CABLE,RH

11058-4234

1
Out of stock

54005

CABLE-BRAKE,PARKING BRAKE

54005-0312

1
Out of stock

54005A

CABLE-BRAKE,PARKING BRAKE

54005-0327

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92161

DAMPER

92161-2678

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92173

CLAMP

92173-1991

1
Out of stock

92173A

CLAMP

92173-2097

1
Out of stock

92173B

CLAMP,LH

92173-2750

1
Out of stock

92173C

CLAMP,RH

92173-2751

1
Out of stock

550

PIN-COTTER,2.5X18

550AA2518

1
Out of stock
← Rear Hubs/brakes Control →
