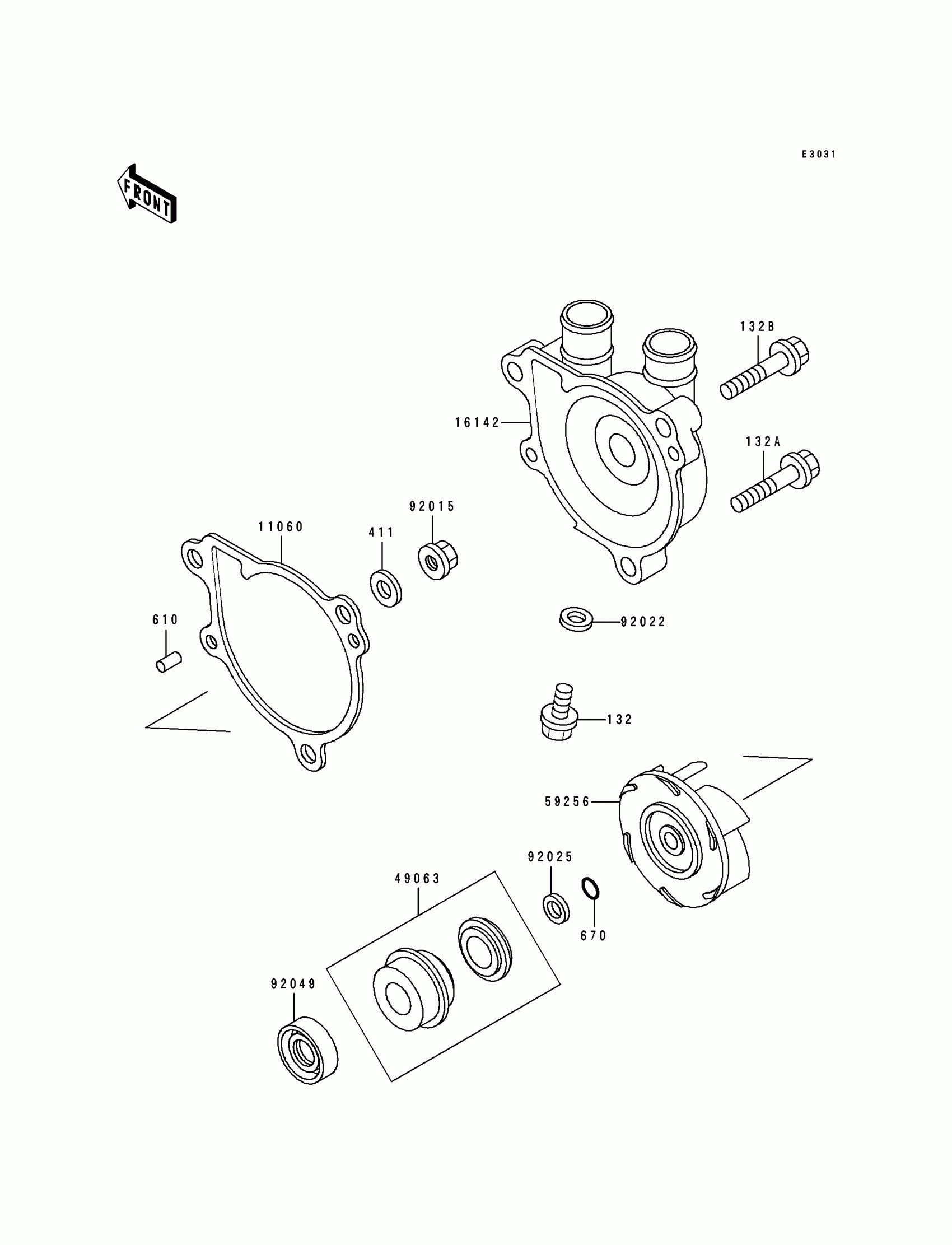

Kawasaki Tengai Water Pump Diagram

Description

Price

11060

GASKET,WATER PUMP COVER

11060-1114

$6.13

16142

COVER-PUMP

16142-1097

$117.84

49063

SEAL-MECHANICAL

49063-1054

$12.56

59256

IMPELLER

59256-1055

$27.07

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92025

SHIM,T=0.8

92025-1503

$2.23

92049

SEAL-OIL,SC10227

92049-1157

$7.08

132

BOLT-FLANGED-SMALL,6X8

132J0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

411

WASHER PLAIN

411F0600

$0.95

610

ROLLER,4X8

610A0408

$3.29

670

O RING,6MM

670B1506

$0.98
