1991 Kawasaki Tengai Air Filter Diagram

← All diagrams

Find the part on the Air Filter diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

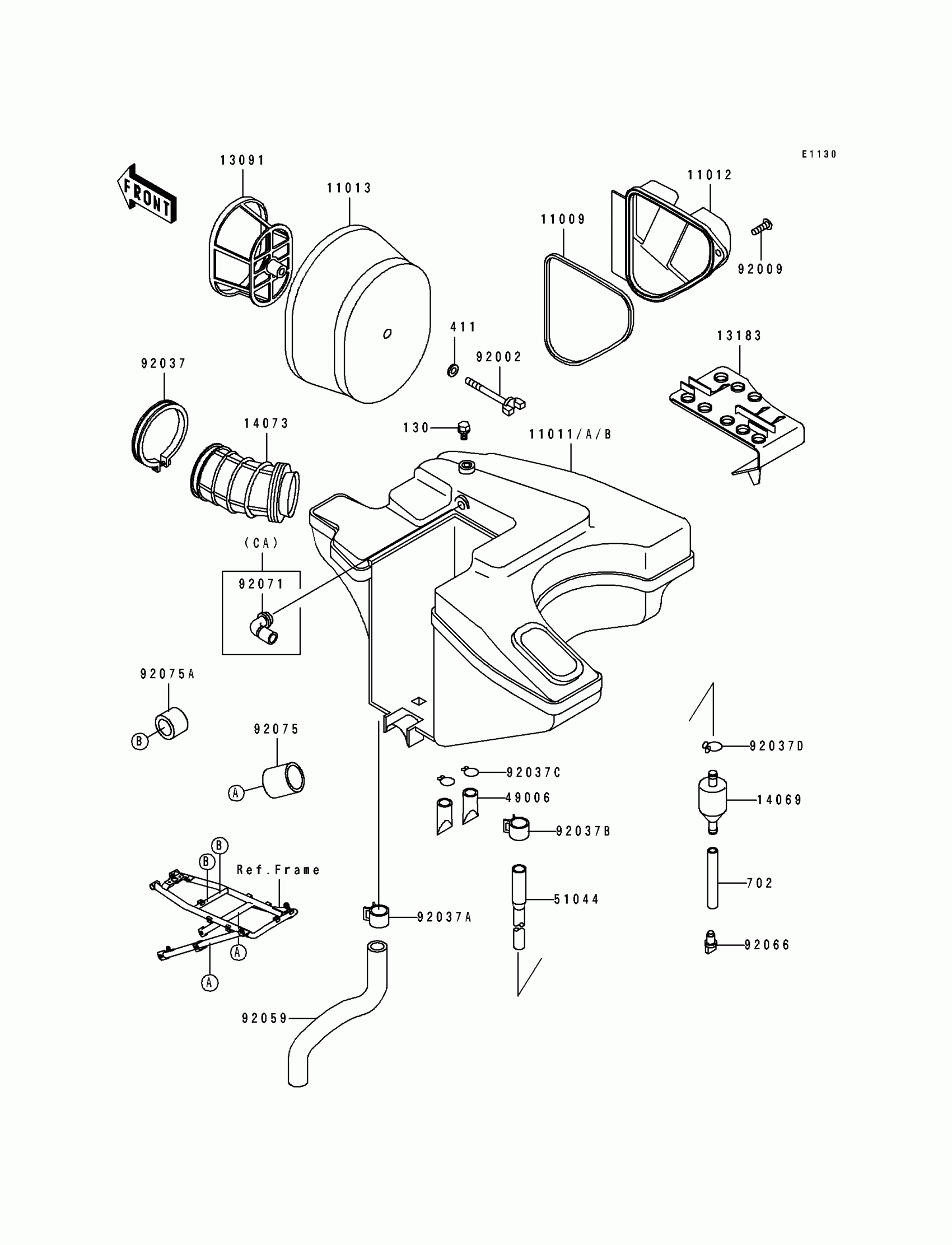

1991 Kawasaki Tengai Air Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

11009-1649

1

$9.62

In stock

11011

CASE-AIR FILTER

11011-1300

1
Out of stock

11012

CAP,AIR FILTER

11012-1681

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1152

1

$23.16

In stock

13091

HOLDER

13091-1473

1

$26.56

In stock

13183

PLATE

13183-1118

1

$37.10

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14073

DUCT

14073-1288

1

$32.61

In stock

49006

BOOT

49006-1211

1

$5.25

In stock

51044

TUBE-ASSY,AIR FILTER

51044-1105

1
Out of stock

92002

BOLT

92002-1904

1
Out of stock

92009

SCREW

92009-1460

1
Out of stock

92037

CLAMP

92037-1859

1

$6.88

In stock

92037A

CLAMP

92037-1860

1
Out of stock

92037B

CLAMP

92037-1861

1

$8.95

In stock

92037C

CLAMP,14.5MM

92037-1900

1

$3.87

In stock

92037D

CLAMP,TUBE

92037-1972

1

$3.43

In stock

92059

TUBE

92059-1774

1

$32.86

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92075

DAMPER,25X31X30

92075-1906

1

$5.71

In stock

92075A

DAMPER,18X27X20

92075-1907

1

$5.24

In stock

130

BOLT-FLANGED,6X10

130G0610

1
Out of stock

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

702

1

$5.37

In stock
