1991 Kawasaki Tengai Turn Signal Diagram

← All diagrams

Find the part on the Turn Signal diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

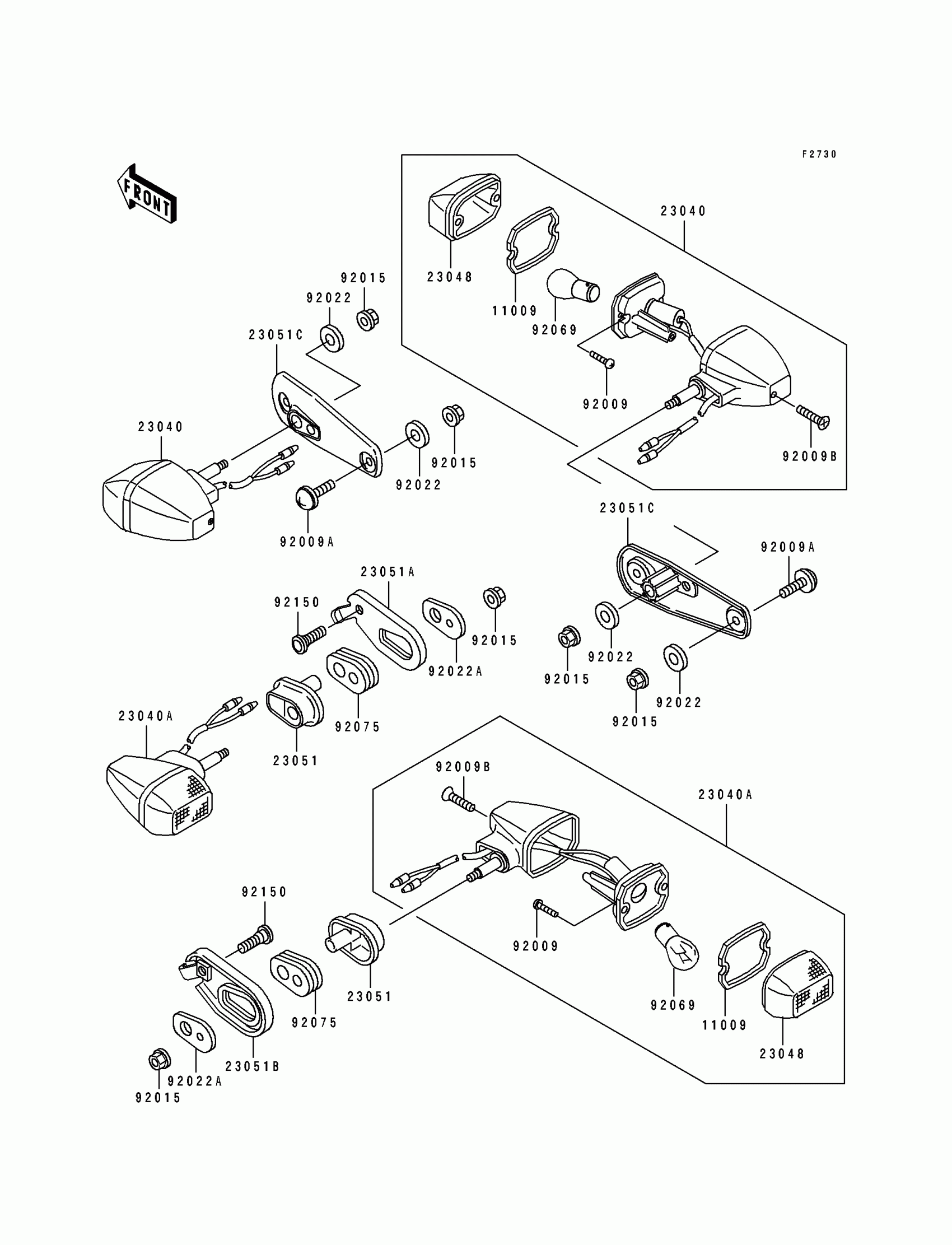

1991 Kawasaki Tengai Turn Signal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,SIGNAL LAMP

11009-1402

1

$4.39

In stock

23040

LAMP-SIGNAL,FR

23040-1105

1

$75.36

In stock

23040A

LAMP-SIGNAL,RR

23040-1116

1

$75.36

In stock

23048

LENS-SIGNAL LAMP

23048-1054

1

$8.30

In stock

23051

1

$22.73

In stock

23051A

1

$15.10

In stock

23051B

BRACKET-SIGNAL LAMP,RR,RH

23051-1206

1
Out of stock

23051C

1

$17.75

In stock

92009

SCREW,TAPPING,3X16

92009-1115

1
Out of stock

92009A

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009B

SCREW,TAPPING,4X20

92009-1304

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1237

1
Out of stock

92022

1

$0.53

In stock

92022A

WASHER,SIGNAL LAMP

92022-1672

1

$4.44

In stock

92069

BULB,12V 32CP(23W)

92069-055

1

$4.12

In stock

92075

DAMPER,SIGNAL LAMP

92075-1698

1

$7.60

In stock

92150

BOLT,8MM

92150-1151

1

$3.97

In stock
