1991 Kawasaki Tengai Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

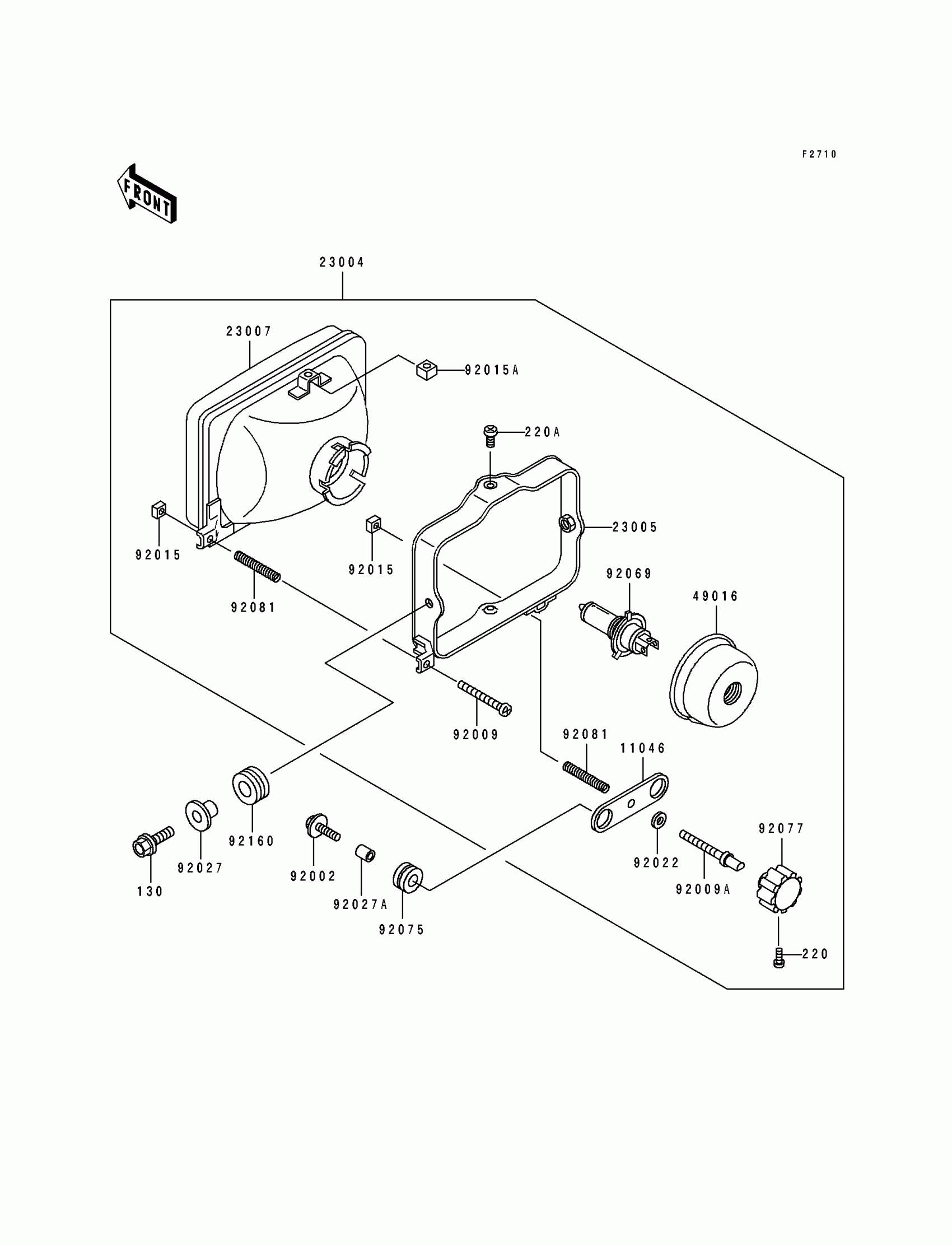

1991 Kawasaki Tengai Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,HEAD LAMP

11046-1510

1
Out of stock

23004

LAMP-HEAD

23004-1277

1

$375.97

In stock

23005

BODY-COMP-HEAD LAMP

23005-1098

1

$68.81

In stock

23007

LENS-COMP,HEAD LAMP

23007-1226

1

$110.96

In stock

49016

1

$11.85

In stock

92002

BOLT,6X25

92002-1135

1

$3.85

In stock

92009

SCREW,4X52

92009-1033

1
Out of stock

92009A

SCREW,FOCUS ADJUSTING

92009-1565

1
Out of stock

92015

1

$3.69

In stock

92015A

NUT,5MM

92015-1157

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

1

$8.16

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

1

$3.72

In stock

92077

KNOB,HEAD LAMP

92077-1010

1

$5.41

In stock

92081

1

$4.10

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock

130

BOLT-FLANGED,8X25

130B0825

1
Out of stock

220

SCREW-PAN-CROS

220B0312

1
Out of stock

220A

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock
