1991 Kawasaki Tengai Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

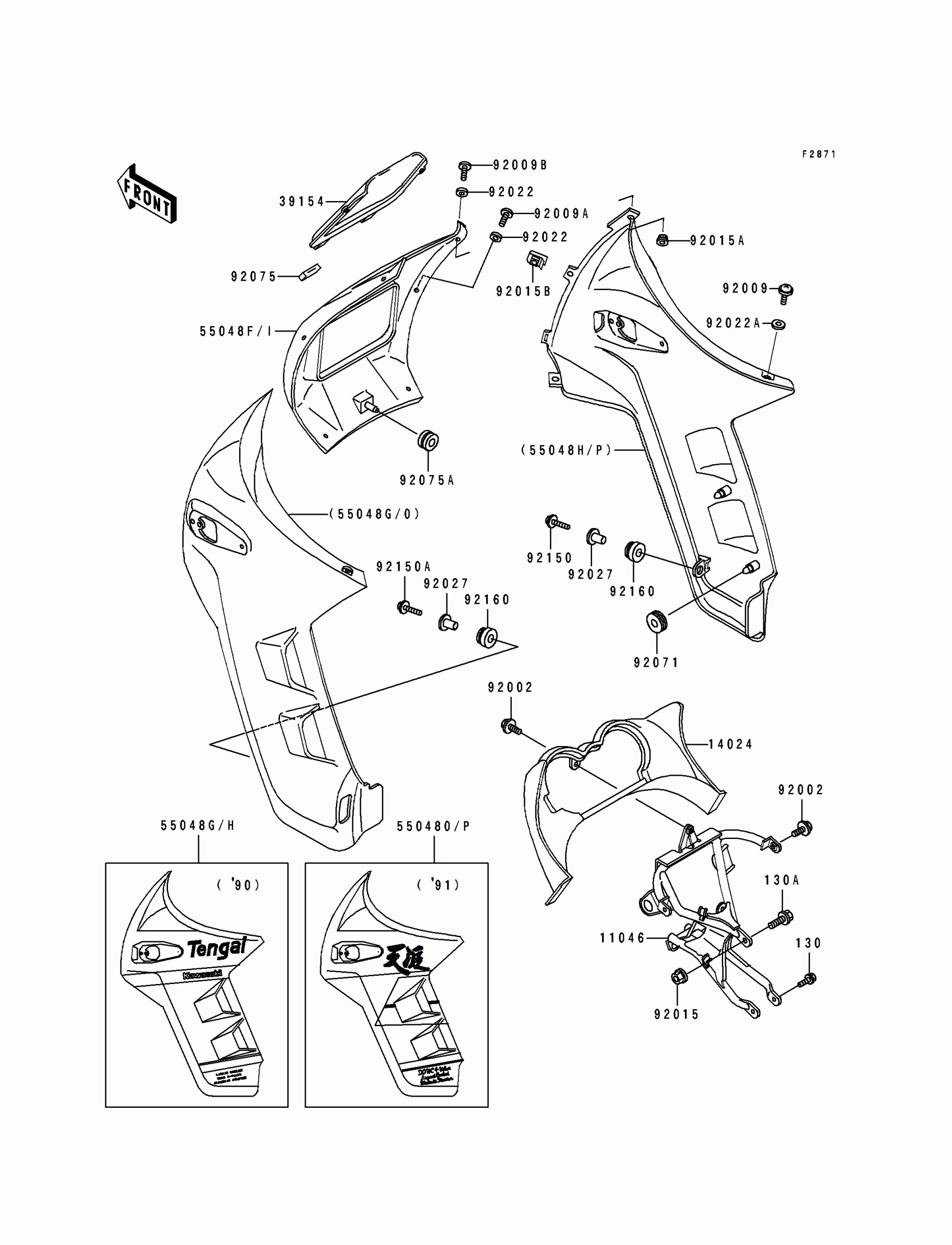

1991 Kawasaki Tengai Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,COWLING

11046-1503

1
Out of stock

14024

COVER,INNER

14024-1757

1
Out of stock

39154

WINDSHIELD

39154-1086

1
Out of stock

55048I

COWLING.,UPP,BLUE 24

55048-5375-DB

1
Out of stock

55048O

1

$478.58

In stock

55048P

1

$478.58

In stock

92002

BOLT,5X12

92002-1749

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1301

1
Out of stock

92009B

SCREW,5X14,BLACK

92009-1383

1
Out of stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,COWLING,5MM

92015-1352

1
Out of stock

92015B

NUT,5MM

92015-1710

1

$4.93

In stock

92022

1

$3.12

In stock

92022A

WASHER,6.5X16X1.0

92022-1654

1

$2.92

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

DAMPER,CARBURETOR

92075-1423

1

$2.64

In stock

92075A

DAMPER

92075-1901

1
Out of stock

92150

BOLT,FLANGED,6X30

92150-1486

1

$3.43

In stock

92150A

BOLT,FLANGED,6X25

92150-1507

1

$3.81

In stock

92160

DAMPER

92160-1164

1
Out of stock

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED,8X16

130J0816

1
Out of stock
